3-pole, motor operated, base mounted switch-diconnector with protected clamp terminals and handle for manual operation
Cutting and Protection Devices

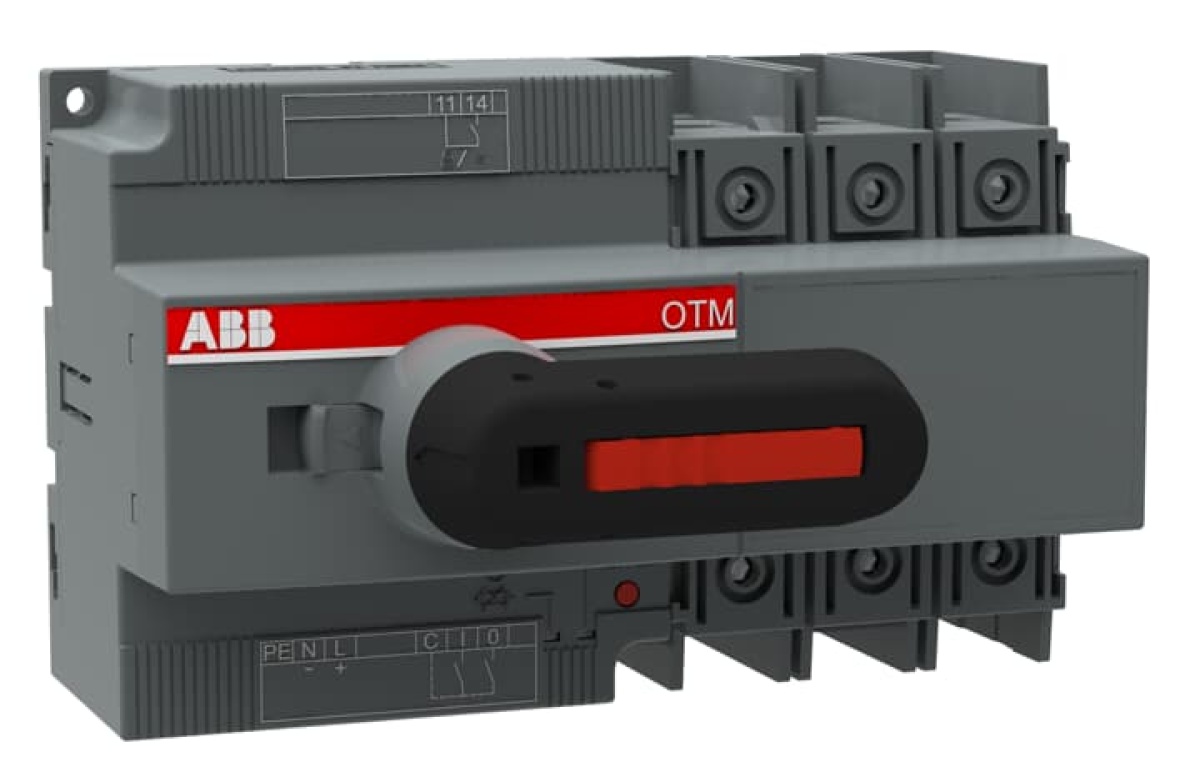

OTM100F3M230V MOTORIZED SWITCH
Nortécnica Ref:
EAN:
6417019538549
Description
Technical Information
Attributes
Width
160
Height
100
Depth
116
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
115
Number of poles
3
Rated operating voltage
750
750
Corrente condicional nominal de curto-circuito Iq
50
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
37
Corrente nominal suportável lcw atual
2.5
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
750
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
100
Switching power at 400 V
37
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
80
Degree of protection NEMA
Other
With pre-assembled cabling
-
Brands
ABB
Long Description
3-pole, motor operated, base mounted switch-diconnector with protected clamp terminals and handle for manual operation
