OTM160E4CM230C MOTORIZED C/O SWITCH, Direct mounted handle, Open transition
Cutting and Protection Devices

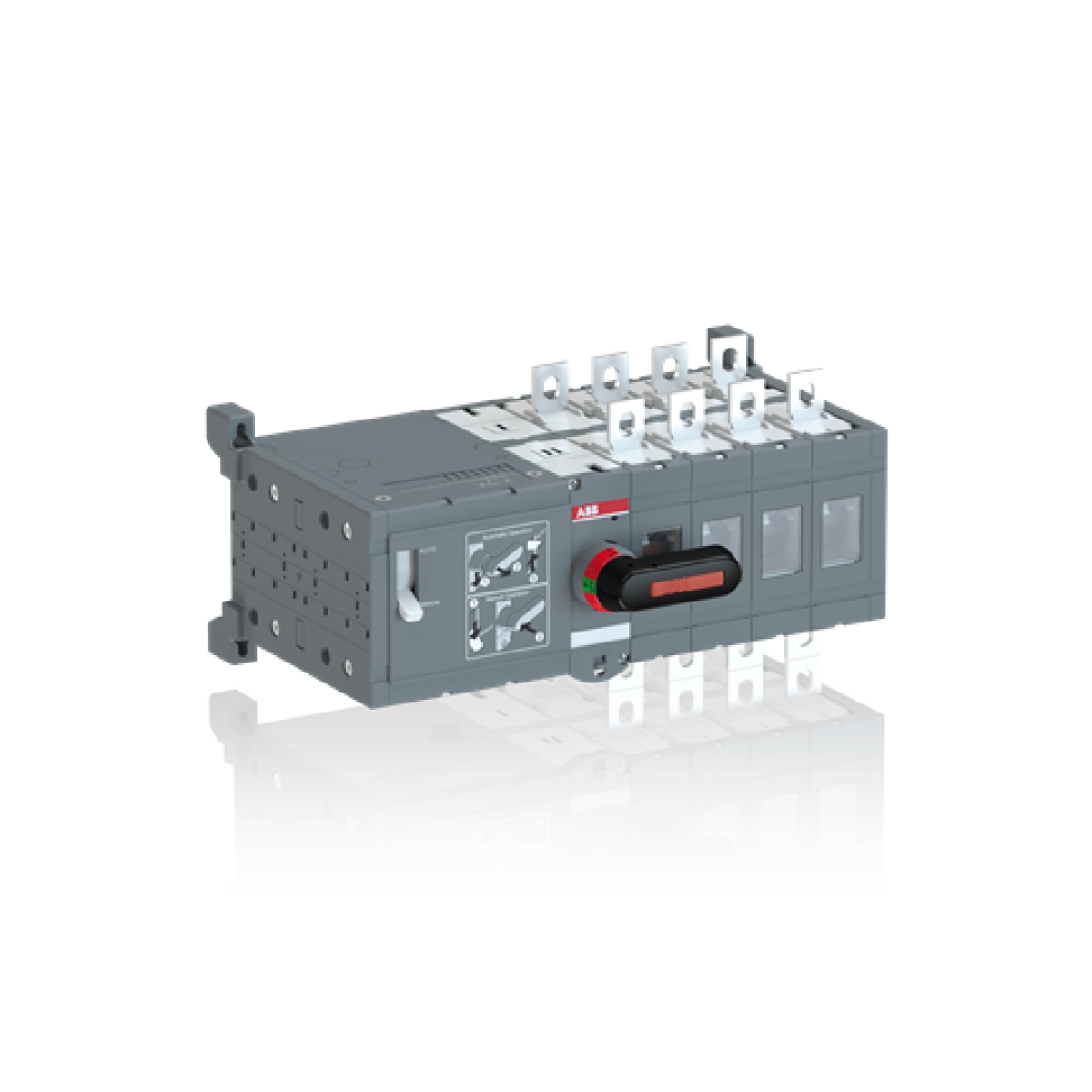

OTM160E4CM230C MOTORIZED CO SWITCH
Nortécnica Ref:
2705022848R1510
EAN:
6417019298696
Description
Technical Information
Attributes
Largura
307
Altura
150
Profundidade
197
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
-
Número de polos
4
Rated operating voltage
1000
1000
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
Yes
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
90
Corrente nominal suportável lcw atual
8
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device plug-in technique
Rated permanent current at AC-21, 400 V
160
Switching power at 400 V
90
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
160
Degree of protection NEMA
1
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
OTM160E4CM230C MOTORIZED C/O SWITCH, Direct mounted handle, Open transition
