Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Include a storage clip for the handle and spare fuses.
Cutting and Protection Devices

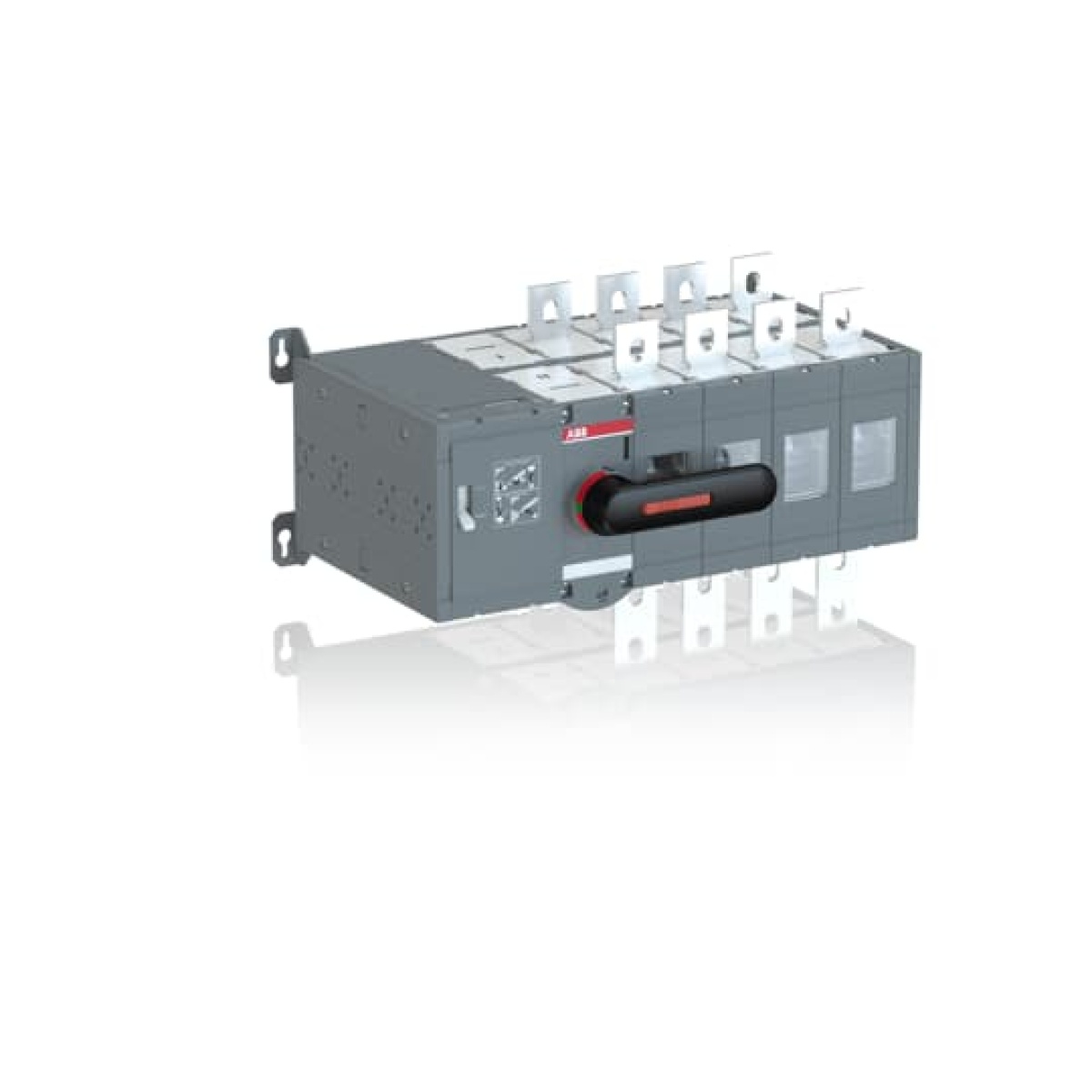

OTM800E4CM230C MOTORIZED CO SWITCH
Nortécnica Ref:
2705022872R8340
EAN:
6417019339344
Description
Technical Information
Attributes
Largura
476
Altura
250
Profundidade
299
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
-
Número de polos
4
Rated operating voltage
1000
1000
Conditioned rated short-circuit current Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
Yes
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
450
Rated short-time withstand current lcw
20
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
1000
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device plug-in technique
Rated permanent current at AC-21, 400 V
800
Switching power at 400 V
450
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
800
Degree of protection NEMA
1
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Include a storage clip for the handle and spare fuses.
