Unit generation InLine II ZLBM / ZHBM offers to you a best stability and highest safety for the current distribution network. Rated current from 160 A ... 630 A is possible. Highest safety for staff during use and maintanence is given. ABB offers to you the series in 3-pole variant , checked according EN / IEC 60947-3. The installation is more flexible and space redusing then before due to horinzontal and vertical mounting . As well an ensuring and safety mounting of power converter is guaranteed, and an exchange of NH- fuse inserts too. The serie is suitable for busbars with centre space of 185mm.
Cutting and Protection Devices

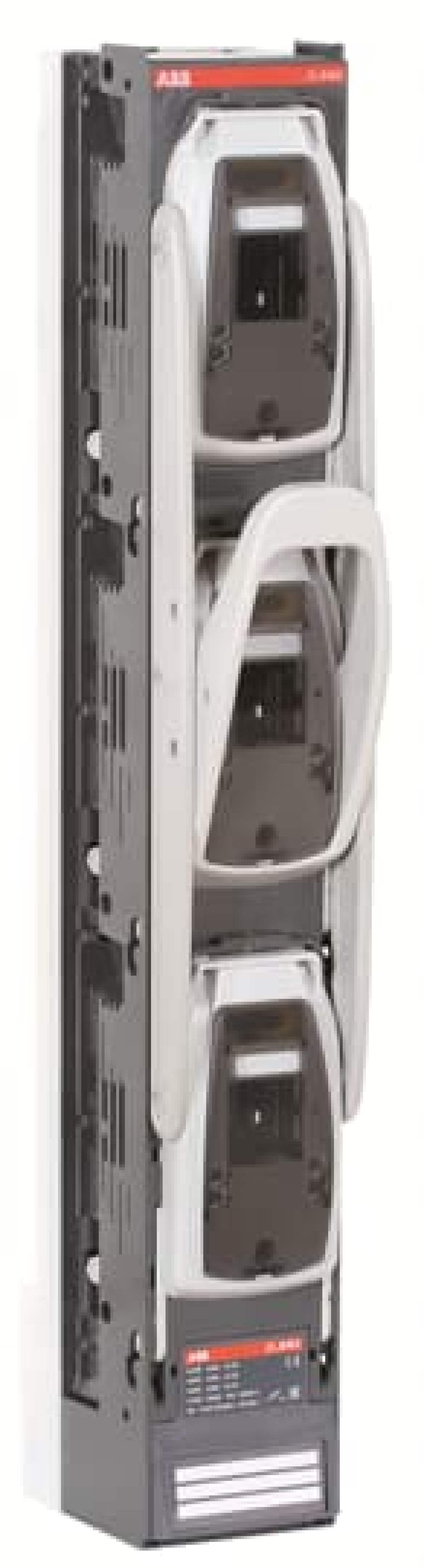

Protective devices, 662 mm x 99 mm x 185 mm
Nortécnica Ref:
EAN:
4011617429562
Description
Technical Information
Attributes
Model
Protection switch separator
Corrente permanente nominal Iu
250
Number of poles
3
Distance between rail centre, 50 mm
No
Distance between rail centre, 40 mm
No
Distance between rail centre, 60 mm
No
Corrente condicional nominal de curto-circuito Iq
-
Construction size fuse insert
NH1
Distance between rail centre, 100 mm
No
Distance between rail centre, 185 mm
Yes
Type of electrical connection of main circuit
-
Double interrupting
No
Max. rated operation voltage Ue AC
400
Release indication
None
Brands
ABB
Long Description
Unit generation InLine II ZLBM / ZHBM offers to you a best stability and highest safety for the current distribution network. Rated current from 160 A ... 630 A is possible. Highest safety for staff during use and maintanence is given. ABB offers to you the series in 3-pole variant , checked according EN / IEC 60947-3. The installation is more flexible and space redusing then before due to horinzontal and vertical mounting . As well an ensuring and safety mounting of power converter is guaranteed, and an exchange of NH- fuse inserts too. The serie is suitable for busbars with centre space of 185mm.
