S200MT miniature circuit breakers are designed especially for traction and railway applications. Acc. NF F 16-101/102 the product range S200MT is classified with Exigence 3, enabling the use in all parts of the vehicle. They are current limiting and have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200MT comply with IEC/EN 60898-1 and IEC/EN 609 47-2. All system pro M compact accessories can be used. Including the bottom-fitting auxiliary contact S2C-Hxx providing the possibility of 50% space saving and the creation of group signals.
Cutting and Protection Devices

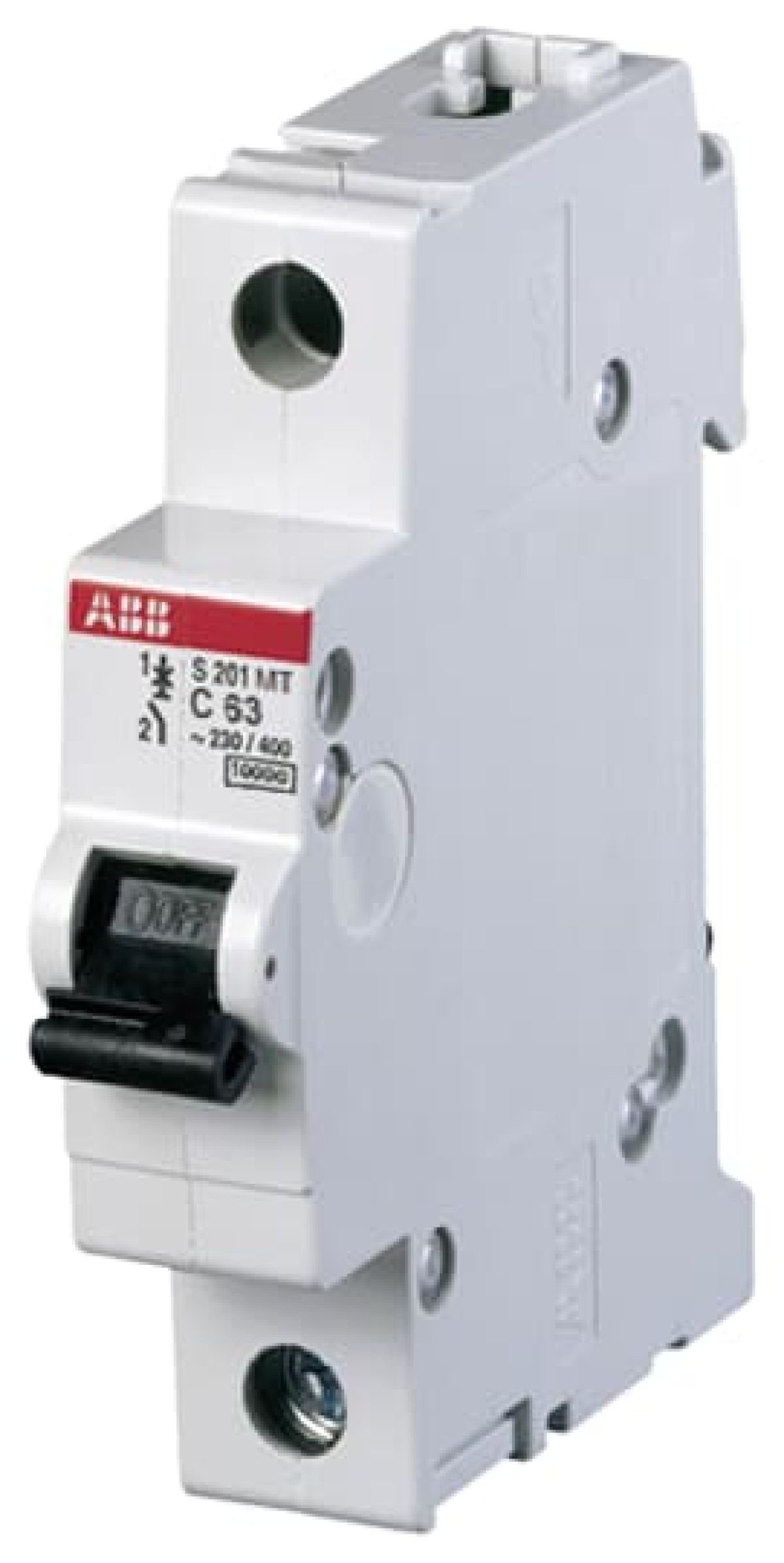

S201MT-K2 Miniature Circuit Breaker - 1P - K - 2 A
Nortécnica Ref:
EAN:
4016779765602
Description
Technical Information
Attributes
Voltage type
AC/DC
Profundidade incorporada
69
Corrente nominal especificada
2
Tensão especificada de funcionamento
230
Frequency
50
60
Release characteristic
K
Tensão nominal de isolamento Ui
440
Classe de limitação de energia I²t
3
Categoria de sobretensão
3
Grau de poluição
3
Largura em número de módulos
1
Explosion-proof
No
Potência dissipada
1.7
Degree of protection IP
IP20
Número de polos protegidos
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
1
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
10
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
10
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
15
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
-
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
