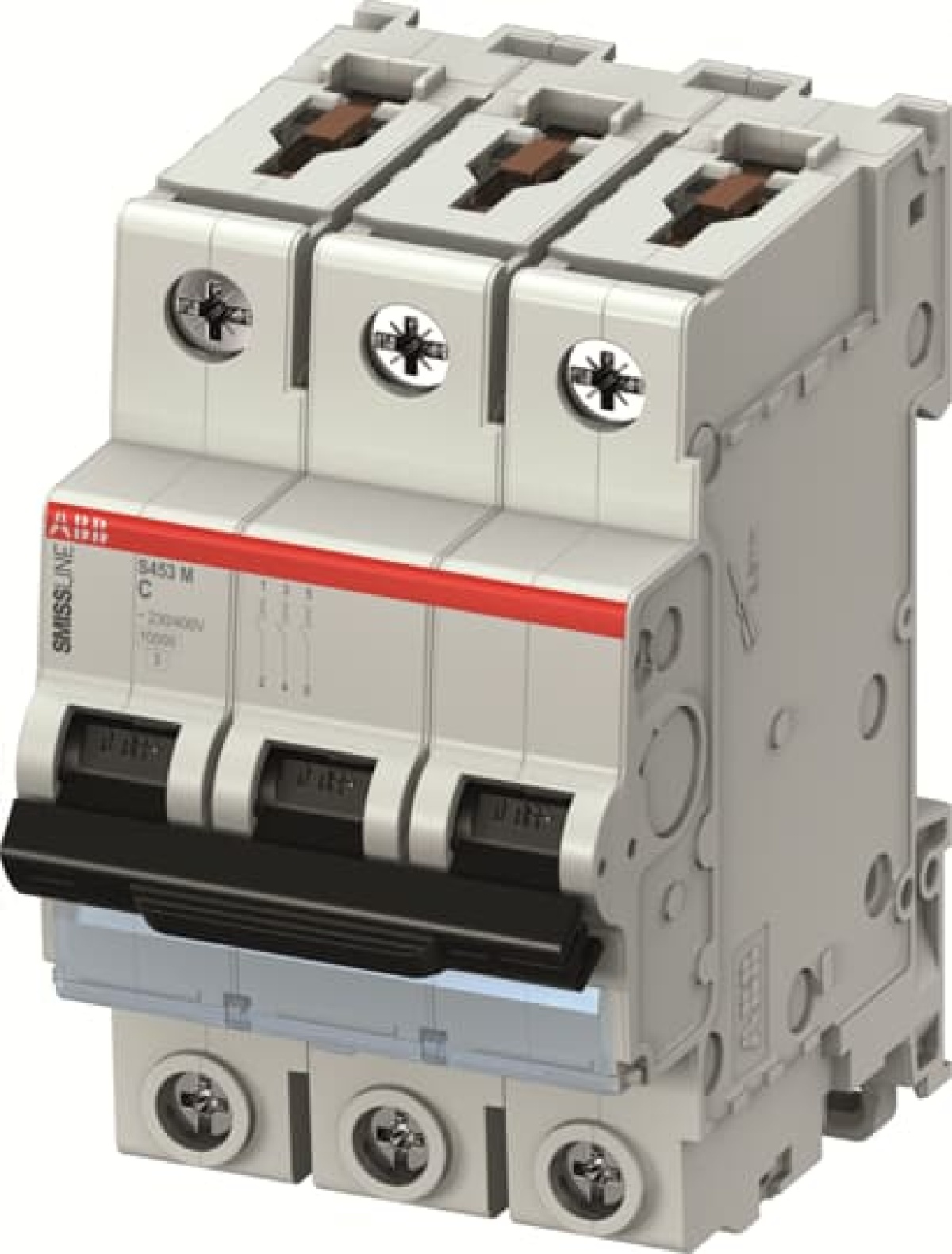

S453M-C6 Miniature Circuit Breaker 3 Poles C Characteristic 6A 10000 ~230/400V
Cutting and Protection Devices
S453M-C6 Miniature Circuit Breaker 3 Poles C Characteristic 6A 10000 230400V
Nortécnica Ref:
EAN:
7612270107063
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
75
Rated current
6
Rated voltage
415
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
3
Explosion-proof
No
Power loss
5.166
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25
Rated impulse withstand voltage Uimp
4
Brands
ABB
Descrição Longa
S453M-C6 Miniature Circuit Breaker 3 Poles C Characteristic 6A 10000 ~230/400V
