S801HV-K1.6 1 Pole K Characteristic 1.6A 1.5 kA 580/1000 VAC High Performance Circuit Breaker HPCB
Cutting and Protection Devices

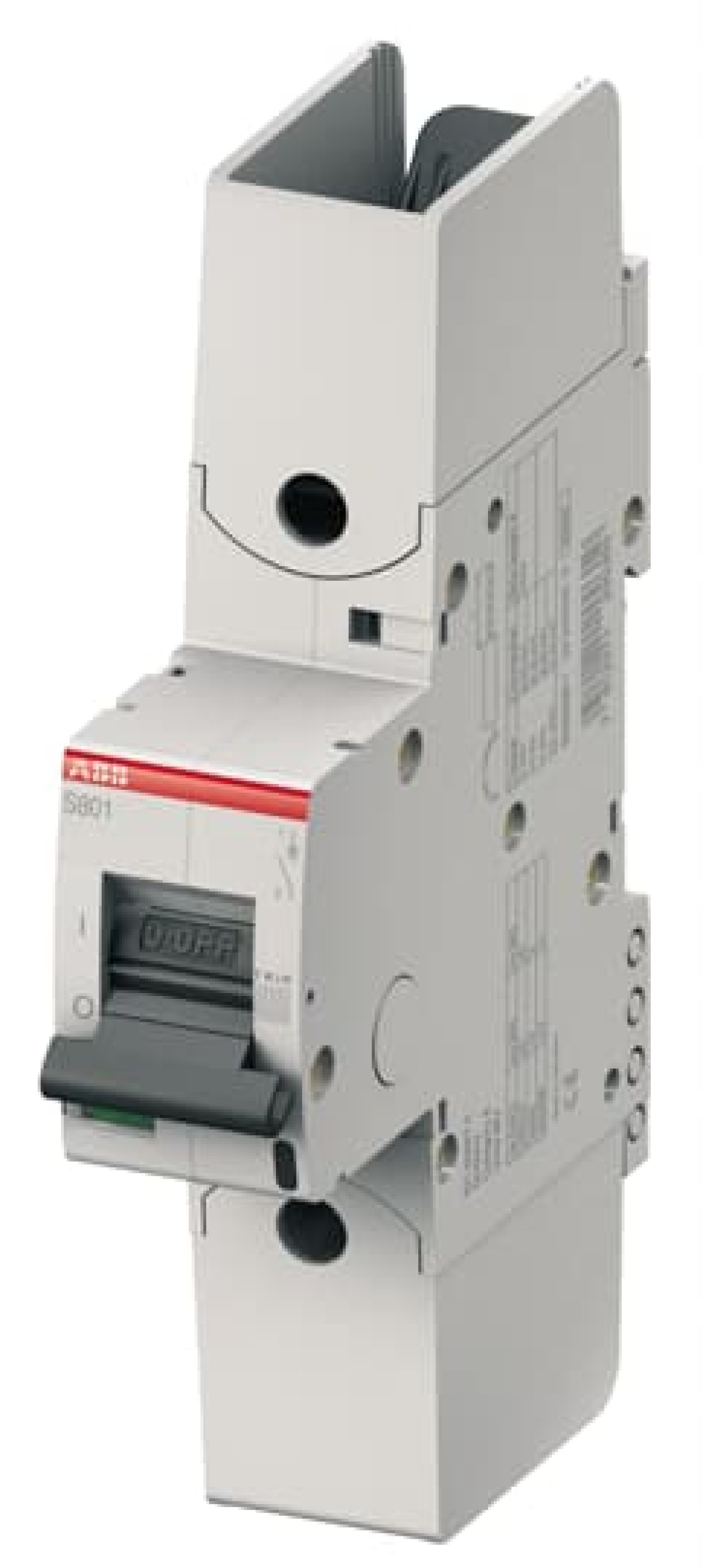

S801HV-K1.6 High Performance MCB
Nortécnica Ref:
EAN:
7612271502423
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
82.5
Rated current
1.6
EF000228
-
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
1000
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
1.5
Explosion-proof
No
Power loss
2.9
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
8
Brands
ABB
Descrição Longa
S801HV-K1.6 1 Pole K Characteristic 1.6A 1.5 kA 580/1000 VAC High Performance Circuit Breaker HPCB
