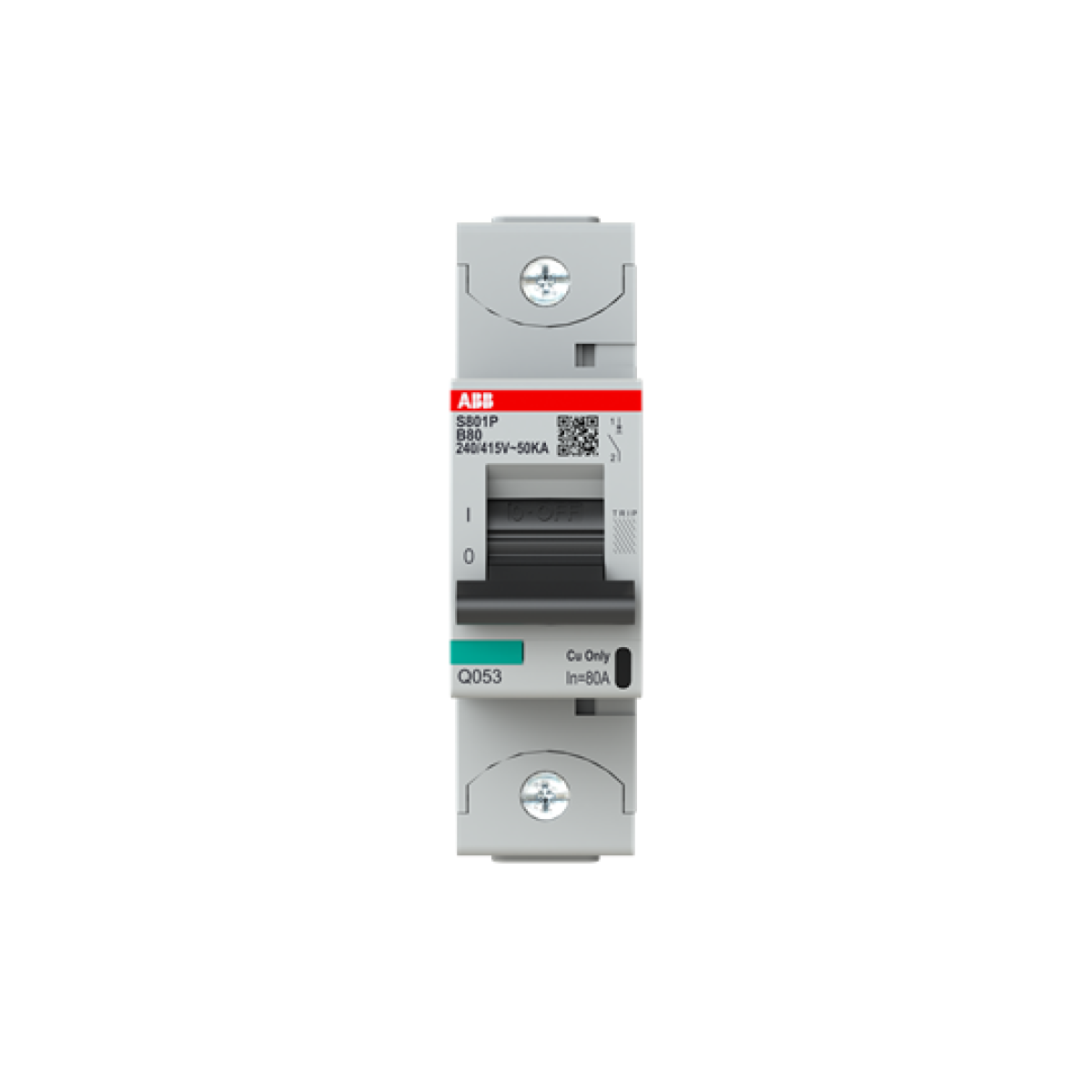

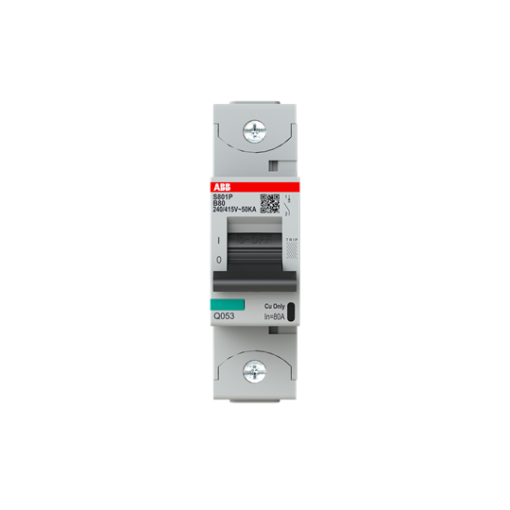

S801P-B80 High Performance Circuit Breaker. B characteristic. 50kA, 80A, 1P
Cutting and Protection Devices
S801P-B80 High Performance Circuit Breaker. B characteristic. 50kA, 80A, 1P
Nortécnica Ref:
EAN:
7612271516833
Description
Technical Information
Attributes
Voltage type
AC/DC
Built-in depth
82.5
Rated current
80
Rated voltage
230
Frequency
50
60
Release characteristic
B
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
1.5
Explosion-proof
-
Power loss
6.4
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
70
Connectable conductor cross section multi-wired
1
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6
Rated impulse withstand voltage Uimp
6
Brands
ABB
Descrição Longa
S801P-B80 High Performance Circuit Breaker. B characteristic. 50kA, 80A, 1P
