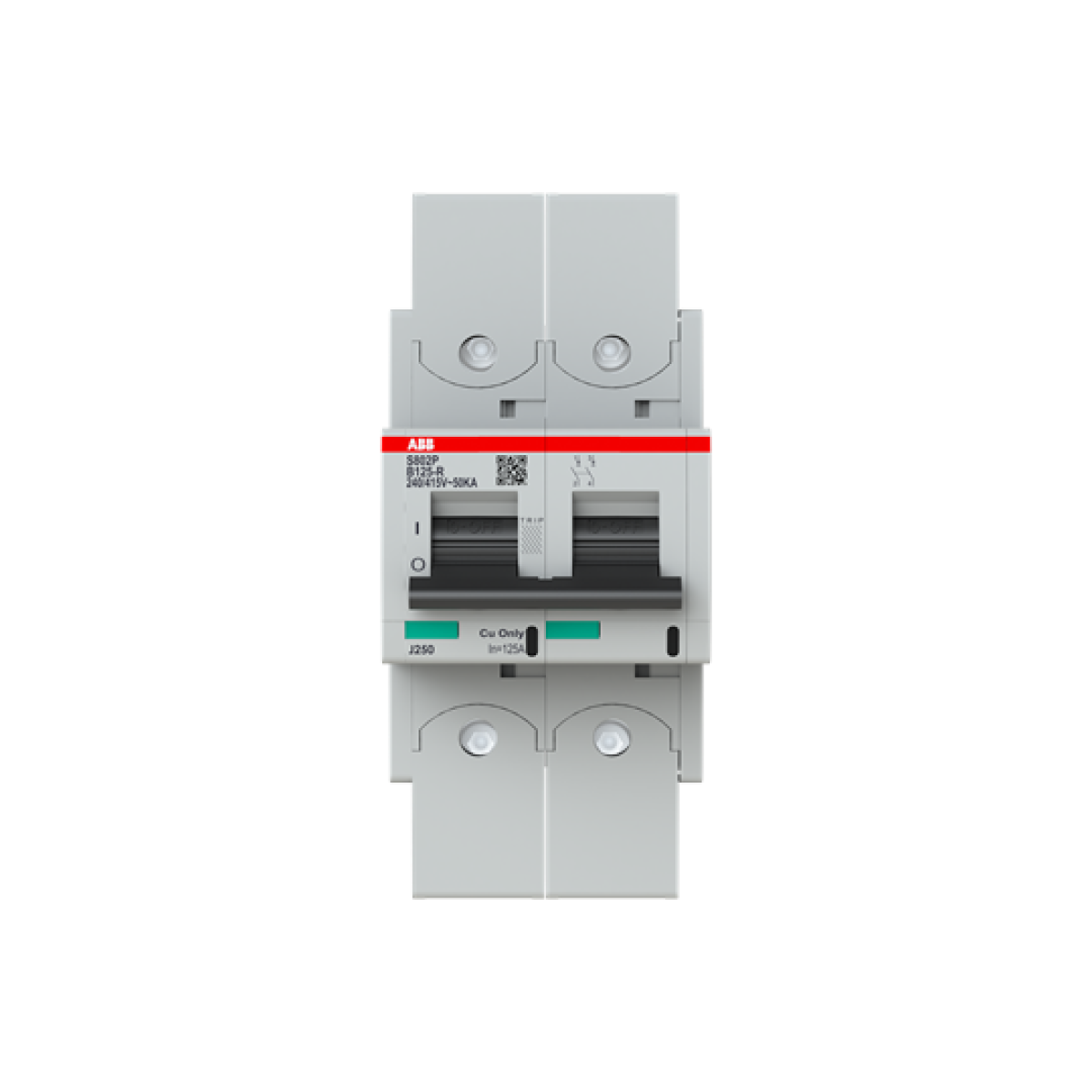

S802P-B125-R High Performance Circuit Breaker with ring tongue terminal. B characteristic. 50kA, 125A, 2P
Cutting and Protection Devices
S802P-B125-R High Performance Circuit Breaker with ring tongue terminal. B characteristic. 50kA, 125A, 2P
Nortécnica Ref:
EAN:
7612271517670
Description
Technical Information
Attributes
Voltage type
AC/DC
Built-in depth
82.5
Rated current
125
EF000228
400
Frequency
50
60
Release characteristic
B
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
3.5
Explosion-proof
-
Power loss
18.8
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
70
Connectable conductor cross section multi-wired
1
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Rated impulse withstand voltage Uimp
6
Brands
ABB
Long Description
S802P-B125-R High Performance Circuit Breaker with ring tongue terminal. B characteristic. 50kA, 125A, 2P
