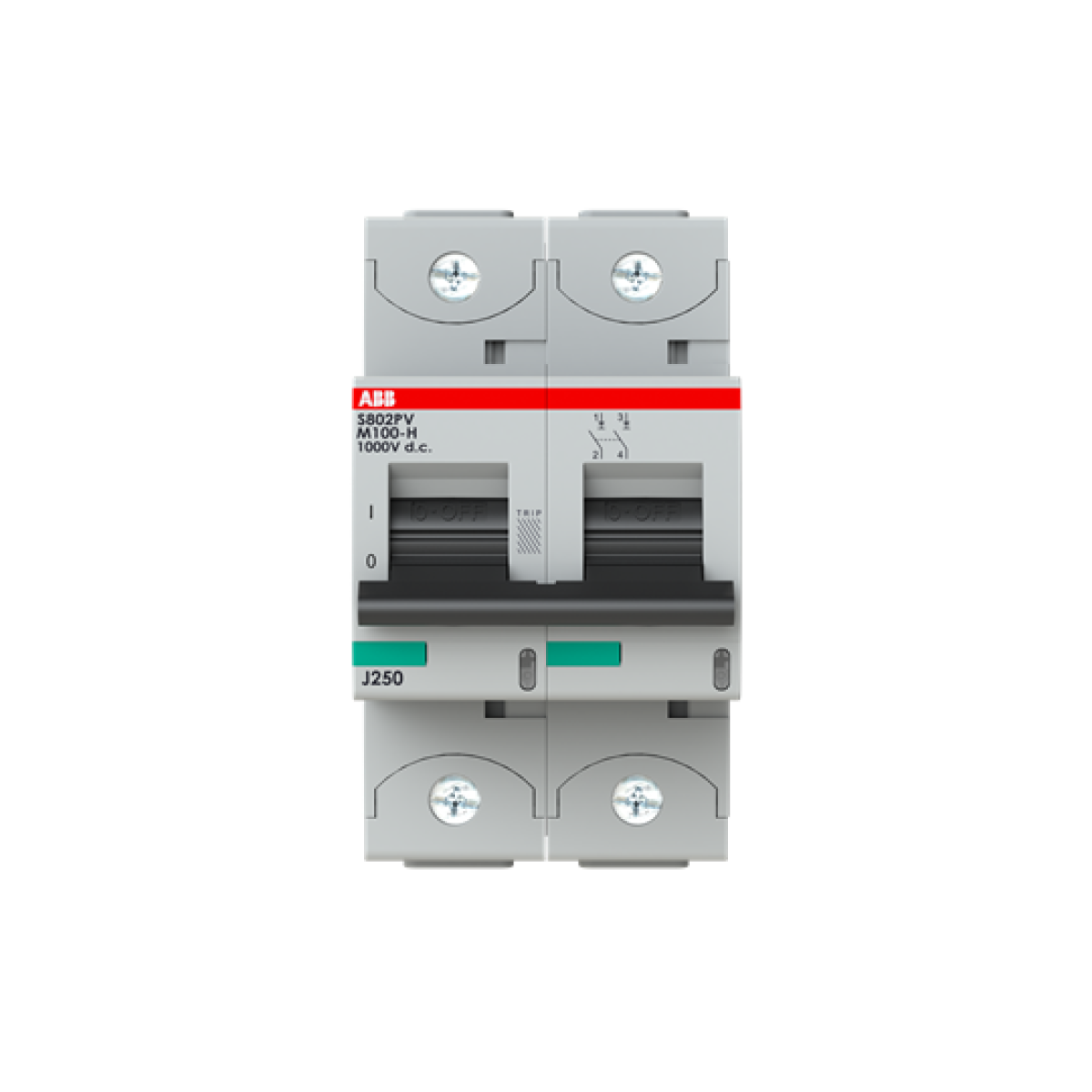

The S802PV-M100-H is a 2-pole polarized disconnector for photovoltaics. It can be used for currents up to 100A and has a rated operational voltage of 1000V DC by only 54mm width. The rated short-term withstand current Icw is 1.5kA. The S802PV-M100-H complies with IEC/EN 60947-3. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-M100-H more comfortable.
Cutting and Protection Devices
S802PV-M100-H
Nortécnica Ref:
EAN:
7612271419301
Description
Technical Information
Attributes
Width
54
Height
95
Depth
82.5
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
-
Número de contatos auxiliares como contato normalmente fechado
-
Corrente permanente nominal Iu
100
Number of poles
2
Rated operating voltage
-
-
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
3
Degree of protection IP, front side
-
Número de contatos auxiliares como contato de comutação
-
Number of switches
8500
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
-
Version as emergency stop installation
No
Type of control element
-
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
1.5
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
-
Motor drive optional
No
Voltage release optional
Yes
Device construction
-
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
ABB
