S802S-D1.6 2 Poles D Characteristic 1.6A 6 kA 400/690 VAC High Performance Circuit Breaker HPCB
Cutting and Protection Devices

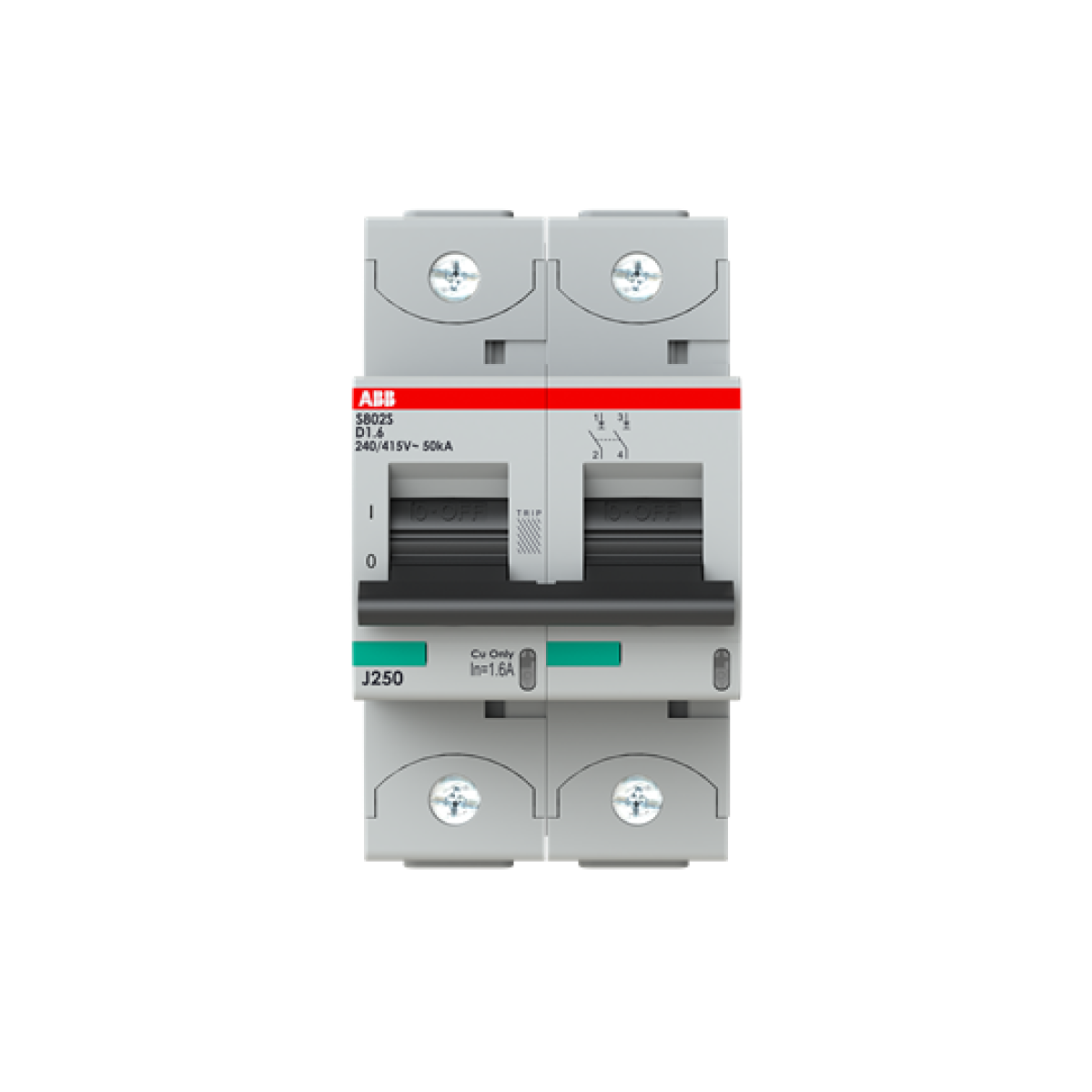

S802S-D1.6 High Performance MCB
Nortécnica Ref:
EAN:
7612271499495
Description
Technical Information
Attributes
Voltage type
AC/DC
Built-in depth
82.5
Rated current
1.6
Rated voltage
400
Frequency
50
60
Release characteristic
D
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
3
Explosion-proof
No
Power loss
5.8
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Rated impulse withstand voltage Uimp
8
Brands
ABB
Descrição Longa
S802S-D1.6 2 Poles D Characteristic 1.6A 6 kA 400/690 VAC High Performance Circuit Breaker HPCB
