S802U-K15 2 Pole K Characteristic 15A 50kA 240/415VAC High Performance Circuit Breaker HPCB
Cutting and Protection Devices

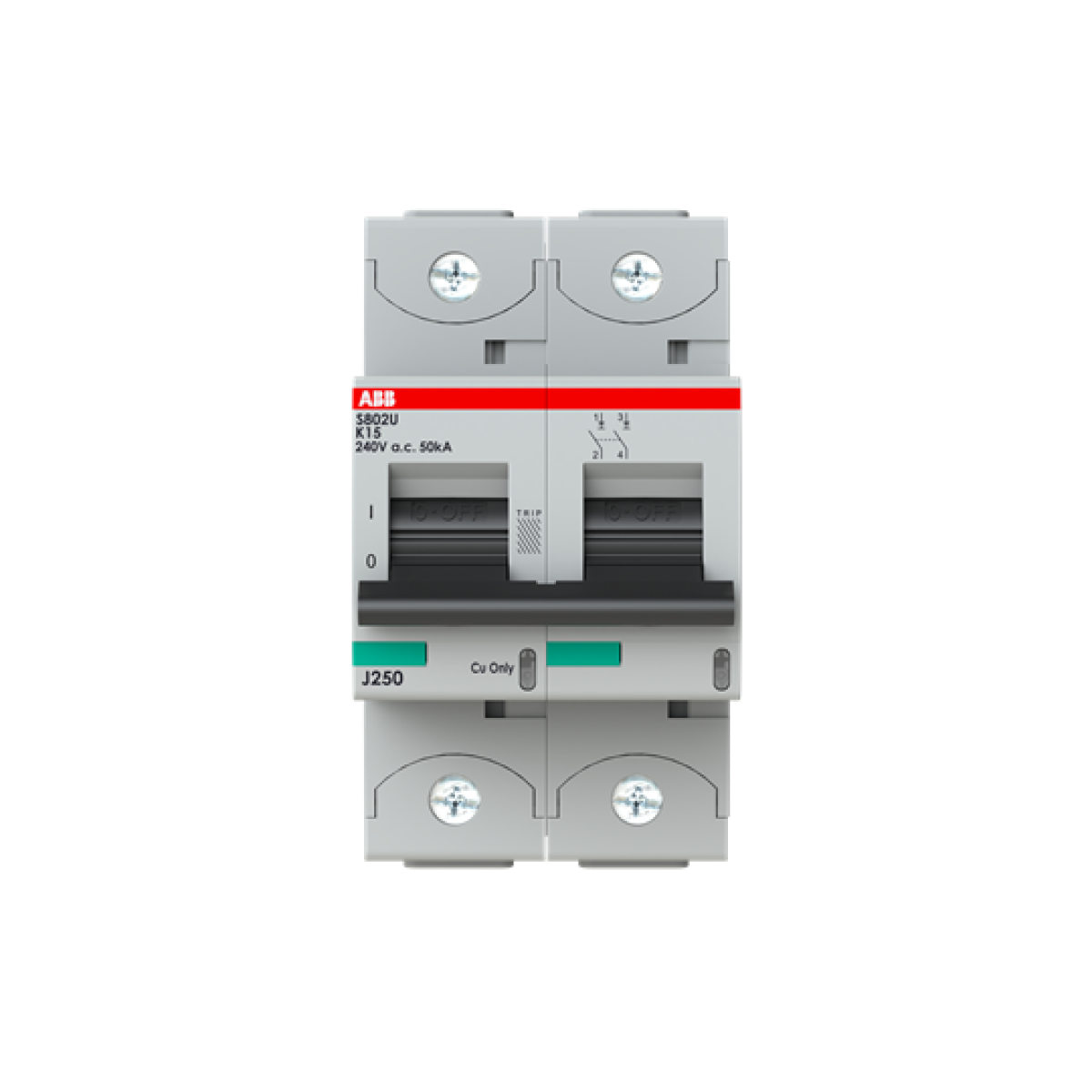

S802U-K15 High Performance MCB
Nortécnica Ref:
EAN:
7612271214050
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
82.5
Rated current
15
EF000228
-
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
3
Explosion-proof
No
Power loss
2.7
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Rated impulse withstand voltage Uimp
8
Brands
ABB
Long Description
S802U-K15 2 Pole K Characteristic 15A 50kA 240/415VAC High Performance Circuit Breaker HPCB
