S803HV-K5 3 Poles K Characteristic 5A 1.5 kA 580/1000 VAC High Performance Circuit Breaker HPCB
Cutting and Protection Devices

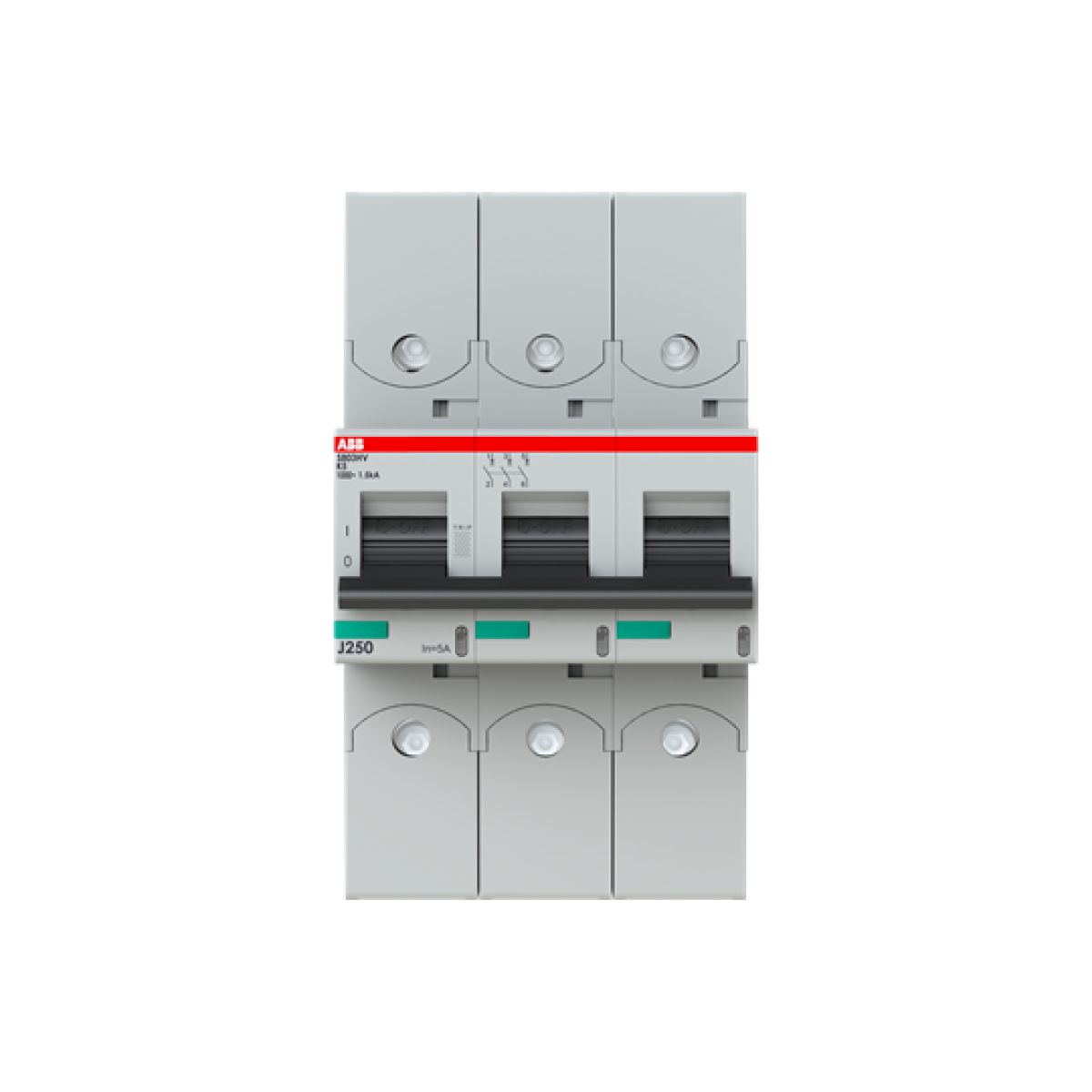

S803HV-K5 High Performance MCB
Nortécnica Ref:
EAN:
7612271501389
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
82.5
Rated current
5
EF000228
-
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
1000
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
4.5
Explosion-proof
No
Power loss
4.5
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
8
Brands
ABB
Descrição Longa
S803HV-K5 3 Poles K Characteristic 5A 1.5 kA 580/1000 VAC High Performance Circuit Breaker HPCB
