The S803HV-SCL32-SR is a self-resetting short-circuit limiter. It provides full selectivity for the downstream S803HV-K High Performance MCBs. In the event of a downstream short circuit, the S803HV-SCL-SR will react selective to the group of S803HV-K MCBs, and only the faulty circuit will trip, while all other branches in the group protection remain operative. After the downstream device has tripped, the limiter contacts re-close automatically. In combination of S803HV-SCL-SR and S803HV-K the maximum breaking capacity is 15kA at 1000V AC.
Cutting and Protection Devices

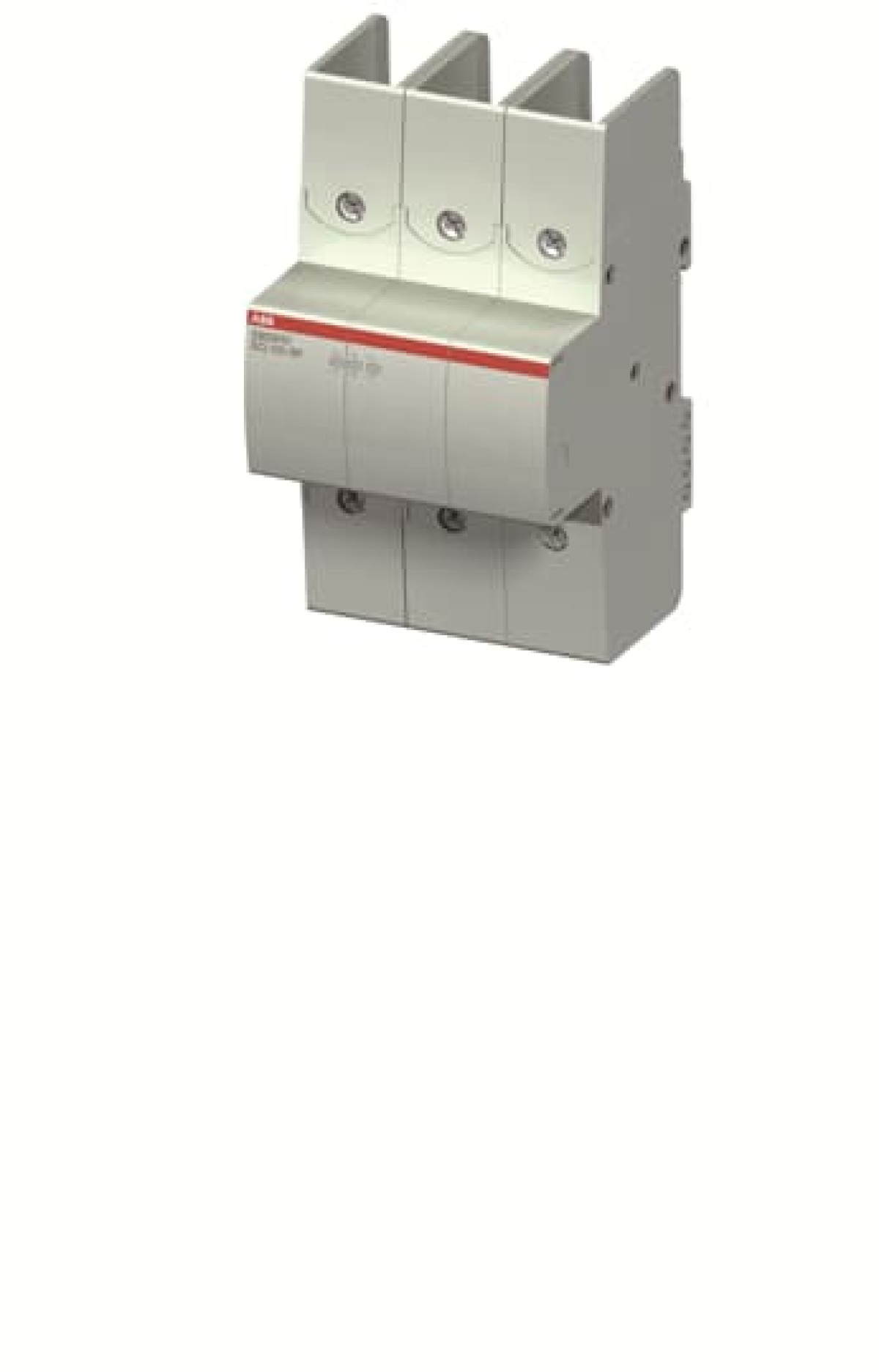

S803HV-SCL32-SR
Nortécnica Ref:
EAN:
7612271437008
Description
Technical Information
Attributes
Width
81
Height
142
Depth
82.5
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
-
Número de contatos auxiliares como contato normalmente fechado
-
Corrente permanente nominal Iu
32
Number of poles
3
Rated operating voltage
-
-
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
-
Número de contatos auxiliares como contato de comutação
-
Number of switches
-
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
-
Version as emergency stop installation
No
Type of control element
-
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
1.5
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
-
Motor drive optional
No
Voltage release optional
Yes
Device construction
-
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
The S803HV-SCL32-SR is a self-resetting short-circuit limiter. It provides full selectivity for the downstream S803HV-K High Performance MCBs. In the event of a downstream short circuit, the S803HV-SCL-SR will react selective to the group of S803HV-K MCBs, and only the faulty circuit will trip, while all other branches in the group protection remain operative. After the downstream device has tripped, the limiter contacts re-close automatically. In combination of S803HV-SCL-SR and S803HV-K the maximum breaking capacity is 15kA at 1000V AC.
