The S803S-D8 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 8 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-D8 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-D8 more comfortable. Due to the fast arc extinction of S803S-D8 your application will be secured.
Cutting and Protection Devices

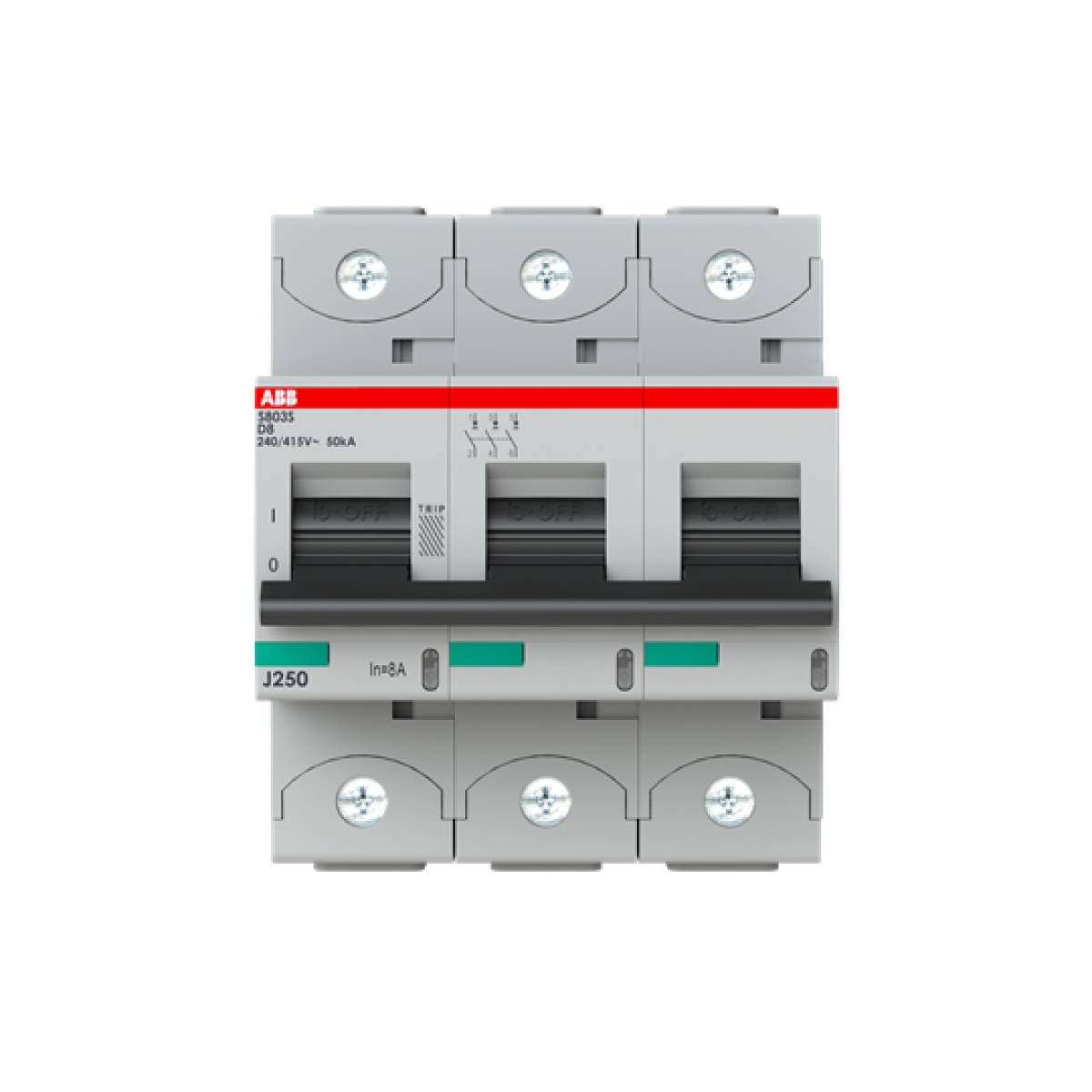

S803S-D8 High Performance MCB
Nortécnica Ref:
EAN:
7612271411428
Description
Technical Information
Attributes
Voltage type
AC/DC
Profundidade incorporada
82.5
Corrente nominal especificada
8
Tensão especificada de funcionamento
400
Frequency
50
60
Release characteristic
D
Tensão nominal de isolamento Ui
690
Classe de limitação de energia I²t
3
Categoria de sobretensão
4
Grau de poluição
3
Largura em número de módulos
4.5
Explosion-proof
No
Potência dissipada
4.5
Degree of protection IP
IP20
Número de polos protegidos
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
3
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
25
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
50
Tensão estipulada suportável ao choque Uimp
8
Brands
ABB
Long Description
The S803S-D8 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 8 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-D8 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-D8 more comfortable. Due to the fast arc extinction of S803S-D8 your application will be secured.
