The S803S-UCB20-R is a 1-pole High Performance Circuit breaker for DC application with B-characteristic, with ring tongue terminal and a rated current of 20 A. It is a current limiting device with a maximum breaking capacity of 50kA at 750V. It can be used for voltages up to 750V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-UCB20-R complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-UCB20-R more comfortable. Due to the fast arc extinction of S803S-UCB20-R your application will be secured.
Cutting and Protection Devices

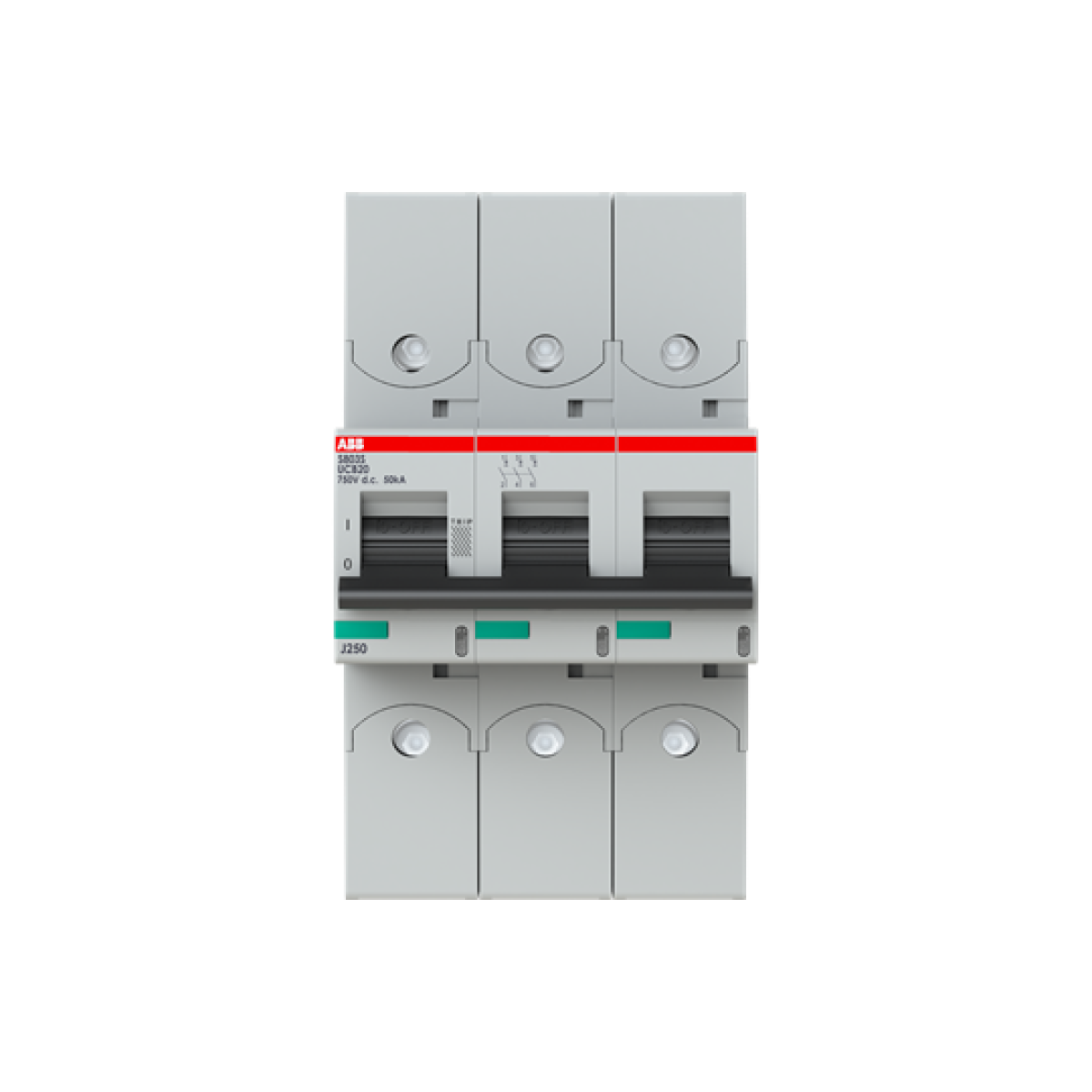

S803S-UCB20-R High Performance MCB
Nortécnica Ref:
EAN:
7612271210502
Description
Technical Information
Attributes
Voltage type
DC
Profundidade incorporada
82.5
Corrente nominal especificada
20
Tensão especificada de funcionamento
-
Frequency
0
0
Release characteristic
Other
Tensão nominal de isolamento Ui
1500
Classe de limitação de energia I²t
3
Categoria de sobretensão
3
Grau de poluição
2
Largura em número de módulos
4.5
Explosion-proof
No
Potência dissipada
10.5
Degree of protection IP
IP20
Número de polos protegidos
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
3
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
-
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
-
Tensão estipulada suportável ao choque Uimp
8
Brands
ABB
