The S804C-C16 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804C-C16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804C-C16 more comfortable. Due to the fast arc extinction of S804C-C16 your application will be secured.
Cutting and Protection Devices

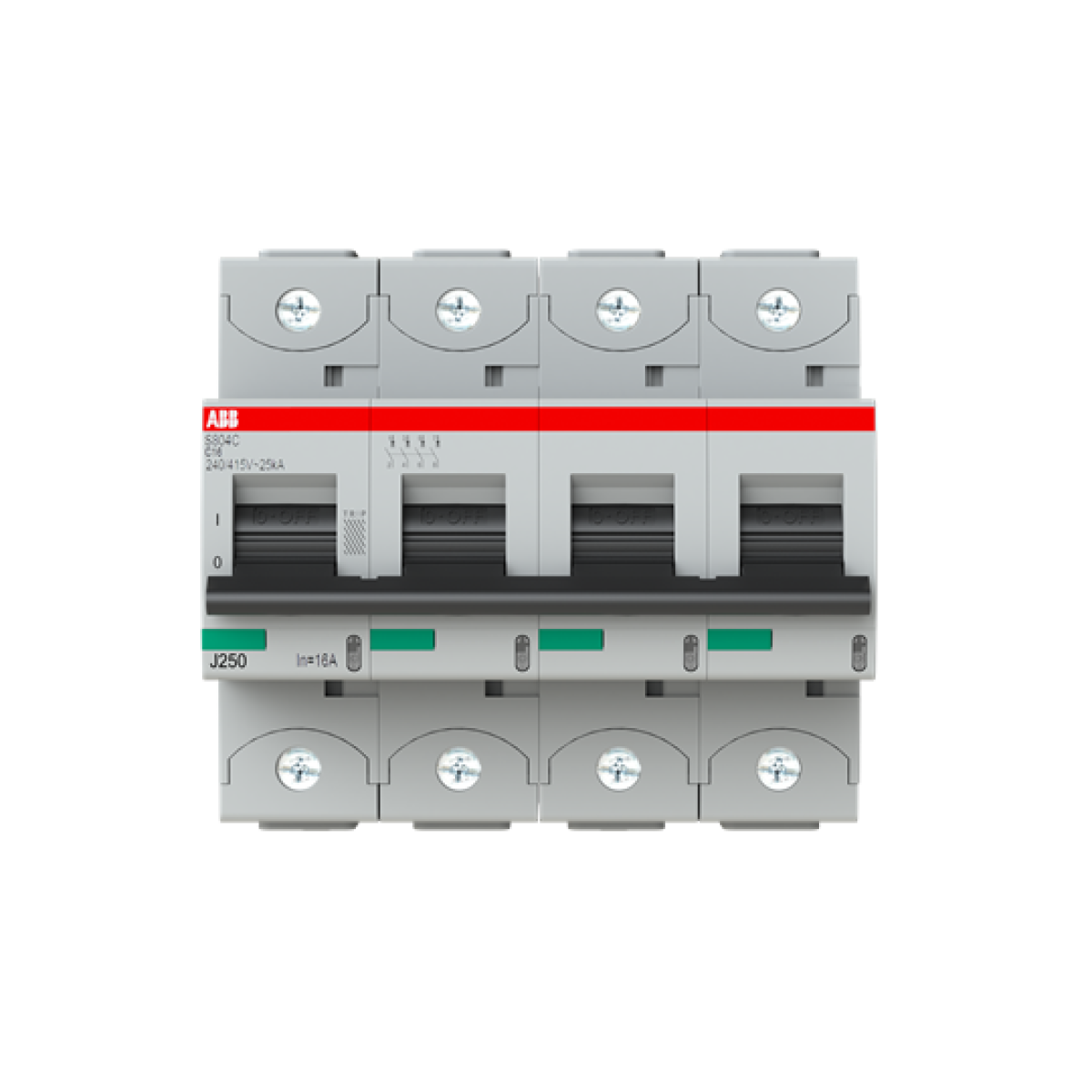

S804C-C16 High Performance MCB
Nortécnica Ref:
272CCS884001R0164
EAN:
7612271212476
Description
Technical Information
Attributes
Voltage type
AC/DC
Profundidade incorporada
82.5
Corrente nominal especificada
16
Tensão especificada de funcionamento
400
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
500
Classe de limitação de energia I²t
3
Categoria de sobretensão
4
Grau de poluição
3
Largura em número de módulos
6
Explosion-proof
No
Potência dissipada
12.4
Degree of protection IP
IP20
Número de polos protegidos
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Número de polos total
4
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V
15
Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V
-
Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V
25
Tensão estipulada suportável ao choque Uimp
8
Brands
ABB
Descrição Longa
The S804C-C16 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804C-C16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804C-C16 more comfortable. Due to the fast arc extinction of S804C-C16 your application will be secured.
