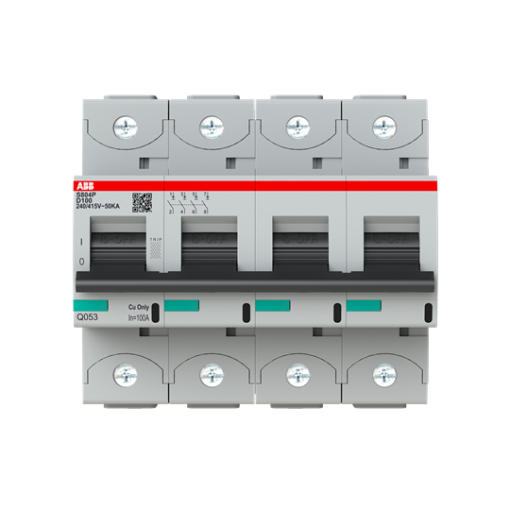

S804P-D100 High Performance Circuit Breaker. D Characteristic. 50kA, 100A, 4P
Cutting and Protection Devices
S804P-D100 High Performance Circuit Breaker. D Characteristic. 50kA, 100A, 4P
Nortécnica Ref:
272CCG001248R0001
EAN:
7612271517175
Description
Technical Information
Attributes
Voltage type
AC/DC
Built-in depth
82.5
Rated current
100
Rated voltage
400
Frequency
50
60
Release characteristic
D
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
6
Explosion-proof
-
Power loss
32
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
70
Connectable conductor cross section multi-wired
1
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Rated impulse withstand voltage Uimp
6
Brands
ABB
Descrição Longa
S804P-D100 High Performance Circuit Breaker. D Characteristic. 50kA, 100A, 4P
