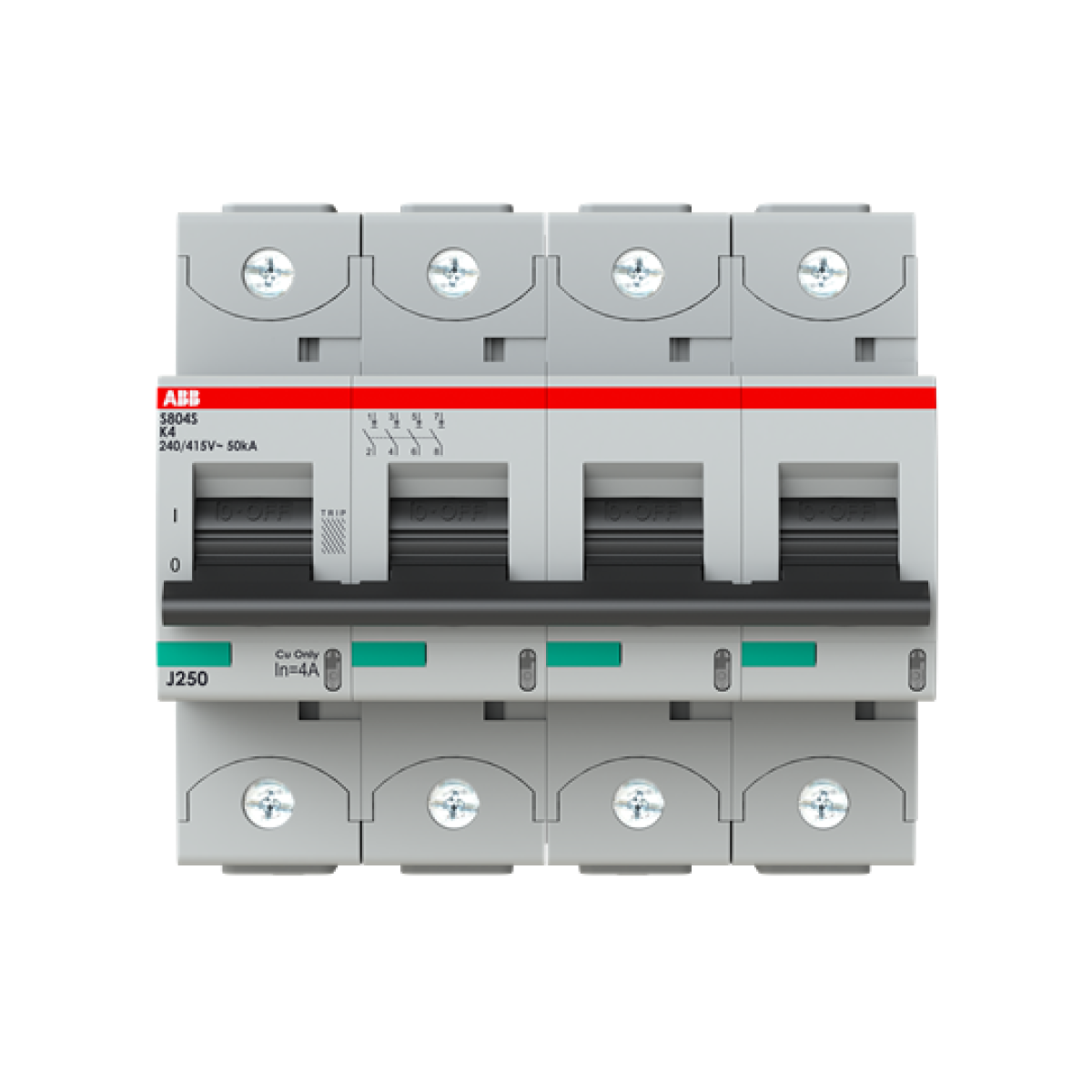

S804S-K4 4 Poles K Characteristic 4A 6 kA 400/690 VAC High Performance Circuit Breaker HPCB
Cutting and Protection Devices
S804S-K4 High Performance MCB
Nortécnica Ref:
EAN:
7612271500337
Description
Technical Information
Attributes
Voltage type
AC/DC
Built-in depth
82.5
Rated current
4
EF000228
400
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
6
Explosion-proof
No
Power loss
8
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Rated impulse withstand voltage Uimp
8
Brands
ABB
Descrição Longa
S804S-K4 4 Poles K Characteristic 4A 6 kA 400/690 VAC High Performance Circuit Breaker HPCB
