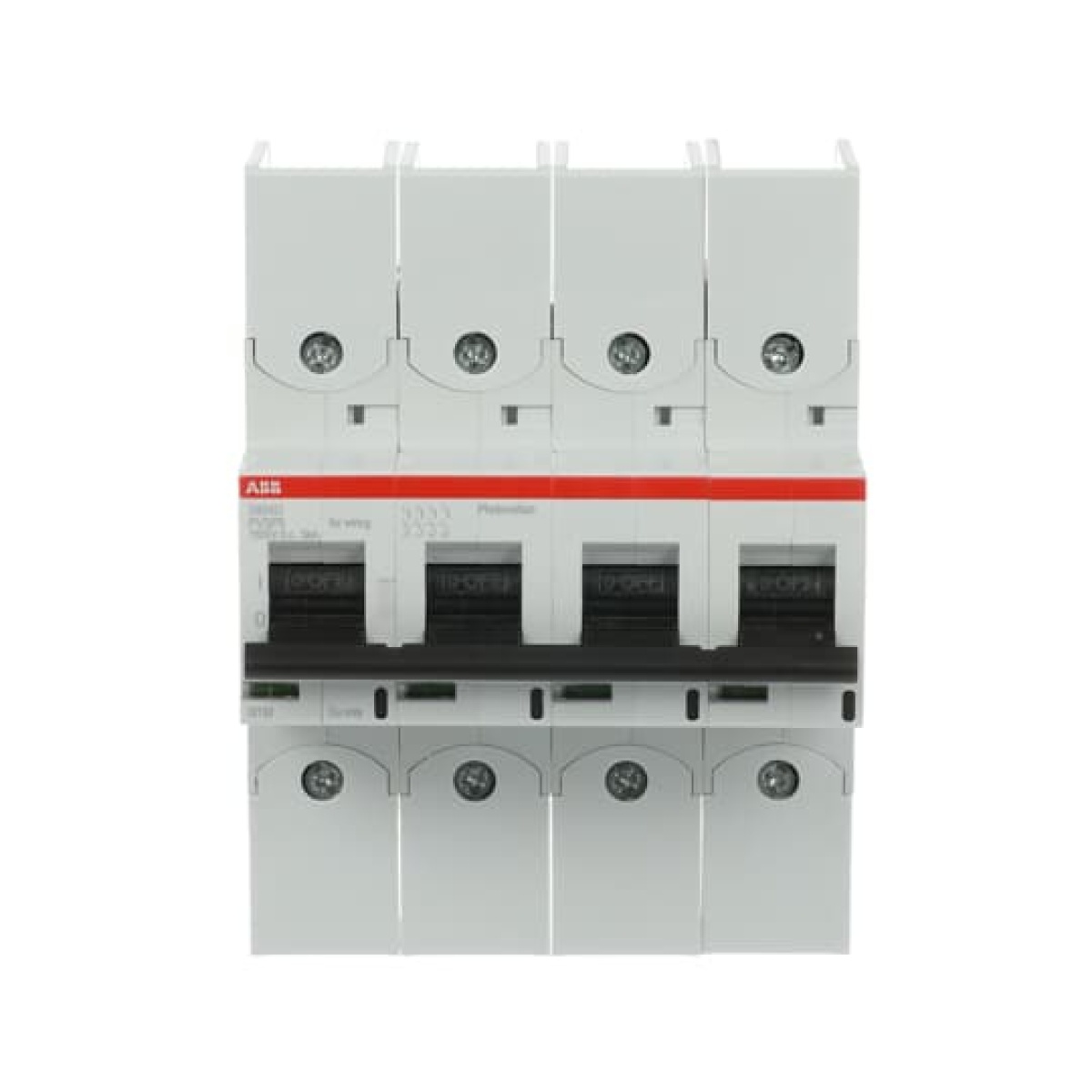

High perform. miniature circuit breaker 4-pole S800 tested acc. to UL489B 1500V DC 5A
Cutting and Protection Devices

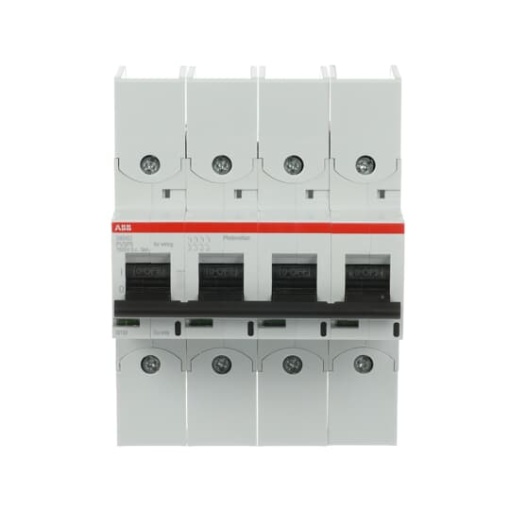

S804U-PVSP5 High Performance MCB
Nortécnica Ref:
EAN:
7612271468866
Description
Technical Information
Attributes
Voltage type
DC
Built-in depth
82.5
Rated current
5
EF000228
-
Frequency
0
0
Release characteristic
B
Rated insulation voltage Ui
1500
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
6
Explosion-proof
No
Power loss
6
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
8
Brands
ABB
Long Description
High perform. miniature circuit breaker 4-pole S800 tested acc. to UL489B 1500V DC 5A
