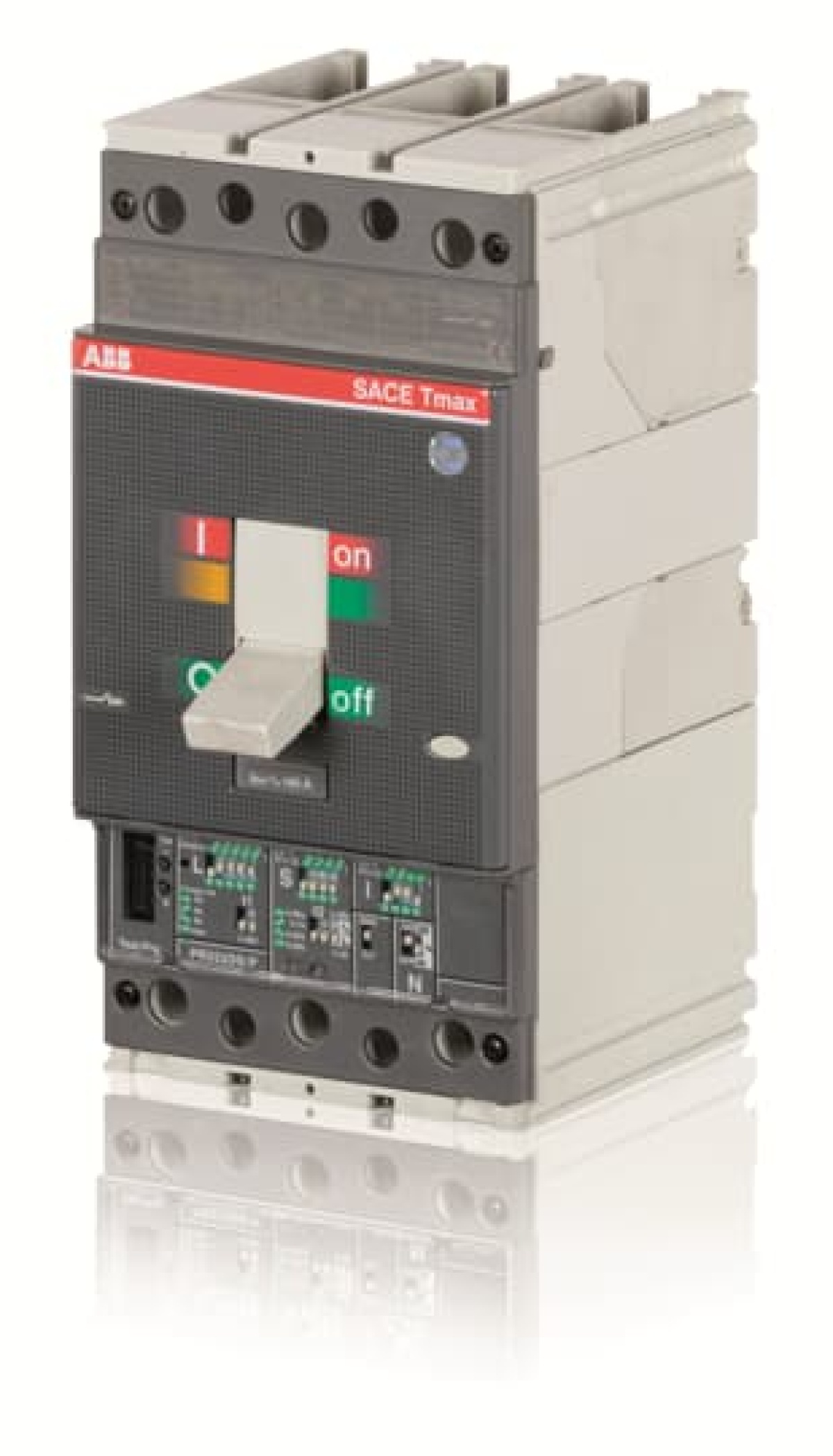

C.BREAKER TMAX T4V-HA 250 800V FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS-LSIG R 250
Cutting and Protection Devices
T4V-HA250 PR222DS-LSIG In250 3p FF800VAC
Nortécnica Ref:
EAN:
8015644103859
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
250
With integrated under voltage release
No
Number of poles
3
Overload release current setting
100.0
250
Número de contatos auxiliares como contato de comutação
0
Rated voltage
800
800
Power loss
-
Degree of protection IP
IP20
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Type of control element
Wing knob
With switched-off indicator
No
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
-
Adjustment range short-term delayed short-circuit release
150.0
2500
Adjustment range undelayed short-circuit release
375.0
3000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
ABB
Descrição Longa
C.BREAKER TMAX T4V-HA 250 800V FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS-LSIG R 250
