SWITCH-DISCONNECTOR TMAX XT3D 250 FIXED FOUR-POLE WITH FRONT TERMINALS
Cutting and Protection Devices

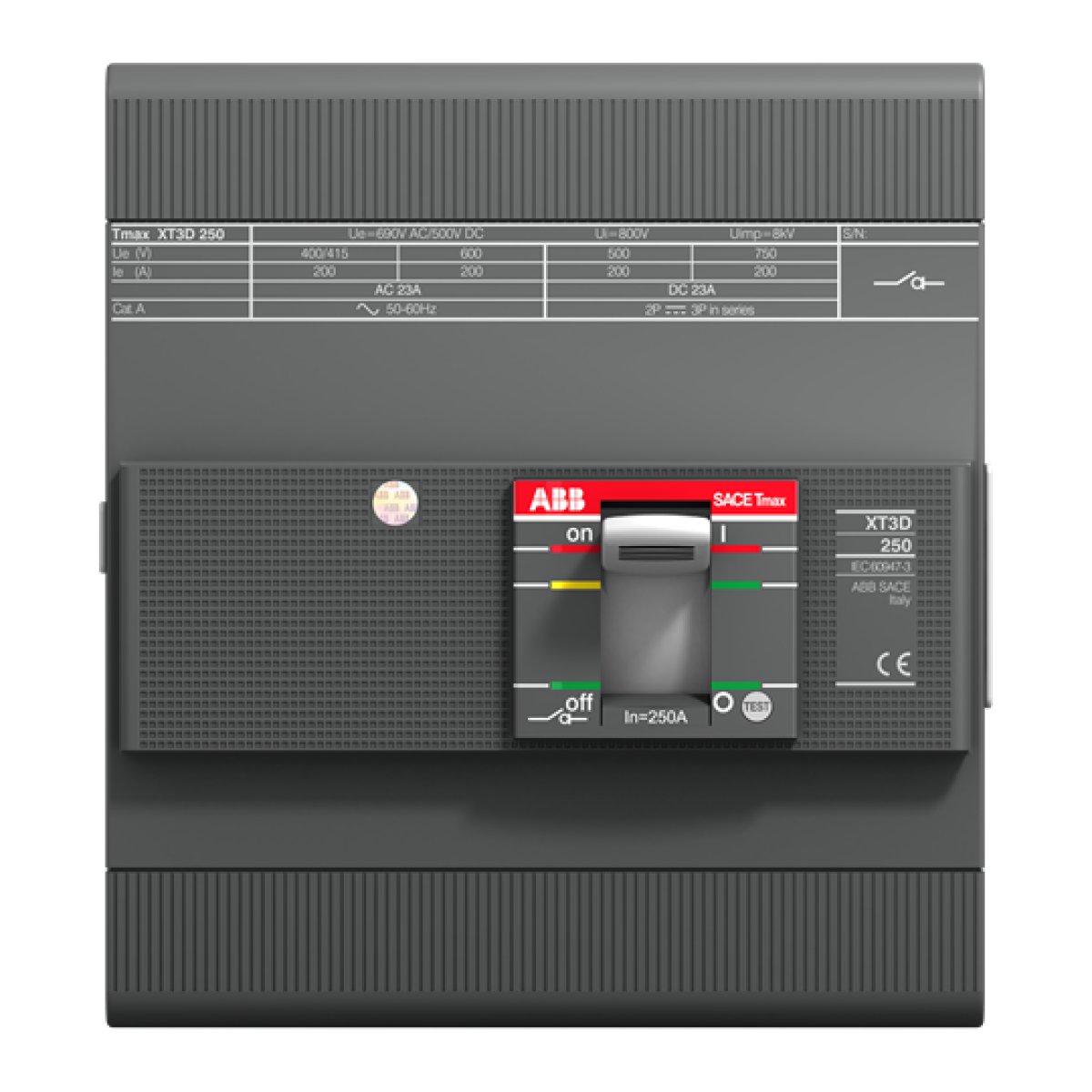

XT3D 250 4p F F
Nortécnica Ref:
2703068211R1
EAN:
8015644021078
Description
Technical Information
Attributes
Largura
140
Altura
150
Profundidade
70
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
250
Número de polos
4
Rated operating voltage
0
690
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
-
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
-
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
3
Colour control element
White
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
Yes
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
250
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
ABB
Descrição Longa
SWITCH-DISCONNECTOR TMAX XT3D 250 FIXED FOUR-POLE WITH FRONT TERMINALS
