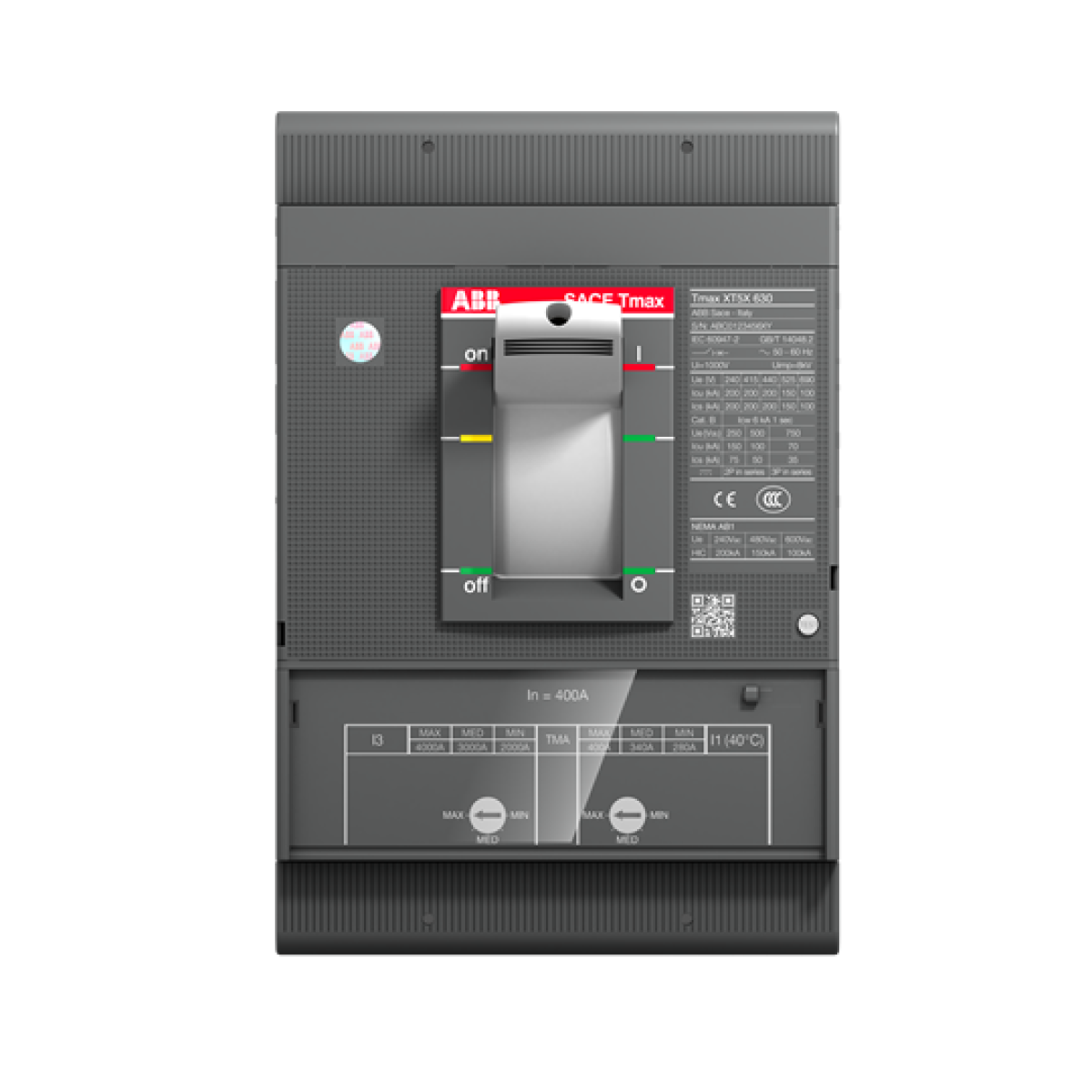

C.BREAKER TMAX XT5X HVA8 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 320 I3=1600...3200
Cutting and Protection Devices
XT5X HVA8 320-3200 TMA 3P FF
Nortécnica Ref:
EAN:
8056221328661
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
320
With integrated under voltage release
No
Número de polos
3
Overload release current setting
128.0
320
Número de contatos auxiliares como contato de comutação
0
Rated voltage
800
800
Potência dissipada
16.9
Degree of protection IP
IP20
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Type of control element
Wing knob
With switched-off indicator
No
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
-
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
1600
3200
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
ABB
Descrição Longa
C.BREAKER TMAX XT5X HVA8 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 320 I3=1600...3200
