D11 15-M 40 is a single phase energy meter, direct connection up to 40 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only one DIN module in width and housing in recycled plastic. 96pcs pcs are included in the bulk package.
Management and Measuring Devices

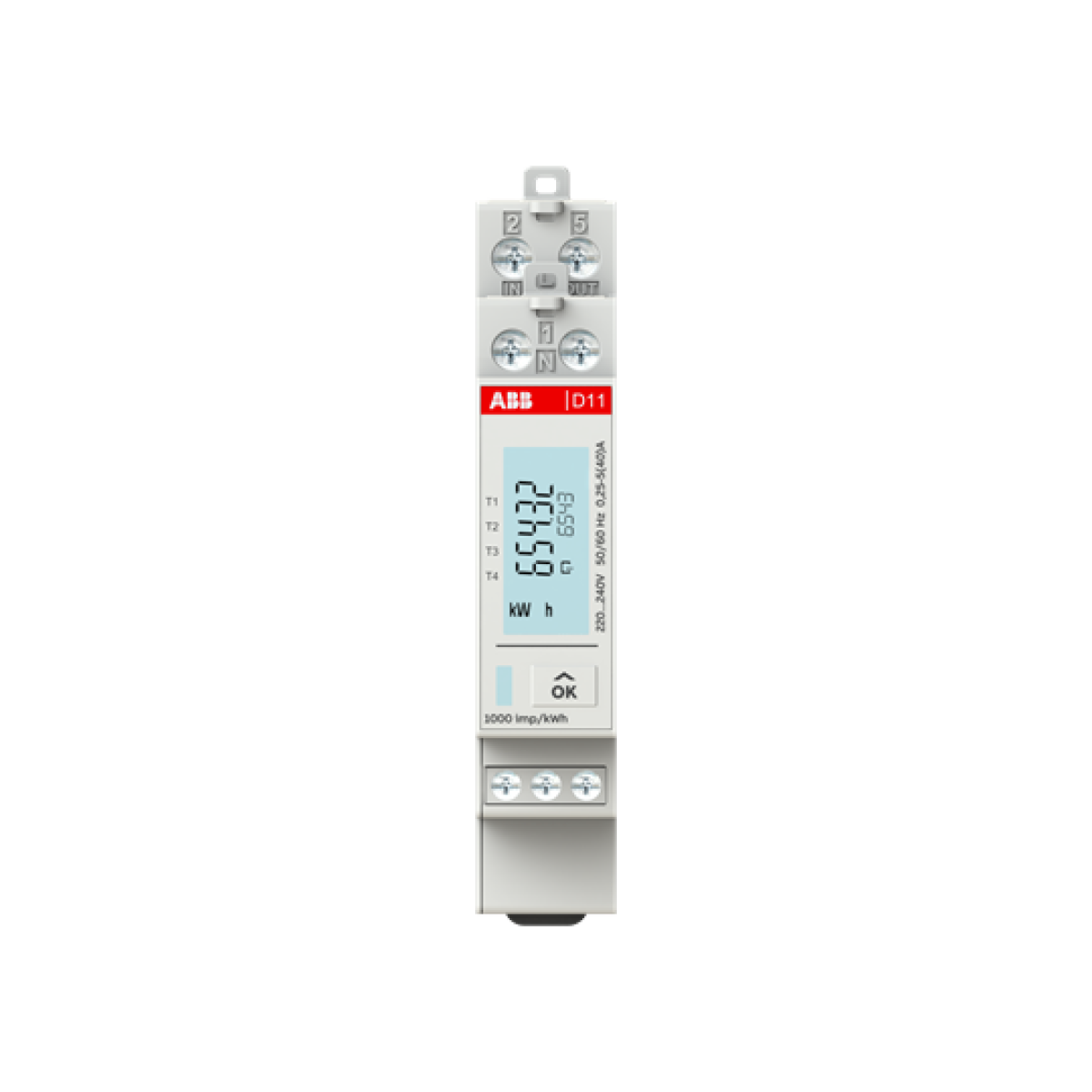

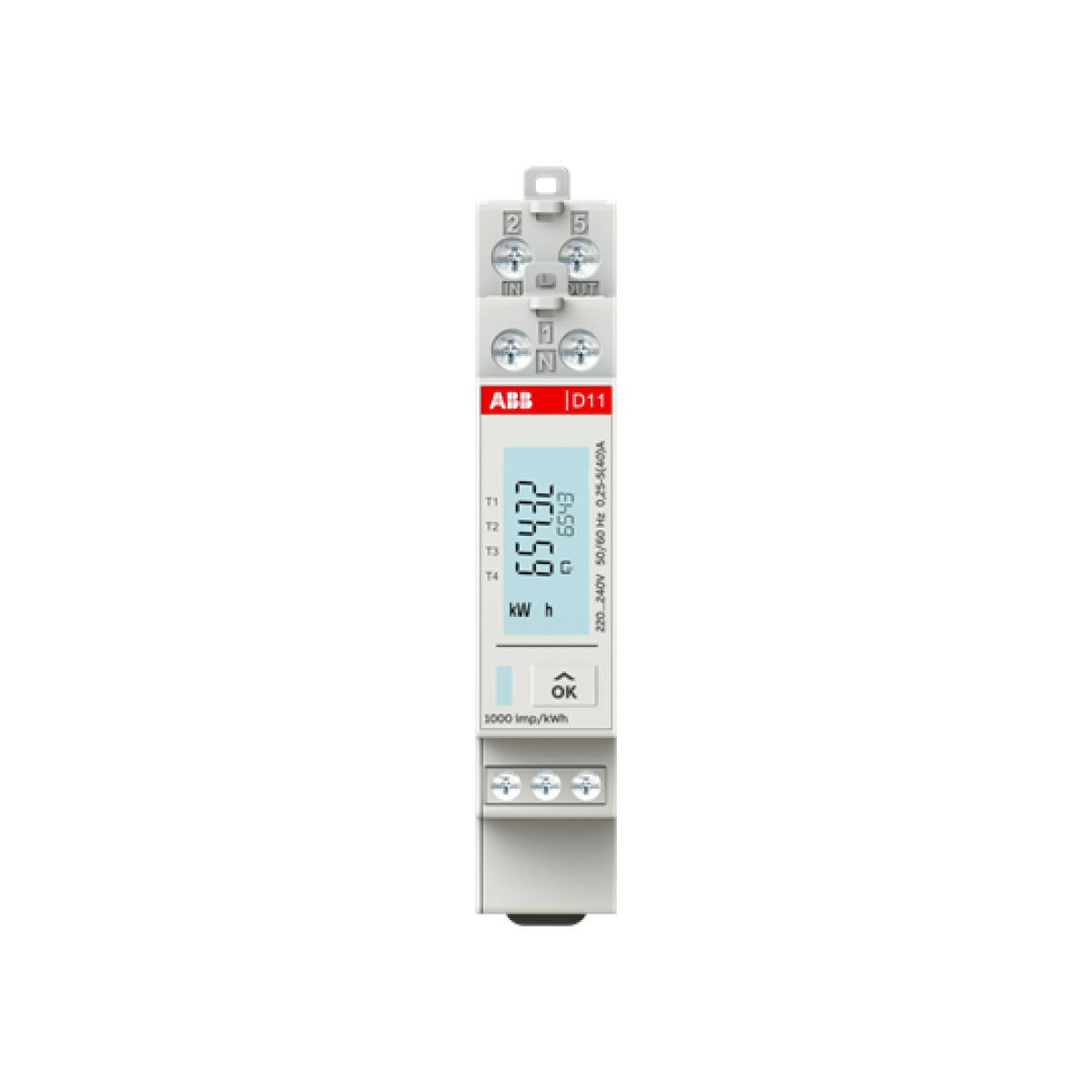

Energy meter '15', 1-phase, 40 A
Nortécnica Ref:
EAN:
8012542680857
Description
Technical Information
Attributes
Mounting method
DRA (DIN-rail adaptor)
Width
17.5
Model
Direct measurement
Height
92
Depth
65
Suitable for
-
Type of indication
Digital
Power consumption
0.69
Frequency
50
60
Corrente máxima Imax
40
Width in number of modular spacings
1
Número total de posições contador
6
Type of meter
Electronic
Degree of protection IP
IP20
Type of interface
-
Energy type
-
Tariff type
Two-tariff
Tariff control
Internal/external
Escapement mechanism
-
Calibrated
-
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
-
-
Accuracy class
B
Pole type
Single phase
Measurement type load profile
-
EEC40 signature
-
With lock code
-
Nominal voltage Un N-L
-
-
Nominal voltage Un L-L
-
-
Nominal current In
40
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
D11 15-M 40 is a single phase energy meter, direct connection up to 40 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only one DIN module in width and housing in recycled plastic. 96pcs pcs are included in the bulk package.
