D13 15-M 65 Mbus B is a three phase energy meter with Mbus, direct connection up to 65 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only three DIN module in width and housing in recycled plastic. 32pcs pcs are included in the bulk package.
Management and Measuring Devices

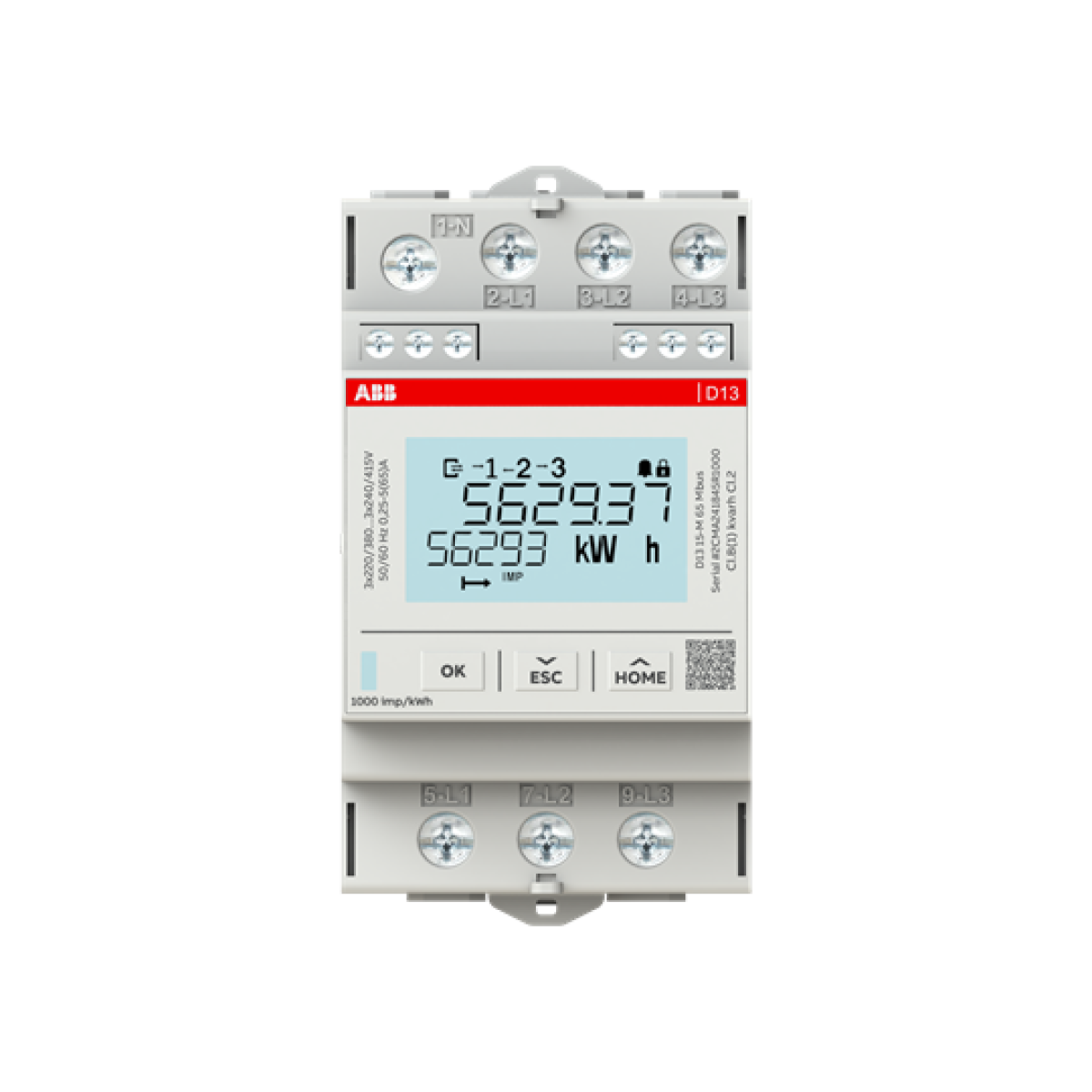

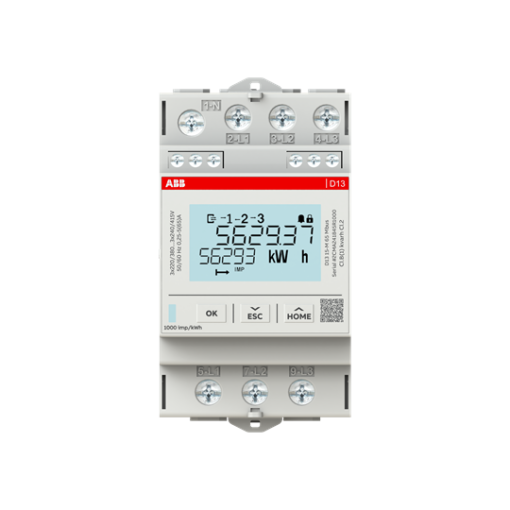

Energy meter '15', M-bus wired, 3-phase, 65 A
Nortécnica Ref:
EAN:
8012542681557
Description
Technical Information
Attributes
Mounting method
DRA (DIN-rail adaptor)
Width
52.5
Model
Direct measurement
Height
97
Depth
65
Suitable for
-
Type of indication
Digital
Power consumption
0.82
Frequency
50
60
Corrente máxima Imax
65
Width in number of modular spacings
3
Número total de posições contador
7
Type of meter
Electronic
Degree of protection IP
IP20
Type of interface
Other
Energy type
-
Tariff type
Multi-tariff
Tariff control
Internal/external
Escapement mechanism
-
Calibrated
-
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
-
-
Accuracy class
B
Pole type
Four conductor
Measurement type load profile
-
EEC40 signature
-
With lock code
-
Nominal voltage Un N-L
-
-
Nominal voltage Un L-L
-
-
Nominal current In
65
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
D13 15-M 65 Mbus B is a three phase energy meter with Mbus, direct connection up to 65 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only three DIN module in width and housing in recycled plastic. 32pcs pcs are included in the bulk package.
