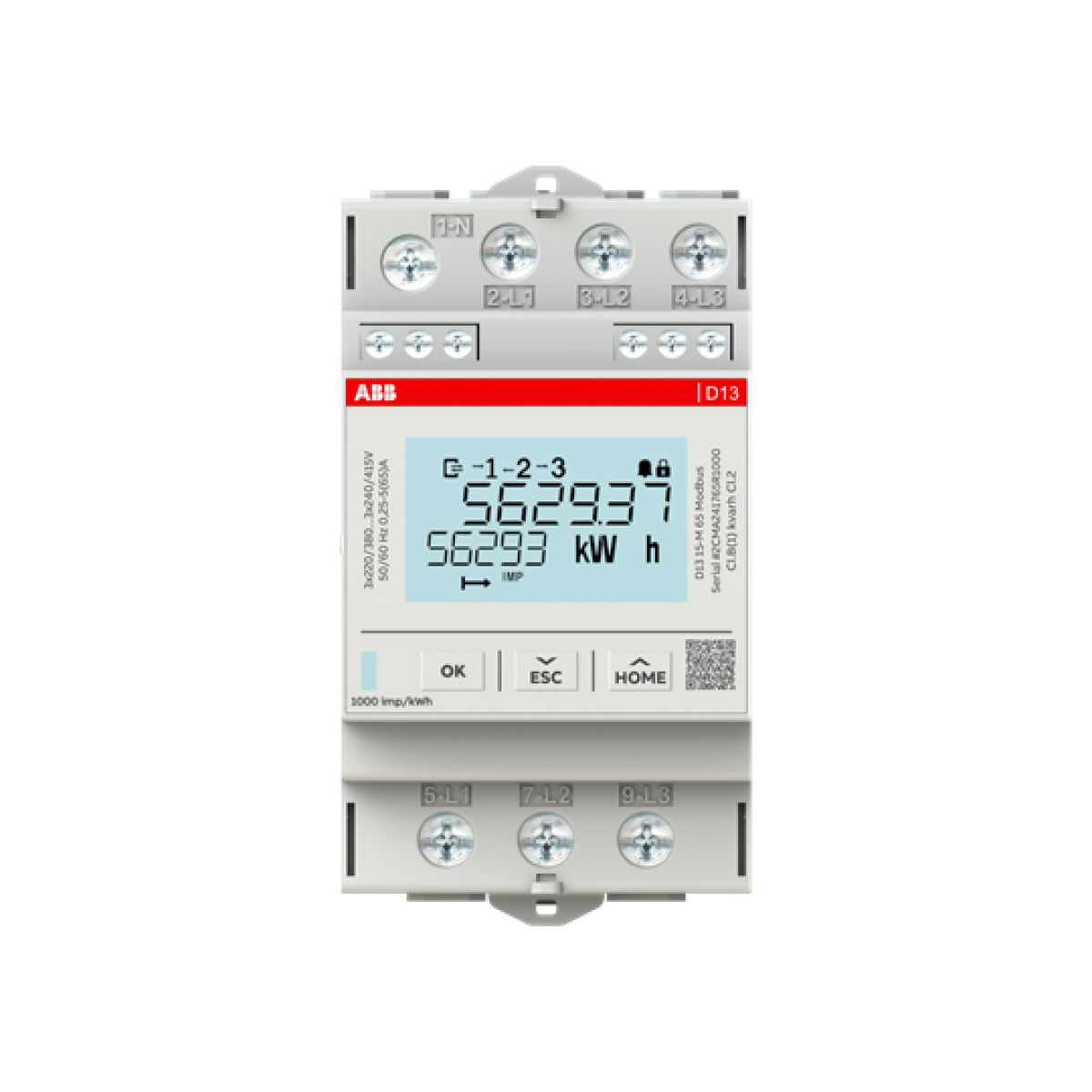

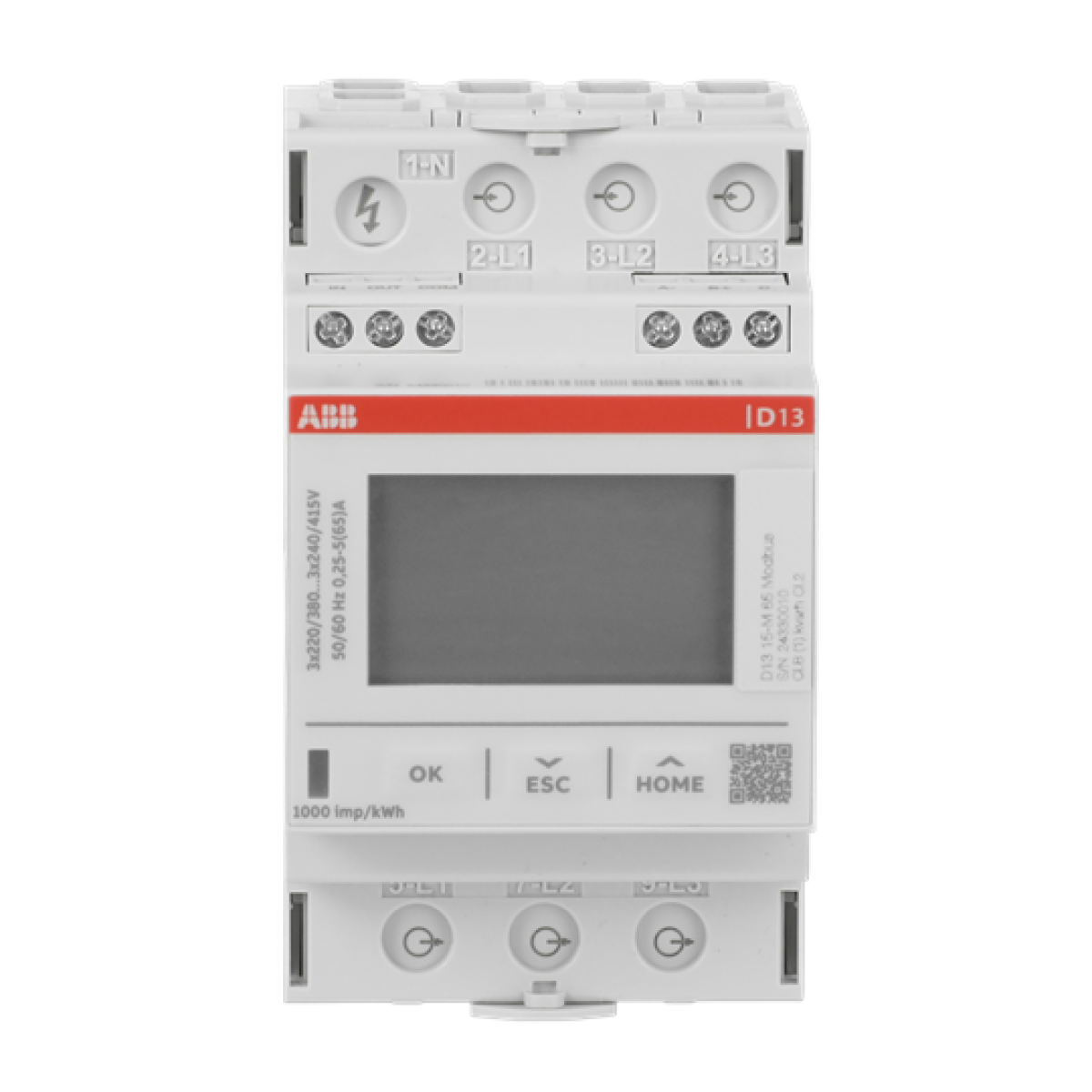

D13 15-M 65 Modbus is a three phase energy meter with Modbus RTU, direct connection up to 65 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only three DIN module in width and housing in recycled plastic.
Management and Measuring Devices
Energy meter '15', Modbus, 3-phase, 65 A
Nortécnica Ref:
272CMA241765R1000
EAN:
8012542636151
Description
Technical Information
Attributes
Mounting method
DRA (DIN-rail adaptor)
Width
52.5
Model
Direct measurement
Height
97
Depth
65
Suitable for
-
Type of indication
Digital
Power consumption
0.82
Frequency
50
60
Corrente máxima Imax
65
Width in number of modular spacings
3
Número total de posições contador
7
Type of meter
Electronic
Degree of protection IP
IP20
Type of interface
Modbus
Energy type
-
Tariff type
Multi-tariff
Tariff control
Internal/external
Escapement mechanism
-
Calibrated
-
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
-
-
Accuracy class
B
Pole type
Four conductor
Measurement type load profile
-
EEC40 signature
-
With lock code
Yes
Nominal voltage Un N-L
-
-
Nominal voltage Un L-L
-
-
Nominal current In
65
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
D13 15-M 65 Modbus is a three phase energy meter with Modbus RTU, direct connection up to 65 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only three DIN module in width and housing in recycled plastic.
