Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Up to four tariffs. Two outputs and inputs for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
Management and Measuring Devices

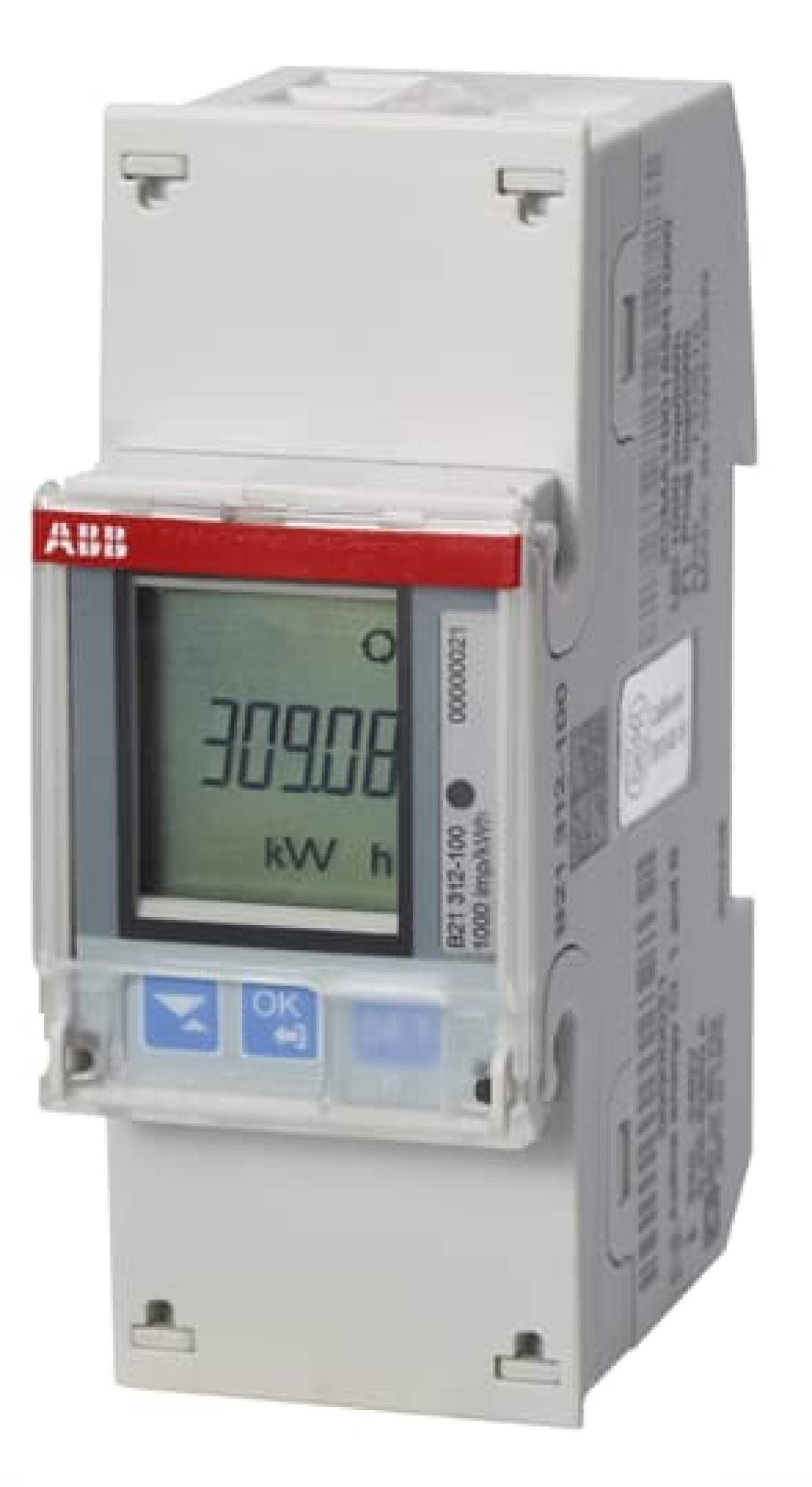

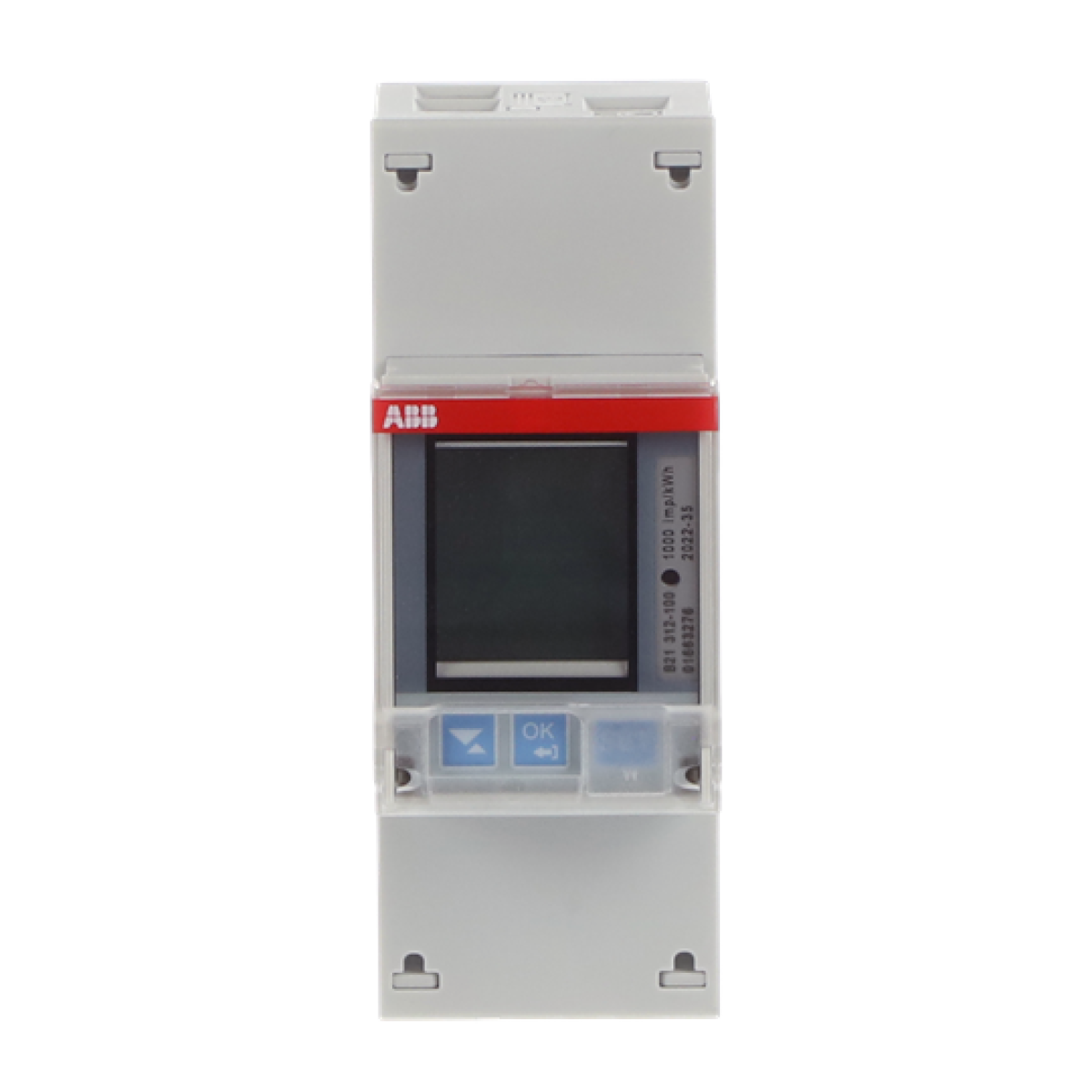

Energy meter 'Silver', Modbus RS485, 1-phase, 5 A
Nortécnica Ref:
272CMA100155R1000
EAN:
7392696001557
Description
Technical Information
Attributes
Mounting method
DRA (DIN-rail adaptor)
Largura
35
Model
-
Altura
26.5
Profundidade
65
Suitable for
-
Type of indication
Digital
Power consumption
0.414
Frequency
-
-
Corrente máxima Imax
65
Largura em número de módulos
2
Número total de posições contador
7
Type of meter
Electronic
Degree of protection IP
IP20
Type of interface
Other
Energy type
-
Tariff type
Multi-tariff
Tariff control
External
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
-
-
Accuracy class
B
Pole type
Single phase
Measurement type load profile
No
EEC40 signature
No
With lock code
No
Nominal voltage Un N-L
-
-
Nominal voltage Un L-L
-
-
Nominal current In
65
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Up to four tariffs. Two outputs and inputs for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
