Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase transformer connectedfor active energy. One output for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
Management and Measuring Devices

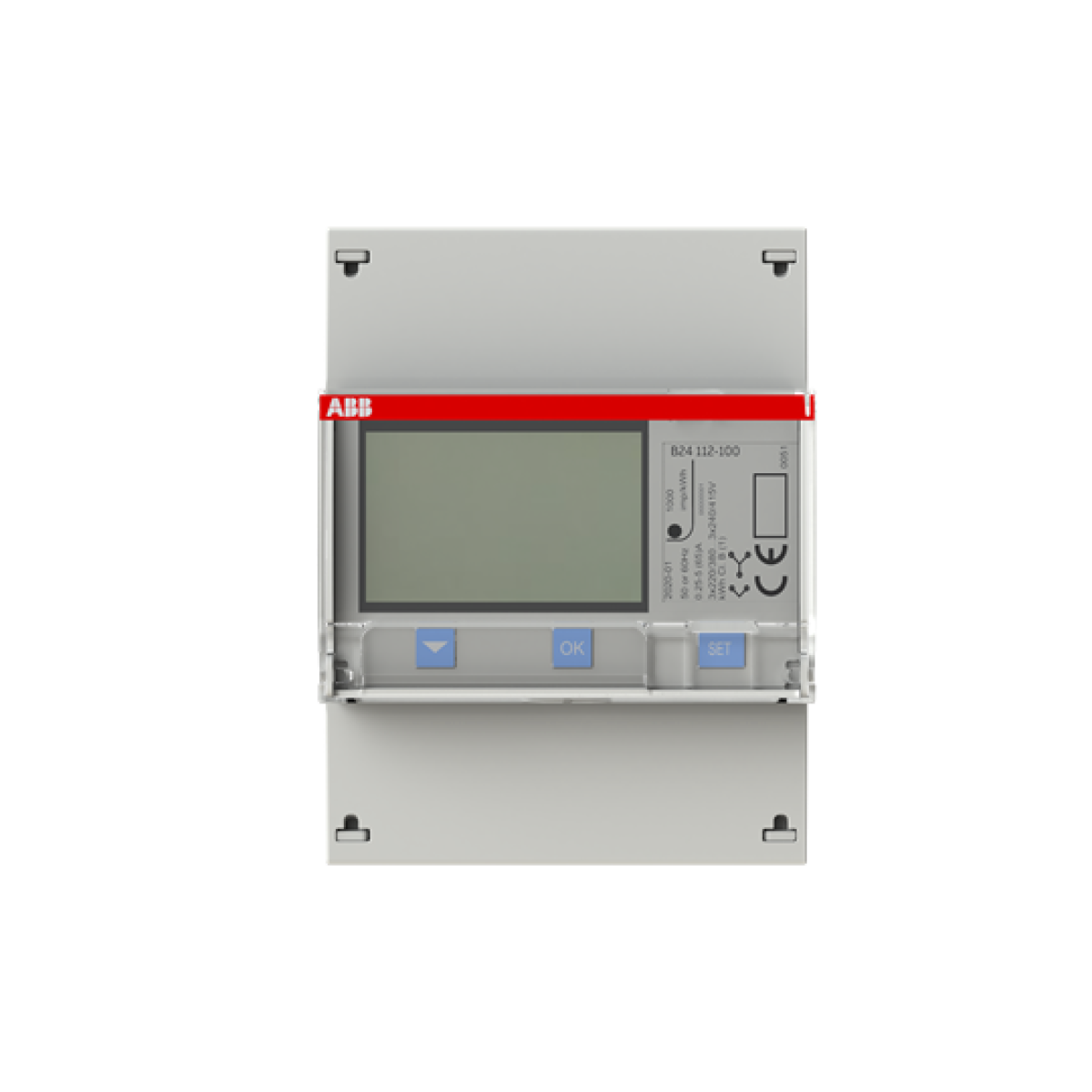

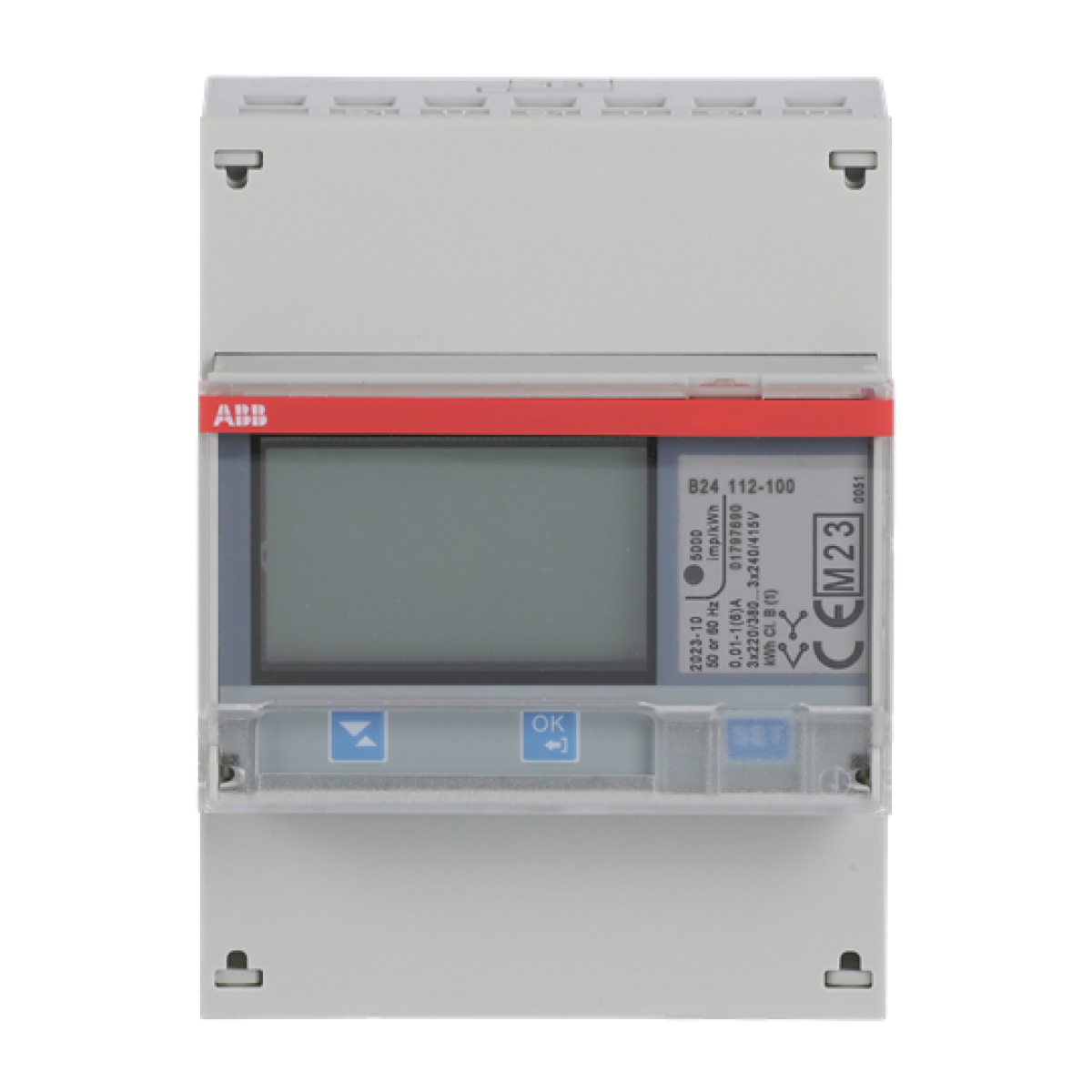

Energy meter 'Steel', Modbus RS485, 3-phase, 1 A
Nortécnica Ref:
272CMA100178R1000
EAN:
7392696001786
Description
Technical Information
Attributes
Mounting method
DRA (DIN-rail adaptor)
Largura
70
Model
-
Altura
26.5
Profundidade
65
Suitable for
-
Type of indication
Digital
Power consumption
0.721
Frequency
-
-
Corrente máxima Imax
6
Largura em número de módulos
4
Número total de posições contador
7
Type of meter
Electronic
Degree of protection IP
IP20
Type of interface
Other
Energy type
-
Tariff type
One-tariff
Tariff control
-
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
-
-
Accuracy class
B
Pole type
Four conductor
Measurement type load profile
No
EEC40 signature
No
With lock code
No
Nominal voltage Un N-L
-
-
Nominal voltage Un L-L
-
-
Nominal current In
6
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase transformer connectedfor active energy. One output for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
