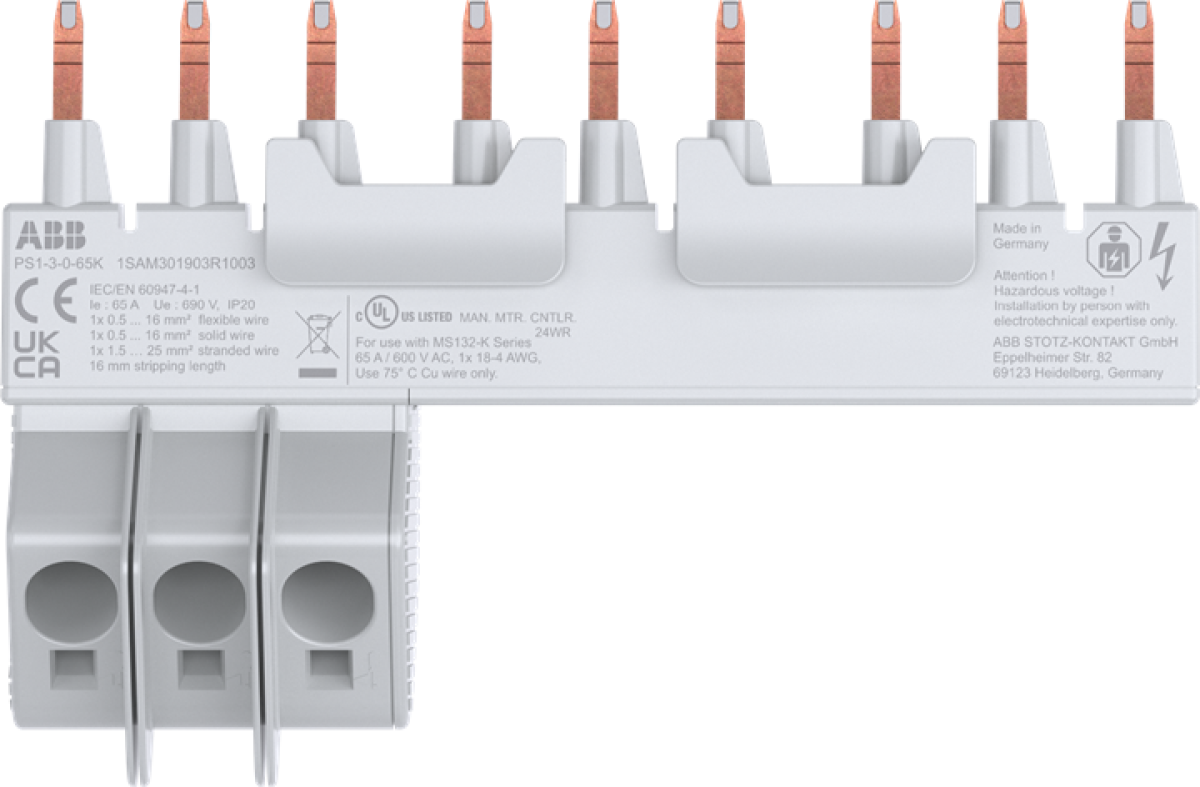

PS1-3-0-65K 3-phase busbar enables an easy and fast parallel connection of 3x MS132-K manual motor starters without the need of any tools by simply pushing the busbar into the terminals. The feeder block is intergated into the busbar, optimizing logistics and planning by reducing the amount of needed parts. The rated current is 65 A. PS1-K busbars are certified for UL Type E and Type F applications.
Accessories and Components
PS1-3-0-65K 3-phase busbar 3x MS132-K, 65A
Nortécnica Ref:
EAN:
4013614562921
Description
Technical Information
Attributes
Colour
Grey
Insulated
Yes
Number of phases
-
Cross section
8
Rated permanent current Iu
65
Number of poles
3
Comprimento
131.9
Conditioned rated short-circuit current Iq
100
Width in number of modular spacings
7.53
Rated surge voltage
6
Type of electric connection
Pin
Rated short-time withstand current lcw
-
Suitable for devices with auxiliary switch
No
Suitable for devices with N-conductor
No
Suitable for number of devices
3
Max. rated operation voltage Ue
690
Module width
14
Can be cut to size
No
Brands
ABB
