PS1-4-1-65 3-phase busbars ensure a quick and safe connection of 5 MS132 or MS116 manual motor starters with 1 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 65 A.
Accessories and Components

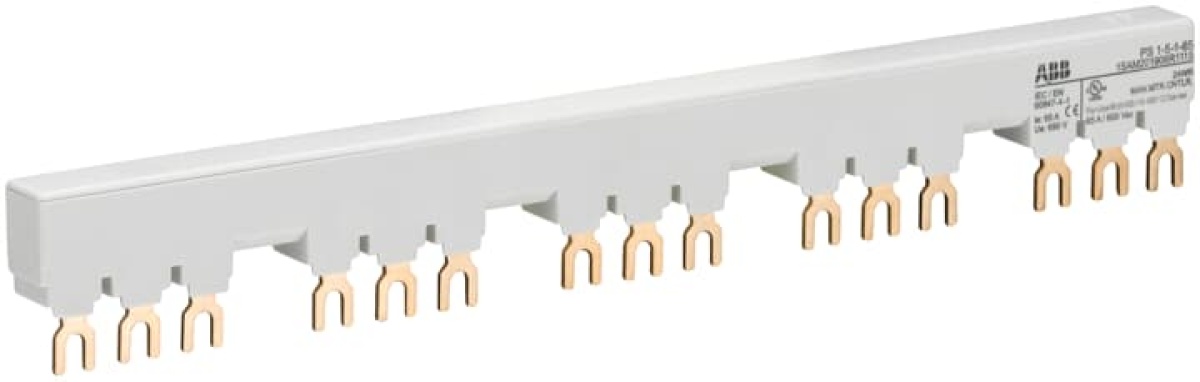

PS1-5-1-65 3-phase busbar for 5 MS116 MS132 with 1 HKSK, Ie65A
Nortécnica Ref:
2711201906R1115
EAN:
4013614400759
Description
Technical Information
Attributes
Colour
Grey
Insulated
Yes
Number of phases
-
Cross section
8
Rated permanent current Iu
65
Number of poles
3
Comprimento
257.5
Conditioned rated short-circuit current Iq
100
Width in number of modular spacings
14.7
Rated surge voltage
6
Type of electric connection
Fork
Rated short-time withstand current lcw
-
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N-conductor
No
Suitable for number of devices
5
Max. rated operation voltage Ue
690
Module width
14
Can be cut to size
No
Brands
ABB
