PS1-5-1-65K 3-phase busbar enables an easy and fast parallel connection of 5x MS132-K manual motor starters + 1 lateral aux.contact without the need of any tools by simply pushing the busbar into the terminals. The feeder block is intergated into the busbar, optimizing logistics and planning by reducing the amount of needed parts. The rated current is 65 A. PS1-K busbars are certified for UL Type E and Type F applications.
Accessories and Components

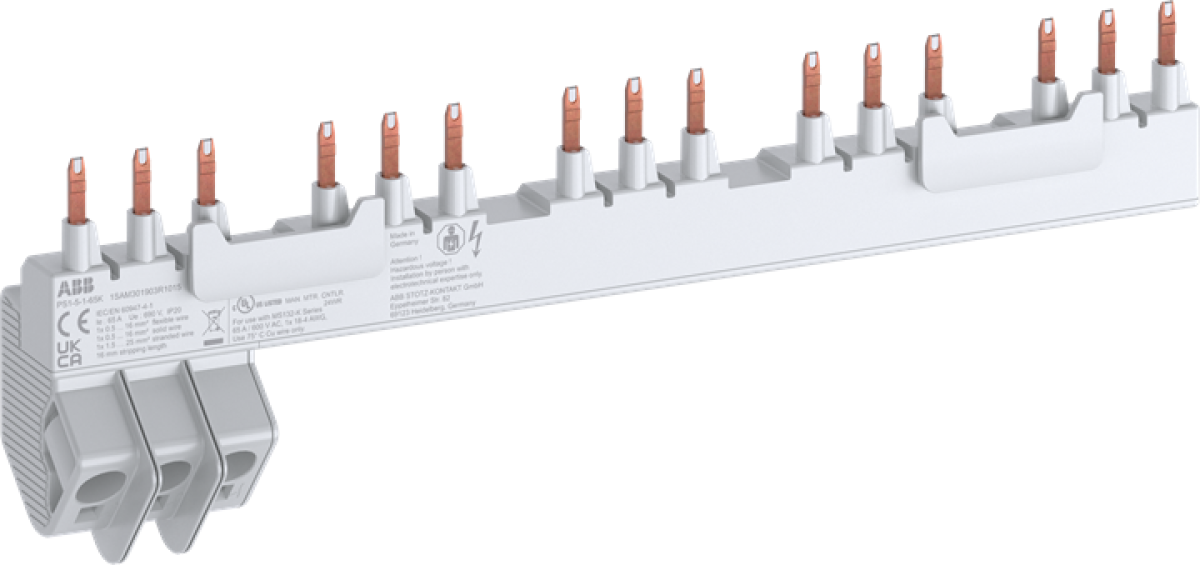

PS1-5-1-65K 3-phase busbar 5x MS132-K 1 lateral aux.contact, 65A
Nortécnica Ref:
EAN:
4013614562983
Description
Technical Information
Attributes
Colour
Grey
Insulated
Yes
Number of phases
-
Corte transversal
8
Corrente permanente nominal Iu
65
Number of poles
3
Length
258.3
Corrente condicional nominal de curto-circuito Iq
100
Width in number of modular spacings
14.7
Tensão especificada de pico
6
Type of electric connection
Pin
Corrente nominal suportável lcw atual
-
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N-conductor
No
Adequado ao número de dispositivos
5
Máx. tensão nominal de operação Ue
690
Dimensões do passo
14
Can be cut to size
No
Brands
ABB
Descrição Longa
PS1-5-1-65K 3-phase busbar enables an easy and fast parallel connection of 5x MS132-K manual motor starters + 1 lateral aux.contact without the need of any tools by simply pushing the busbar into the terminals. The feeder block is intergated into the busbar, optimizing logistics and planning by reducing the amount of needed parts. The rated current is 65 A. PS1-K busbars are certified for UL Type E and Type F applications.
