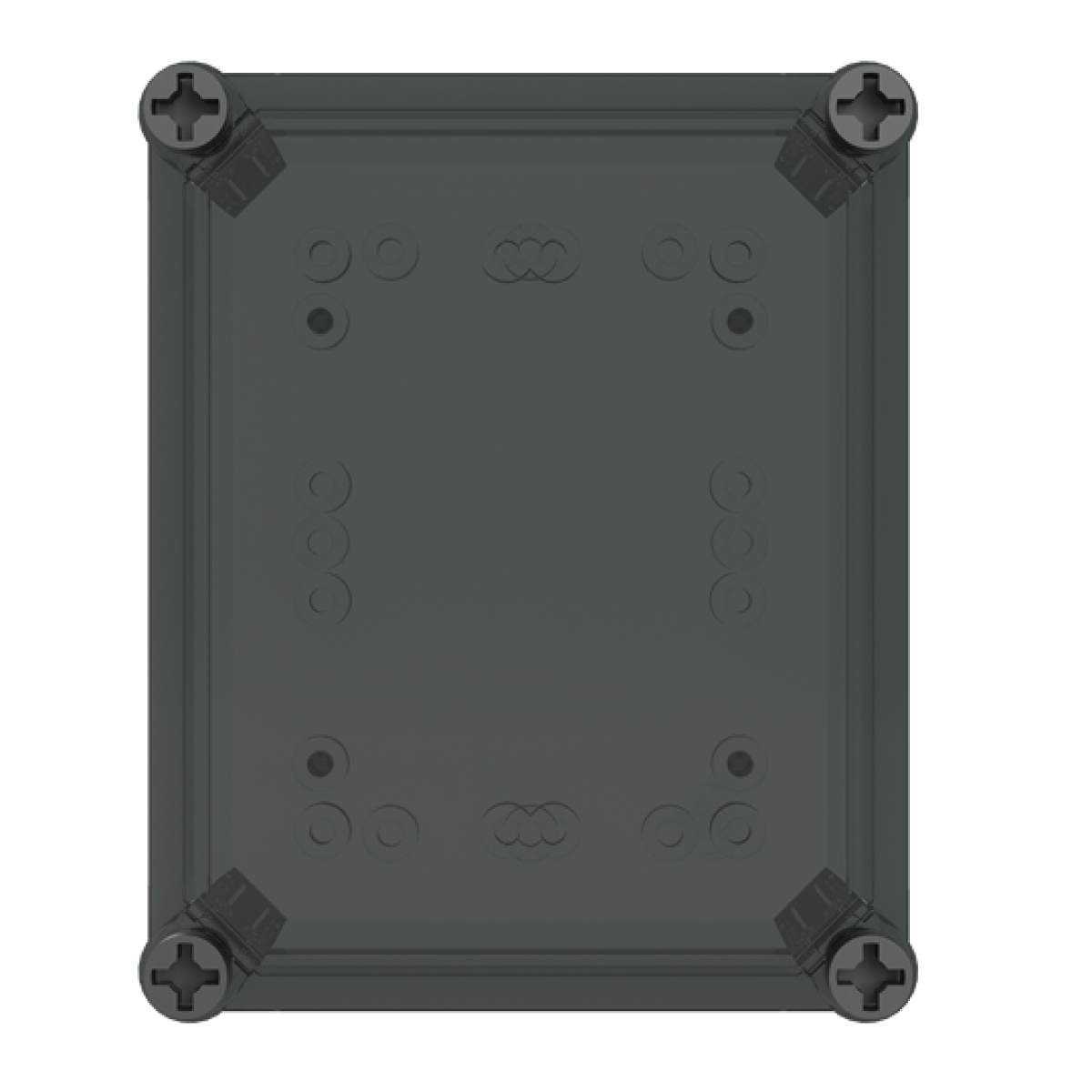

APO complete housing. AT1 Enclosure 186x151x140 Enclosure with transparent cover,IP66, IK10, with cover screws UL and CSA approval
Cabinets

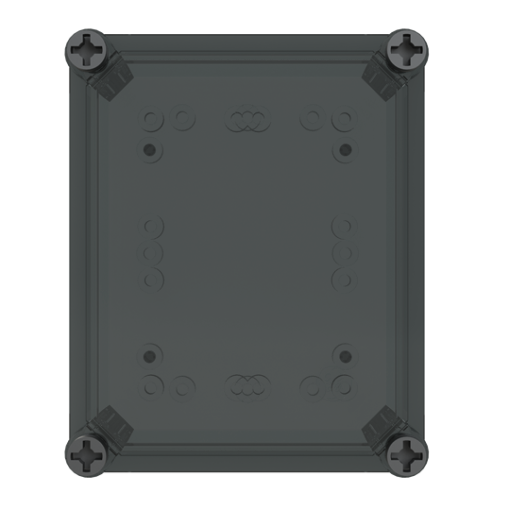

APO 1 Box transparent cover RAL7035
Nortécnica Ref:
EAN:
5411815248924
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Largura
151
Altura
140
Profundidade
186
Número RAL
7035
With mounting plate
No
Surface protection
Untreated
Profundidade incorporada
95
Quantidade de filas
-
Type of covering
Cover
Number of conduit inlets
0
Extension possible
Yes
Profundidade interior
75
Housing material
Plastic
Integridade do circuito
None
Largura em número de módulos
-
Suitable for outdoor use
Yes
Impact strength
IK10
Number of modules
-
Type of door
Single
Degree of protection IP
IP66
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
3.5
Material plate thickness doorcover
3
Cover model
Closed
Number of openings for flange plates
-
Degree of protection NEMA
12
Cover with overpressure release
-
Brands
ABB
Descrição Longa
APO complete housing. AT1 Enclosure 186x151x140 Enclosure with transparent cover,IP66, IK10, with cover screws UL and CSA approval
