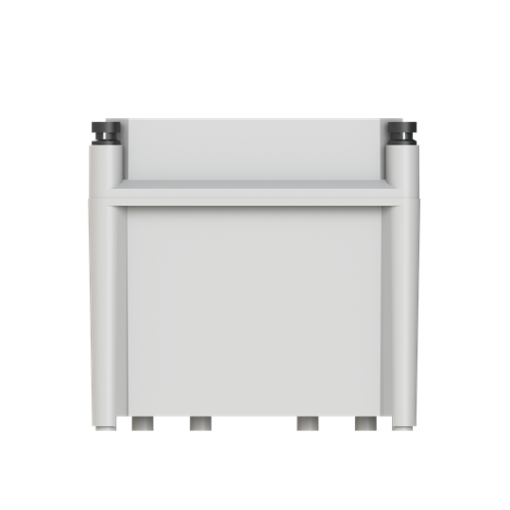

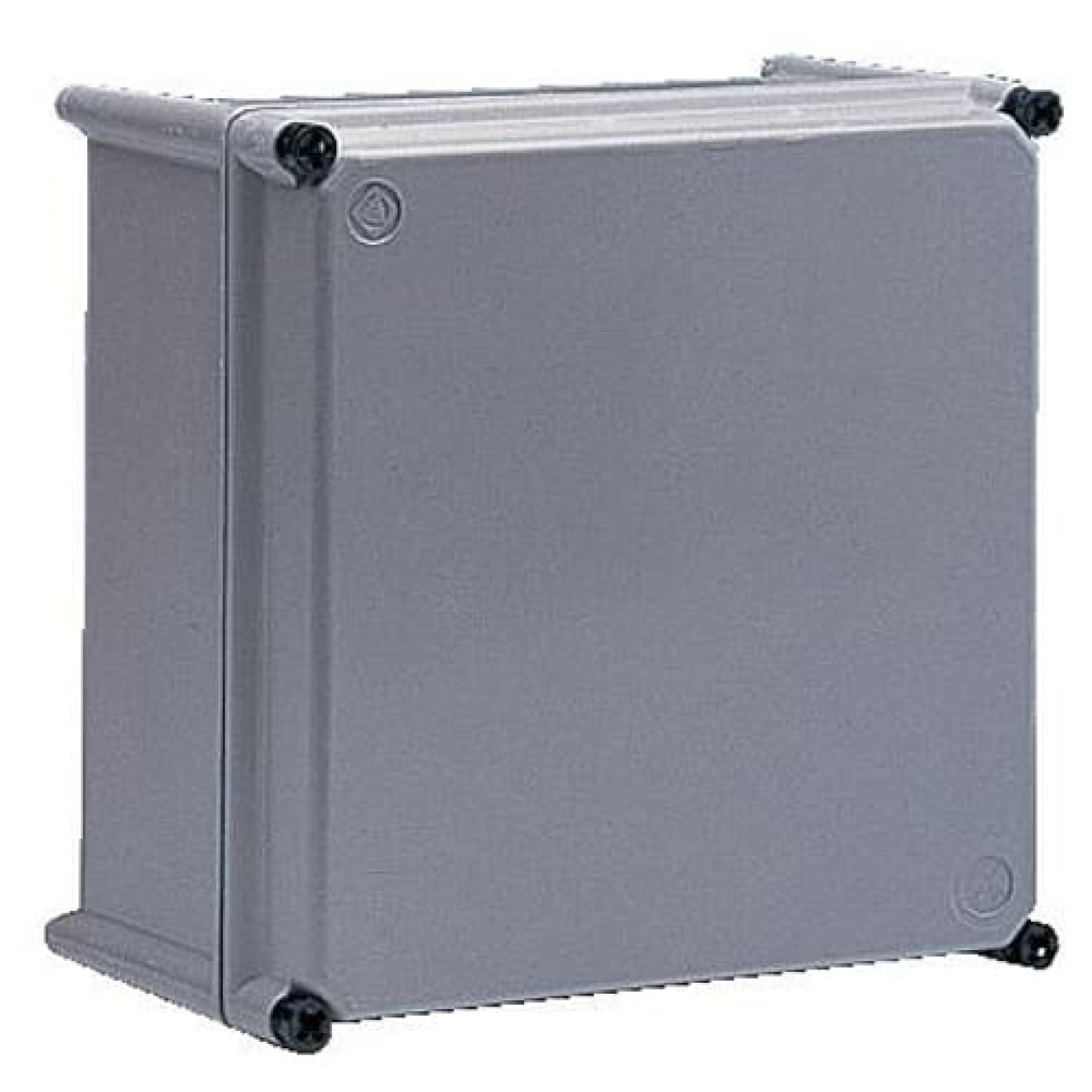

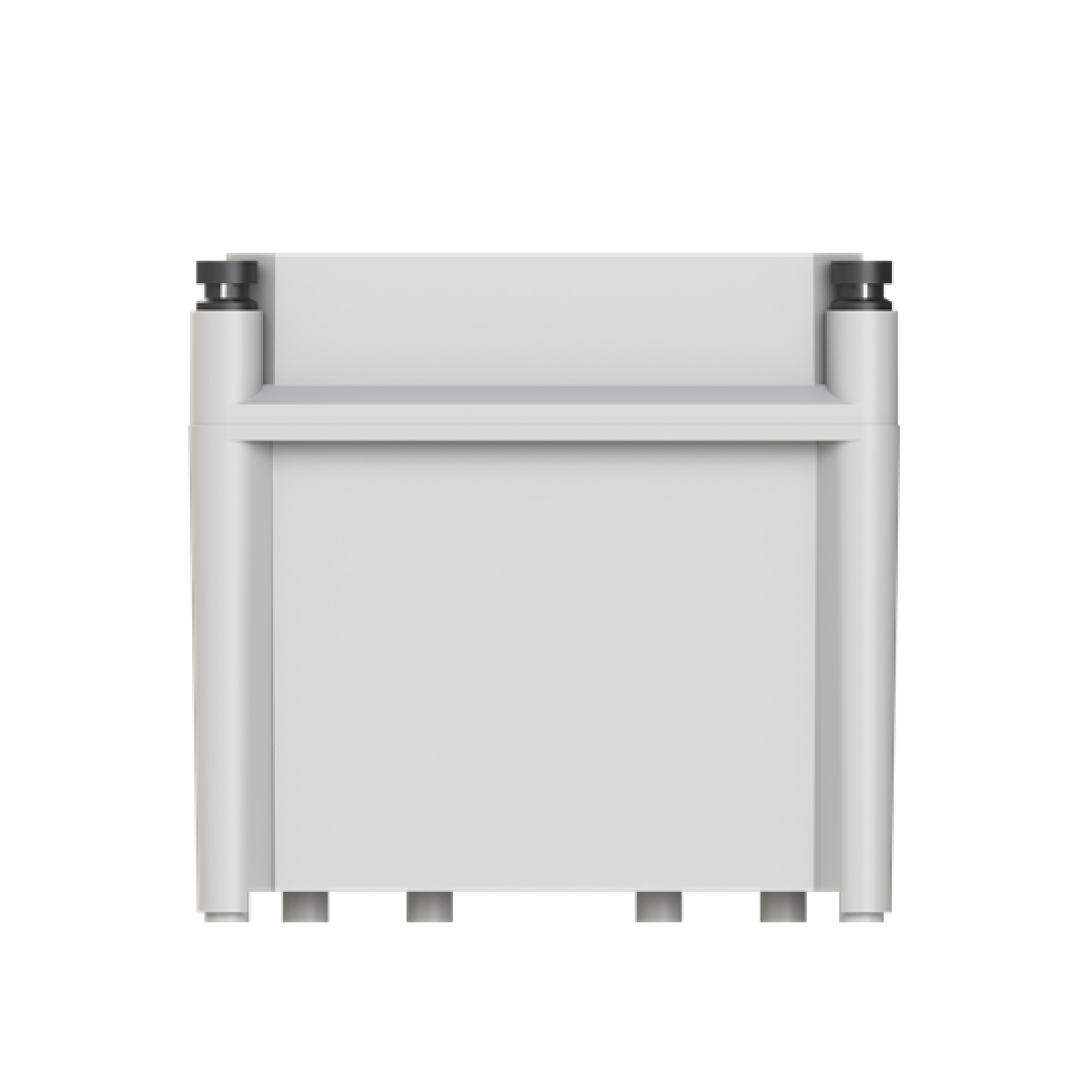

APO complete housing. AG3 enclosure 302x186x175mm enclosure with polyester cover, greyIP67, IK10, with cover screws UL and CSA approval
Cabinets
APO 31 BOX GREY COVER RAL7035
Nortécnica Ref:
EAN:
5411815248849
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Width
186
Height
175
Depth
302
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
140
Quantidade de filas
-
Type of covering
Cover
Number of conduit inlets
0
Extension possible
Yes
Inner depth
120
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
Yes
Impact strength
IK10
Number of modules
-
Type of door
Single
Degree of protection IP
IP67
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
3.5
Material plate thickness doorcover
3
Cover model
Closed
Number of openings for flange plates
-
Degree of protection NEMA
12
Cover with overpressure release
No
Brands
ABB
Descrição Longa
APO complete housing. AG3 enclosure 302x186x175mm enclosure with polyester cover, greyIP67, IK10, with cover screws UL and CSA approval
