APO complete housing. AT3 housing 302x186x175mm housing with transparent cover,IP66, IK10, with cover screws UL and CSA approval
Cabinets

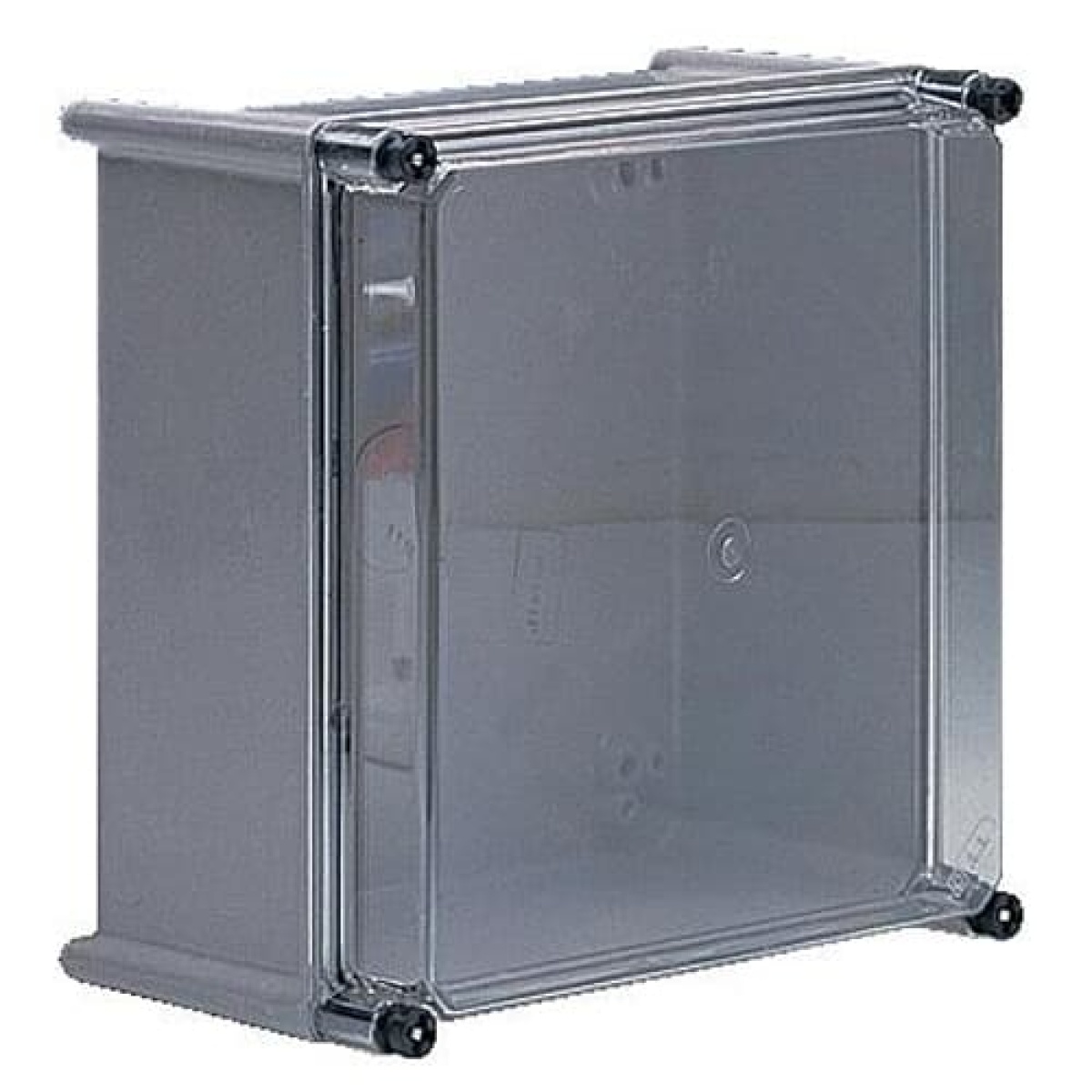

APO 31 Box transparent cover RAL7035
Nortécnica Ref:
EAN:
5411815248931
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Width
186
Height
175
Depth
302
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
140
Quantidade de filas
-
Type of covering
Cover
Number of conduit inlets
0
Extension possible
Yes
Inner depth
120
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
Yes
Impact strength
IK10
Number of modules
-
Type of door
Single
Degree of protection IP
IP66
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
3.5
Material plate thickness doorcover
3
Cover model
Closed
Number of openings for flange plates
-
Degree of protection NEMA
12
Cover with overpressure release
-
Brands
ABB
Descrição Longa
APO complete housing. AT3 housing 302x186x175mm housing with transparent cover,IP66, IK10, with cover screws UL and CSA approval
