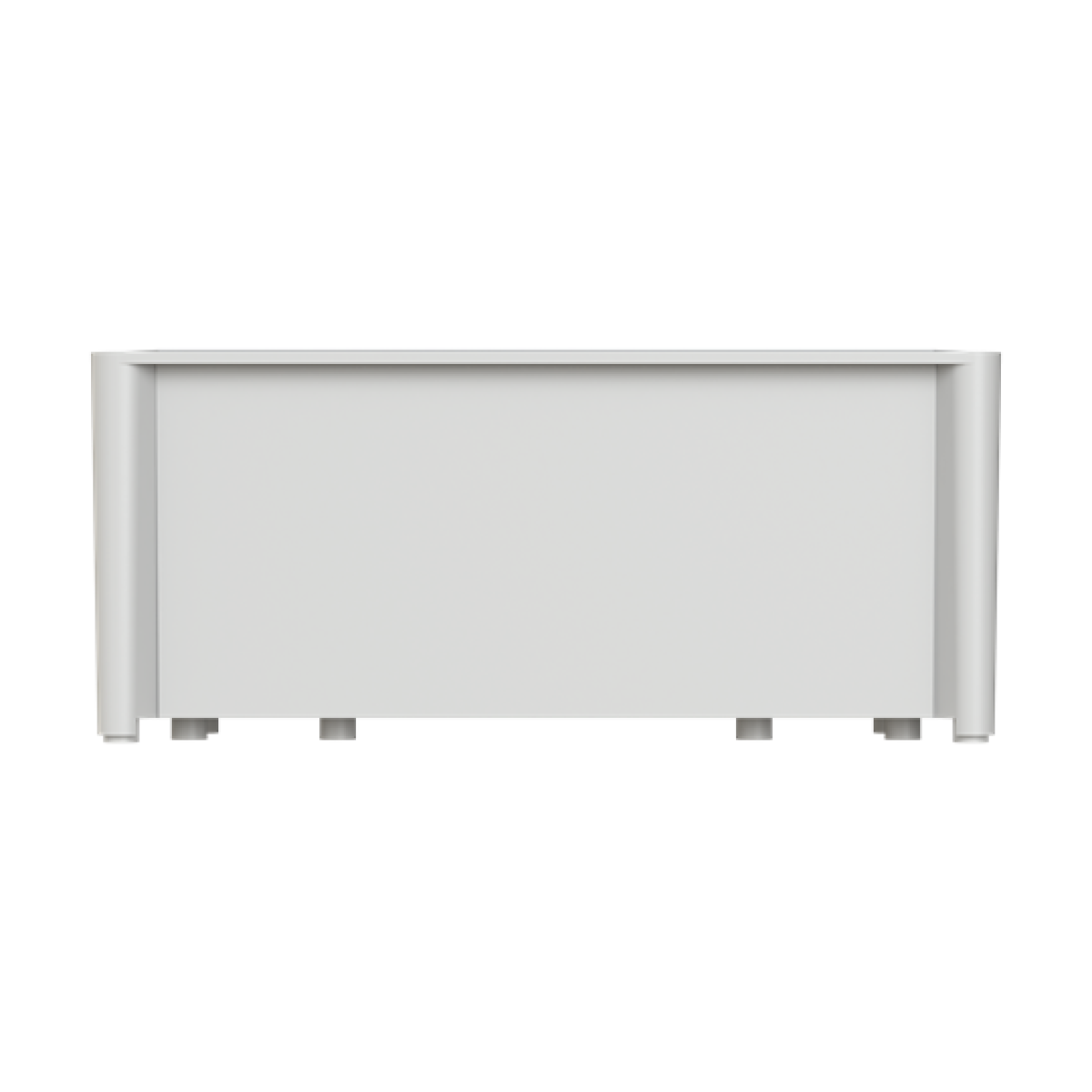

APO iso-distributors. AU412 Lower part 300x300x130 2x300 open APO RAL7035 Housing lower part with 2 open sides
Cabinets

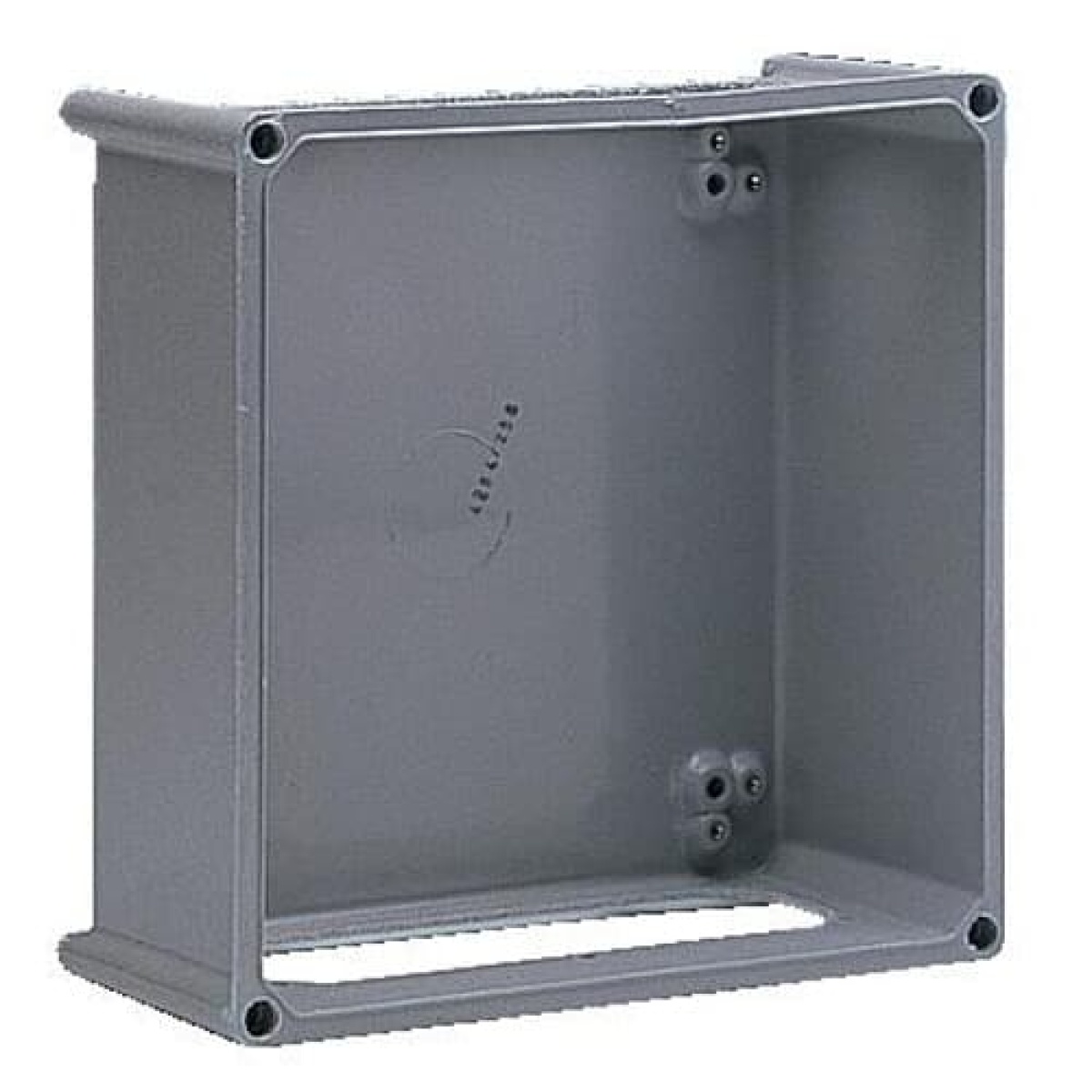

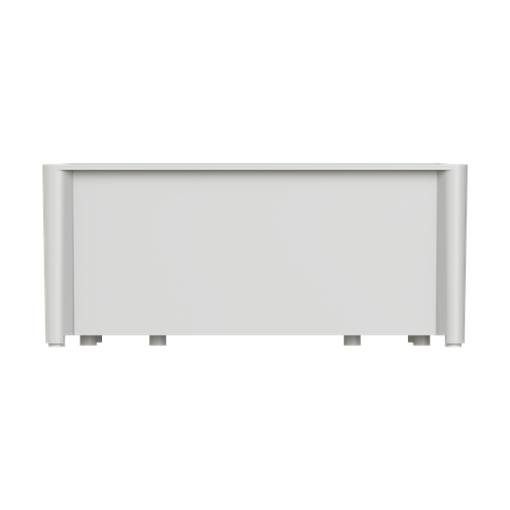

APO 41 BASE 2 OPEN SIDES RAL7035
Nortécnica Ref:
EAN:
5411815248450
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
II
Colour
Grey
Width
302
Height
131
Depth
302
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
140
Quantidade de filas
-
Type of covering
Optional
Number of conduit inlets
0
Extension possible
Yes
Inner depth
120
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
-
Suitable for outdoor use
No
Impact strength
Other
Number of modules
-
Type of door
None
Degree of protection IP
IP67
Transparent coverdoor
No
With lock
No
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
3.5
Material plate thickness doorcover
3
Cover model
None
Number of openings for flange plates
2
Degree of protection NEMA
12
Cover with overpressure release
No
Brands
ABB
Descrição Longa
APO iso-distributors. AU412 Lower part 300x300x130 2x300 open APO RAL7035 Housing lower part with 2 open sides
