Fire protection door, series VF, for the internal use, with closed doorframe and door, degree of protection IP54, fire resistance 30 min tested according to , Reduce fire load 30 min in line with , Maintain functionality 30 min in line with , Surface-coated, in RAL 7035, enclosure out of non flammable material, single-leaf door, door out of non flammable material, with Swivel handle with half cylinder, door opening angle 180 degree, door hinge right, dimensions in mm (H x W x D): 1045 x 795 x 51, Shutter frame dimensions in mm (H x W x D): 1045 x 795 x 22, Grid unit 5 GU, Overall height 1, panel width 2, Space units 120
Cabinets

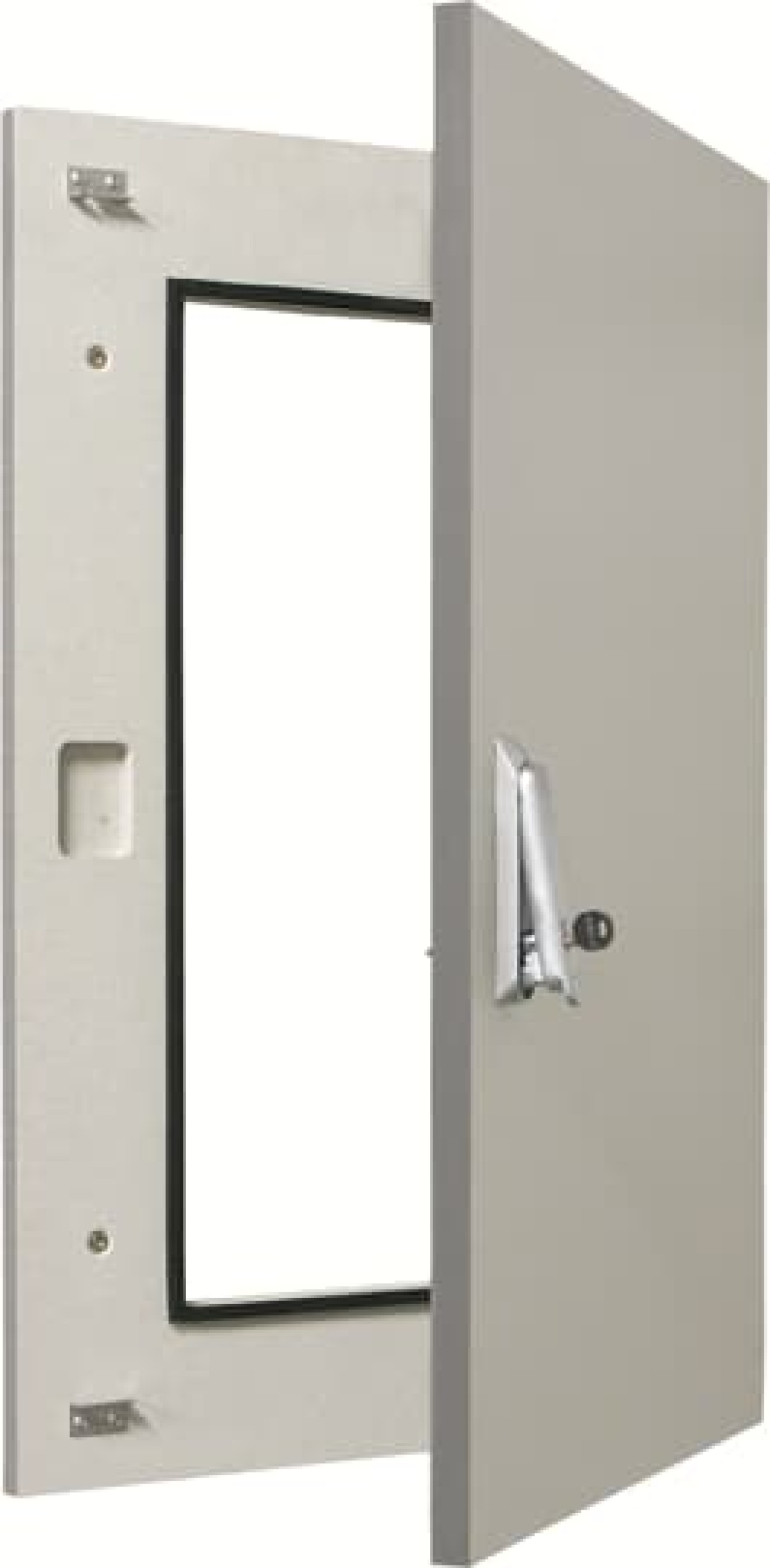

Fire protection door, 1045 mm x 795 mm x 51 mm, IP54
Nortécnica Ref:
EAN:
4011617410508
Description
Technical Information
Attributes
Colour
Grey
Largura
795
Model
Protective door
Altura
1045
Profundidade
51
EMC-version
No
Material
-
Degree of protection IP
IP54
Surface finishing
Other
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
Fire protection door, series VF, for the internal use, with closed doorframe and door, degree of protection IP54, fire resistance 30 min tested according to , Reduce fire load 30 min in line with , Maintain functionality 30 min in line with , Surface-coated, in RAL 7035, enclosure out of non flammable material, single-leaf door, door out of non flammable material, with Swivel handle with half cylinder, door opening angle 180 degree, door hinge right, dimensions in mm (H x W x D): 1045 x 795 x 51, Shutter frame dimensions in mm (H x W x D): 1045 x 795 x 22, Grid unit 5 GU, Overall height 1, panel width 2, Space units 120
