Cabinets are delivered assembled. The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP55 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth. Rated insulation voltage Ui= 1000V PSS3305 cabinet 750x750x320 with continuous doorIP55, IK10
Cabinets

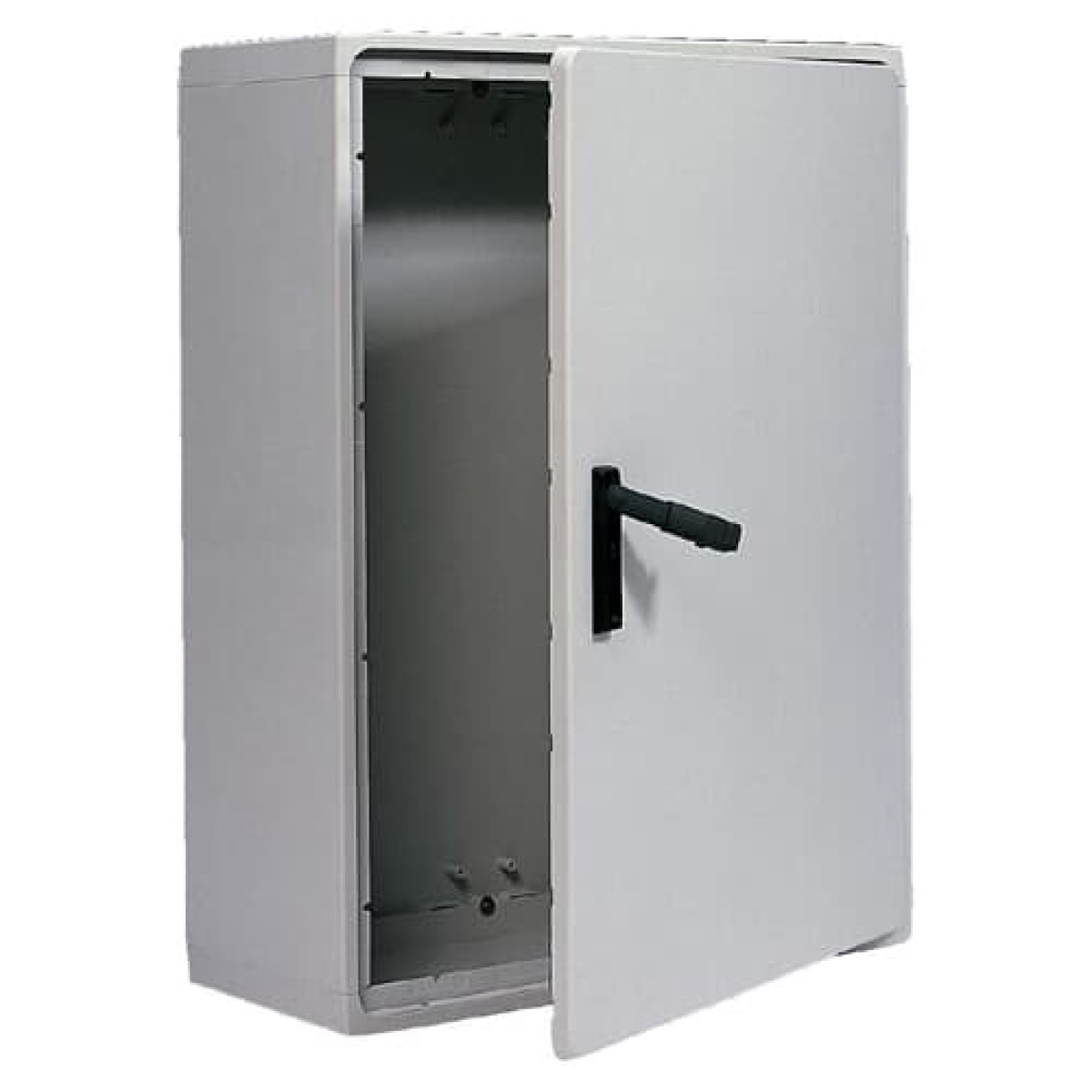

PS833197 POLYSAFE ENCL. IP55 PL. DOOR 750X750X320
Nortécnica Ref:
EAN:
5411815251313
Description
Technical Information
Attributes
Mounting method
Floor installation
Protection class according to IEC 61140
II
Colour
Grey
Width
750.00
Height
750.00
Depth
320.00
RAL-number
7035
With mounting plate
No
Surface protection
Untreated
Built-in depth
286
Quantidade de filas
0
Type of covering
Door
Number of conduit inlets
0
Extension possible
Yes
Inner depth
312
Housing material
Plastic
Circuit integrity
None
Width in number of modular spacings
0
Suitable for outdoor use
Yes
Impact strength
IK07
Number of modules
0
Type of door
Single
Degree of protection IP
IP54
Transparent coverdoor
No
With lock
Yes
Suitable for lightning protection
No
Nominal current In
-
Material plate thickness cabinet
4
Material plate thickness doorcover
4
Cover model
Closed
Number of openings for flange plates
0
Degree of protection NEMA
12
Cover with overpressure release
No
Brands
ABB
Long Description
Cabinets are delivered assembled. The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP55 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth. Rated insulation voltage Ui= 1000V PSS3305 cabinet 750x750x320 with continuous doorIP55, IK10
