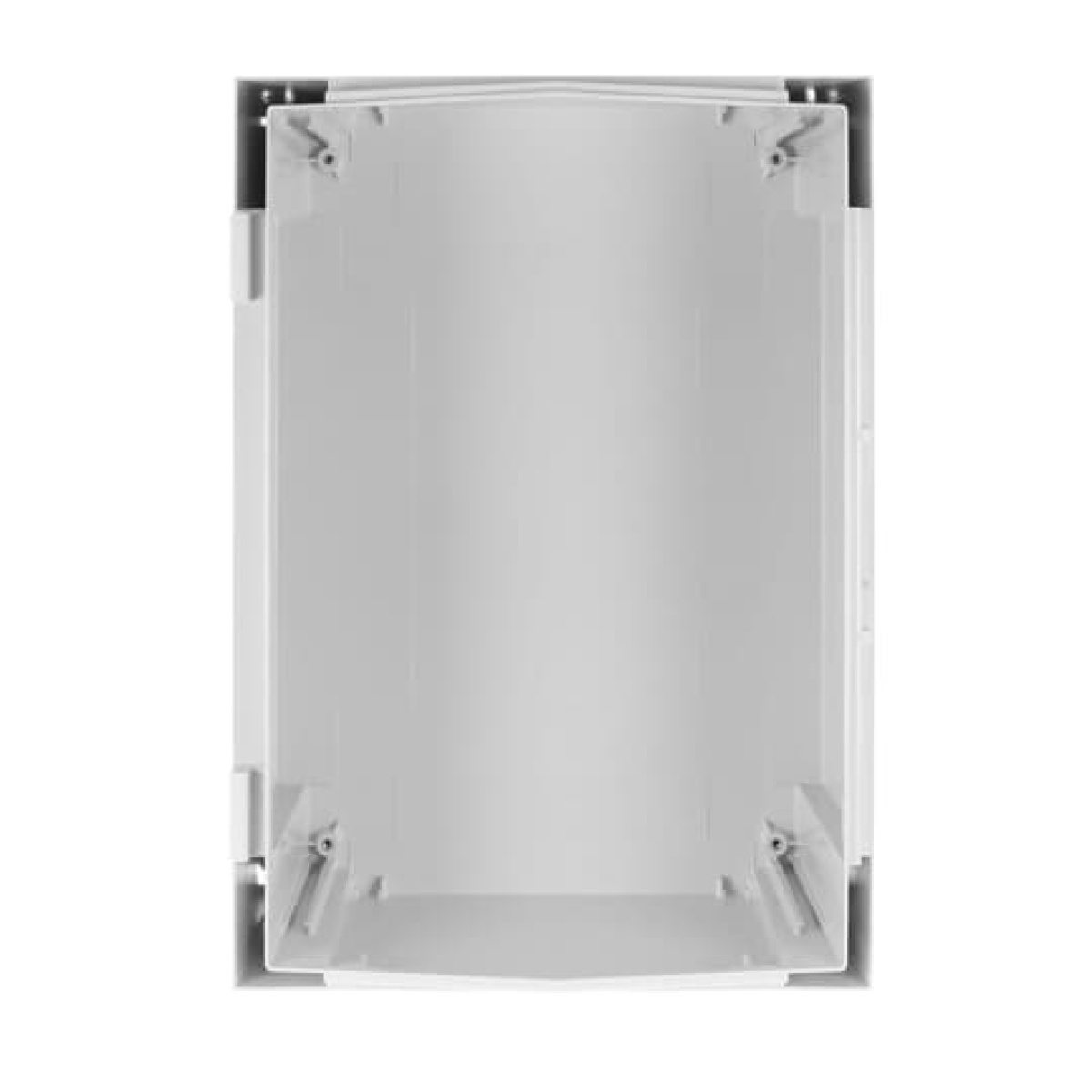

The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA75 cabinet 735x535x270 ARIA, double bit 3mm, 3-point locking IP66, IK08
Description
Technical Information
Attributes
Mounting method
EV000384
Protection class according to IEC 61140
EV000583
Colour
Grey
Largura
535
Altura
735
Profundidade
735
Número RAL
7035
With mounting plate
No
Número de portas
-
Número de bloqueios
-
Surface protection
EV006034
Profundidade incorporada
-
Quantidade de filas
0
Type of covering
EV004216
Number of conduit inlets
0
Suitable for wall mounting
-
Pre-stamping
-
EMC-version
-
Extension possible
No
With glazed door
-
Profundidade interior
248
Couplable
-
Material quality
-
Housing material
EV000139
Integridade do circuito
EV000494
Material
-
Largura em número de módulos
0
Suitable for outdoor use
Yes
Impact strength
IK08
Number of modules
0
Type of door
EV002646
Degree of protection IP
IP66
Número de orifícios do conector
-
EF005774
-
Suitable for metrical mounting
-
Mounting plate depth-adjustable
-
Transparent coverdoor
No
With ventilation door
-
With lock
Yes
Surface finishing
Untreated
With rear door
-
Suitable for wall built-in
-
Suitable for lightning protection
No
With cover
-
Nominal current In
-
With door
-
Material plate thickness cabinet
3
Material plate thickness doorcover
3
Cover model
EV000116
Pitched roof
-
Number of openings for flange plates
0
Pole fastening
-
Transparent cover
-
Degree of protection NEMA
12
Dissipação térmica Delta T20K segundo IECTR 60890
-
Carga máxima admissível segundo IEC 62208
-
Carga máx. admissível das portas segundo IEC 62208
-
Carga máx. admissível da platine segundo IEC 62208
-
Floor standing wall model
-
Cover with overpressure release
-
Freestanding
-
Corner model
-
Intermediate mounting
-
Brands
ABB
Descrição Longa
The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA75 cabinet 735x535x270 ARIA, double bit 3mm, 3-point locking IP66, IK08
