Interior fitting system, Distribution panels, mounted on EDF-Profile, for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
Modular Panels

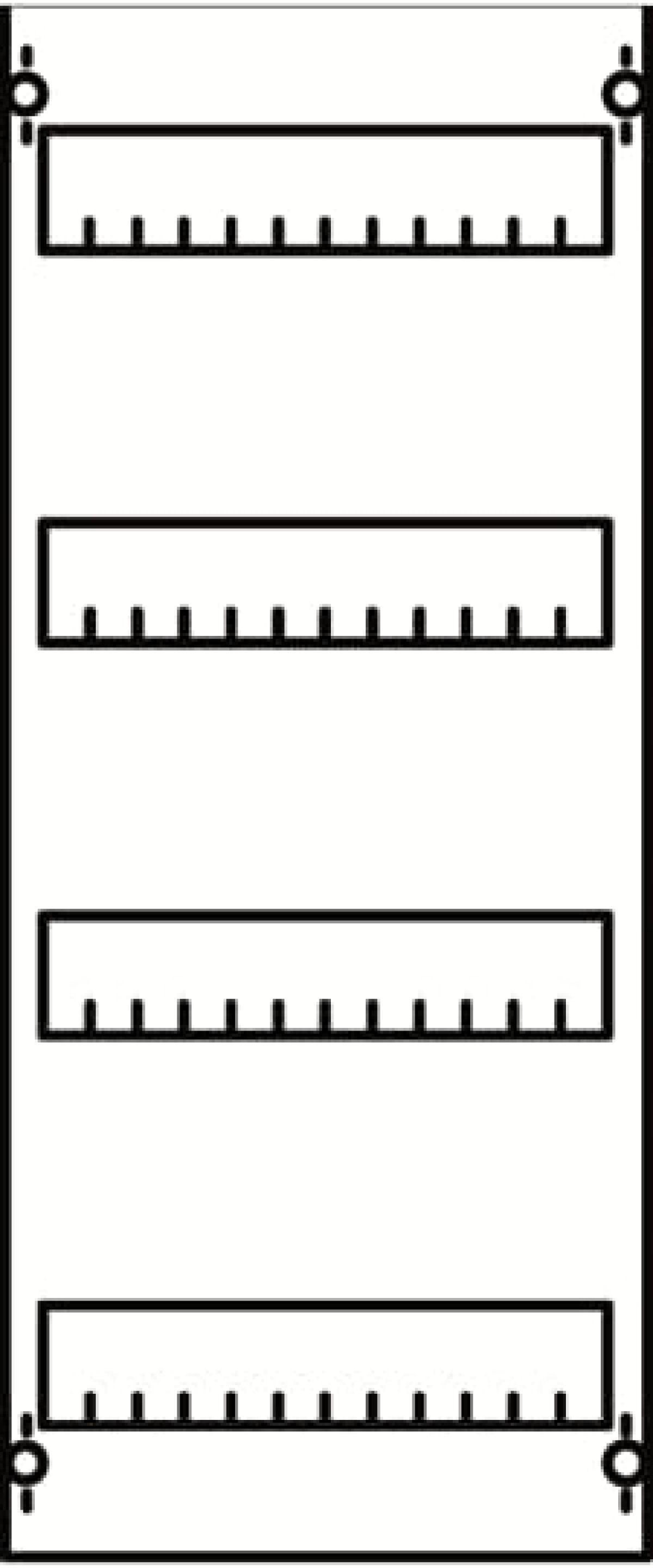

DIN rail mounting devices 600 mm x 250 mm x 120 mm , 4 , 0
Nortécnica Ref:
EAN:
4011617778028
Description
Technical Information
Attributes
Width
250
Height
600
Depth
120
With mounting plate
No
Type of covering
With notch
With cover
Yes
Number of DIN-rails
4
Number of modular spacings per DIN-rail
12
With N-PE clamp
No
Termination point meter location
No
Brands
ABB
Long Description
Interior fitting system, Distribution panels, mounted on EDF-Profile, for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
