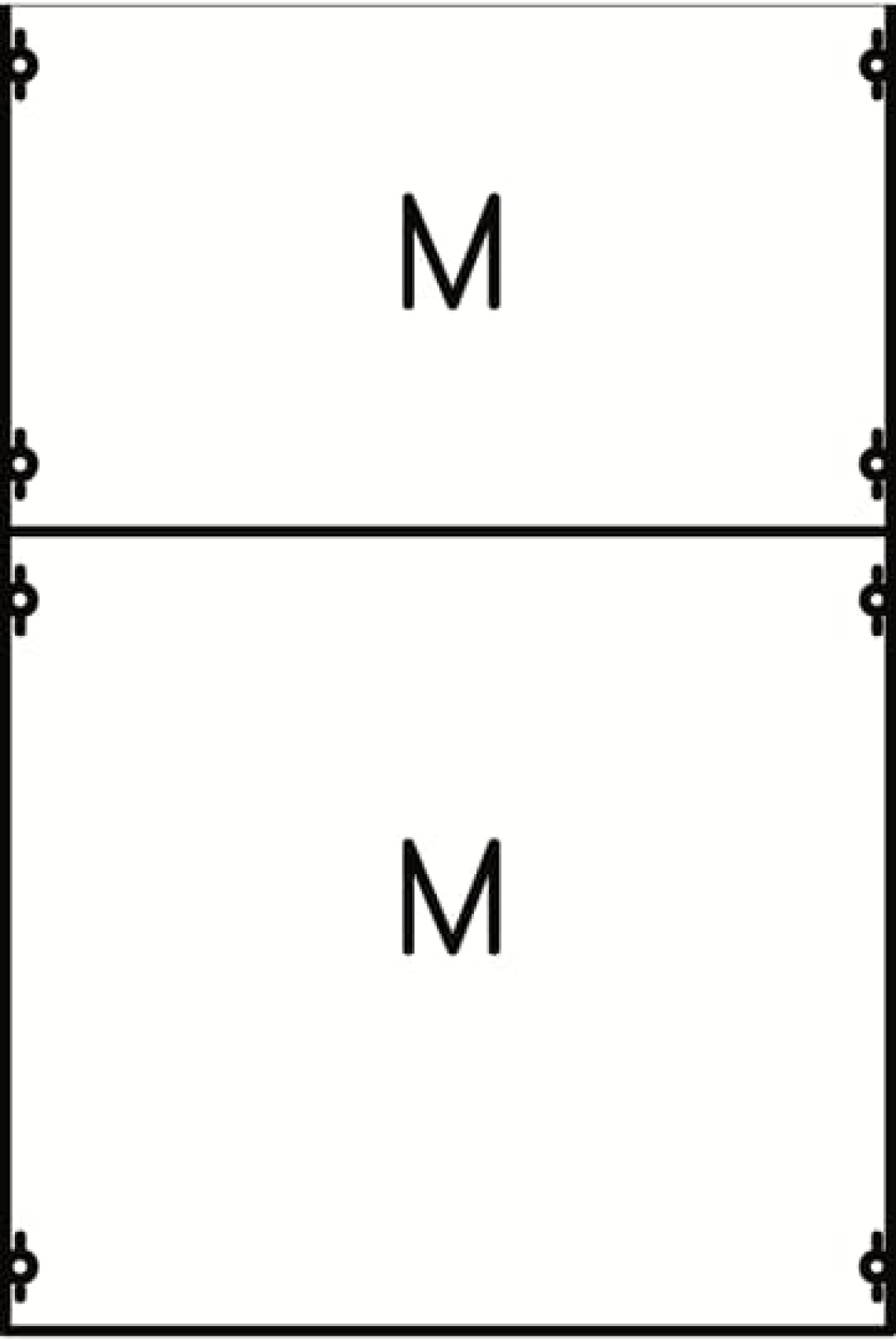

Interior fitting system, Distribution panels, mounted on EDF-Profile, for Mounting plate, Grid unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 143 mmcovers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
Modular Panels

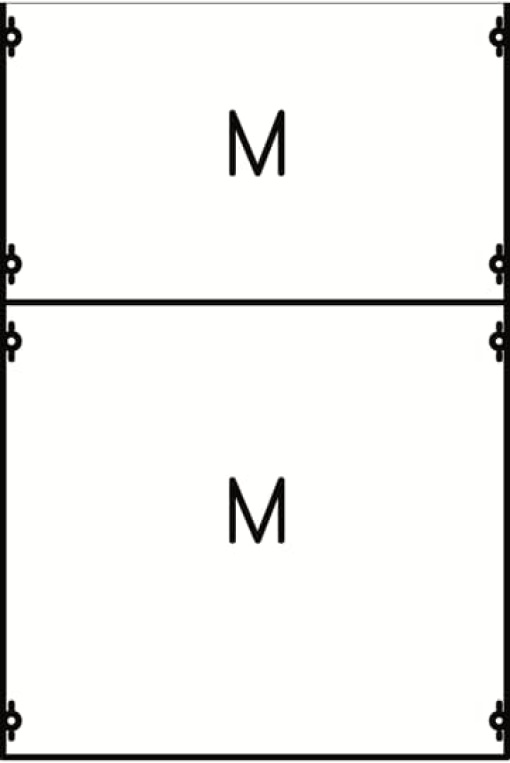

Mounting plate 750 mm x 500 mm x 120 mm , 0 , 1
Nortécnica Ref:
EAN:
4011617376156
Description
Technical Information
Attributes
Largura
500
Altura
750
Profundidade
120
With mounting plate
Yes
Type of covering
Closed
With cover
Yes
Number of DIN-rails
0
Number of modular spacings per DIN-rail
0
With N-PE clamp
No
Termination point meter location
No
Brands
ABB
Descrição Longa
Interior fitting system, Distribution panels, mounted on EDF-Profile, for Mounting plate, Grid unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 143 mmcovers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
