The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP65 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth.Rated insulation voltage Ui= 1000V PSS542 Cabinet 1250x1000x320 2T 2 doors with right-hand hingeIP65, IK10
Modular Panels

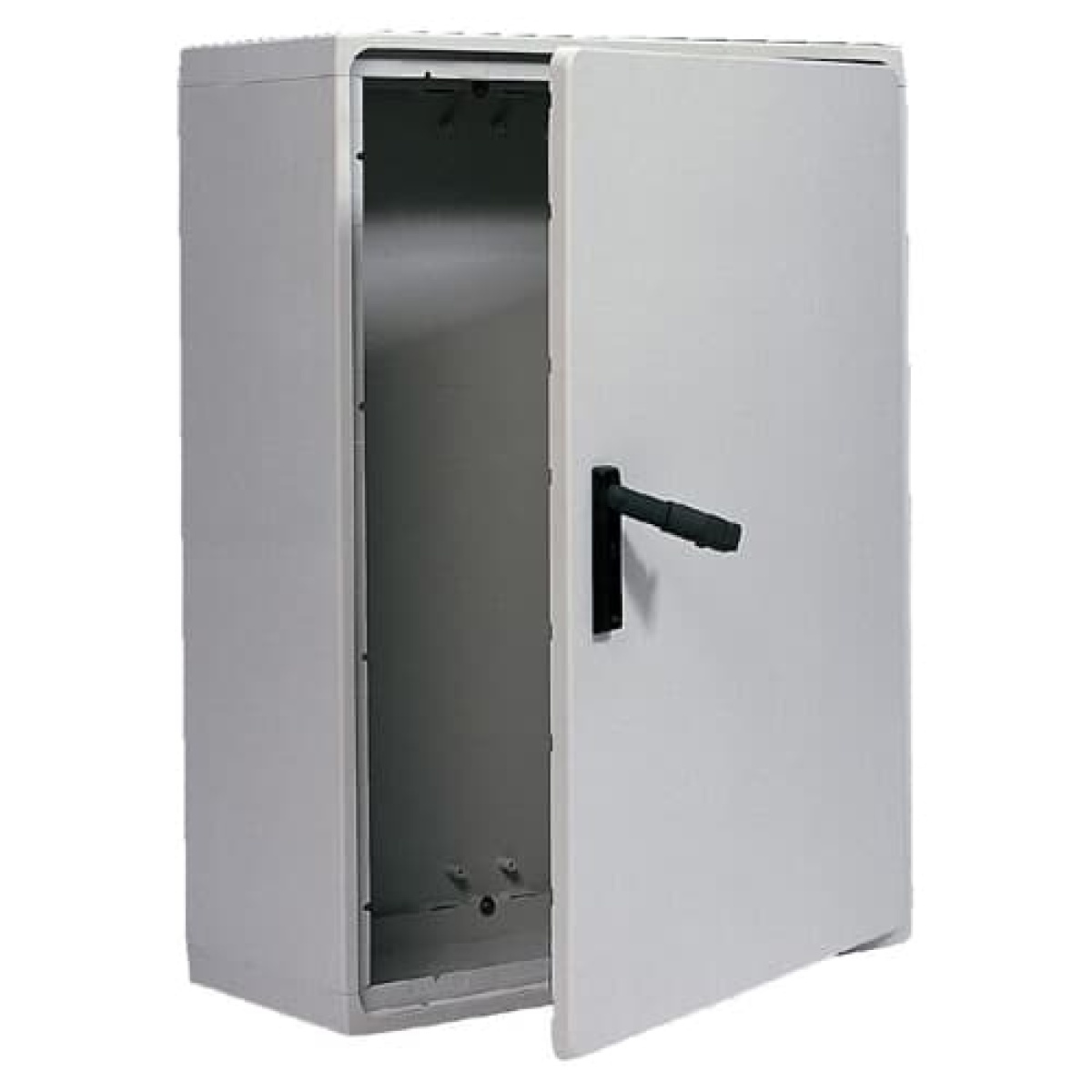

POLYSAFE ENCL. IP65 1250X1000X320 DD
Nortécnica Ref:
EAN:
5411815251153
Description
Technical Information
Attributes
Mounting method
EV012274
Protection class according to IEC 61140
EV000583
Colour
Grey
Width
1000
Height
1250
Depth
1250
RAL-number
7035
With mounting plate
No
Number of doors
-
Number of locks
-
Surface protection
EV006034
Built-in depth
286
Quantidade de filas
0
Type of covering
EV004216
Number of conduit inlets
0
Suitable for wall mounting
-
Pre-stamping
-
EMC-version
-
Extension possible
Yes
With glazed door
-
Inner depth
312
Couplable
-
Material quality
-
Housing material
EV000139
Circuit integrity
EV000494
Material
-
Width in number of modular spacings
0
Suitable for outdoor use
Yes
Impact strength
IK07
Number of modules
0
Type of door
EV003602
Degree of protection IP
IP65
Number of connector holes
-
EF005774
-
Suitable for metrical mounting
-
Mounting plate depth-adjustable
-
Transparent coverdoor
No
With ventilation door
-
With lock
Yes
Surface finishing
Untreated
With rear door
-
Suitable for wall built-in
-
Suitable for lightning protection
No
With cover
-
Nominal current In
-
With door
-
Material plate thickness cabinet
4
Material plate thickness doorcover
4
Cover model
EV000116
Pitched roof
-
Number of openings for flange plates
0
Pole fastening
-
Transparent cover
-
Degree of protection NEMA
12
Thermal dissipation Delta T 20 K according to IECTR 60890
-
Max. permitted load of the enclosure according to IEC 62208
-
Max. permitted load of the doors according to IEC 62208
-
Max. permitted load of the mounting plate according to IEC 62208
-
Floor standing wall model
-
Cover with overpressure release
-
Freestanding
-
Corner model
-
Intermediate mounting
-
Brands
ABB
Descrição Longa
The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP65 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth.Rated insulation voltage Ui= 1000V PSS542 Cabinet 1250x1000x320 2T 2 doors with right-hand hingeIP65, IK10
