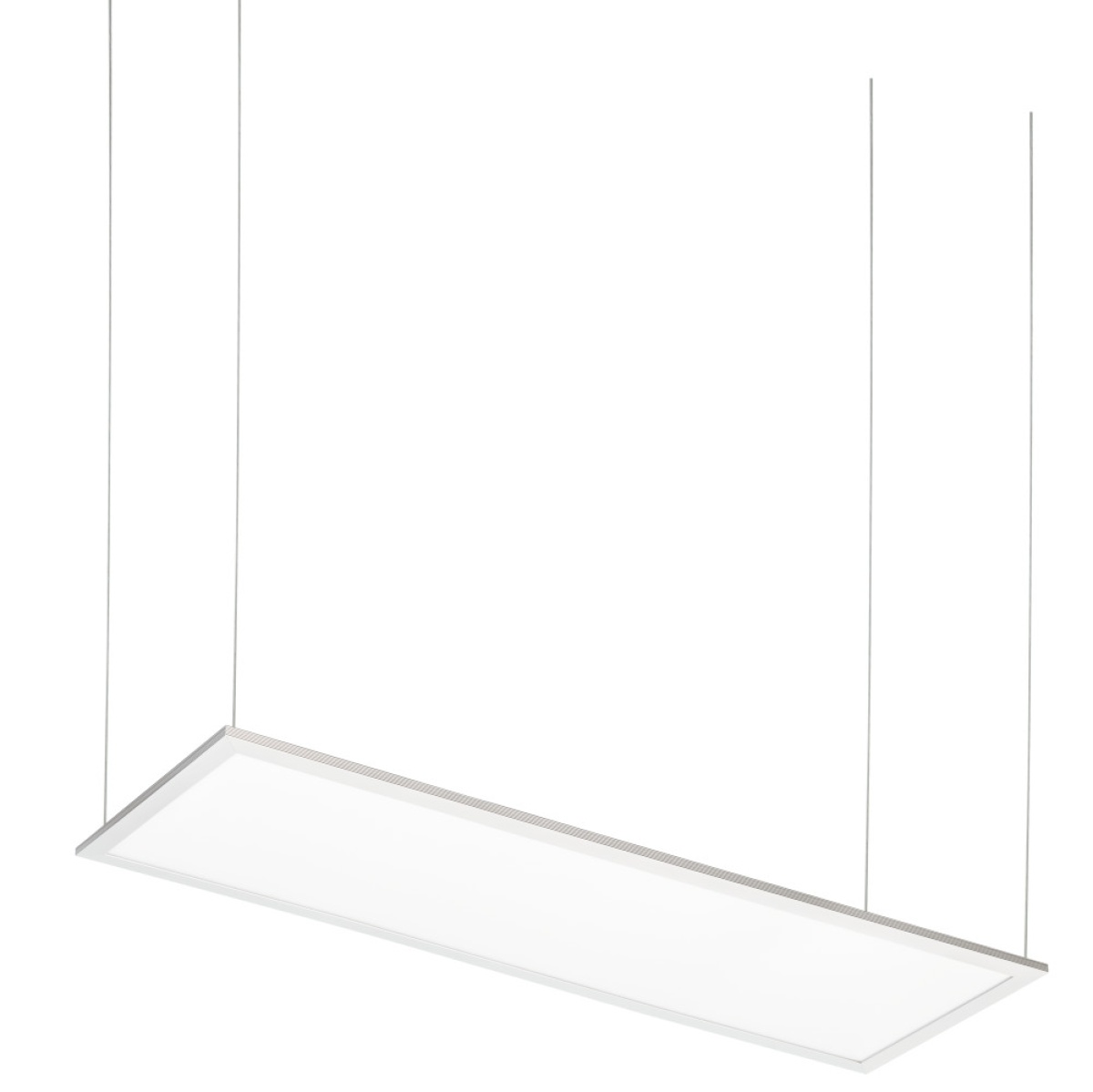

BEG 93667 PL2-30120D-LED-AG-DALI-TW luminária LED
Interior
BEG 93667 PL2-30120D-LED-AG-DALI-TW luminária LED
Nortécnica Ref:
EAN:
4007529936670
Description
Technical Information
Attributes
Protection class according to IEC 61140
II

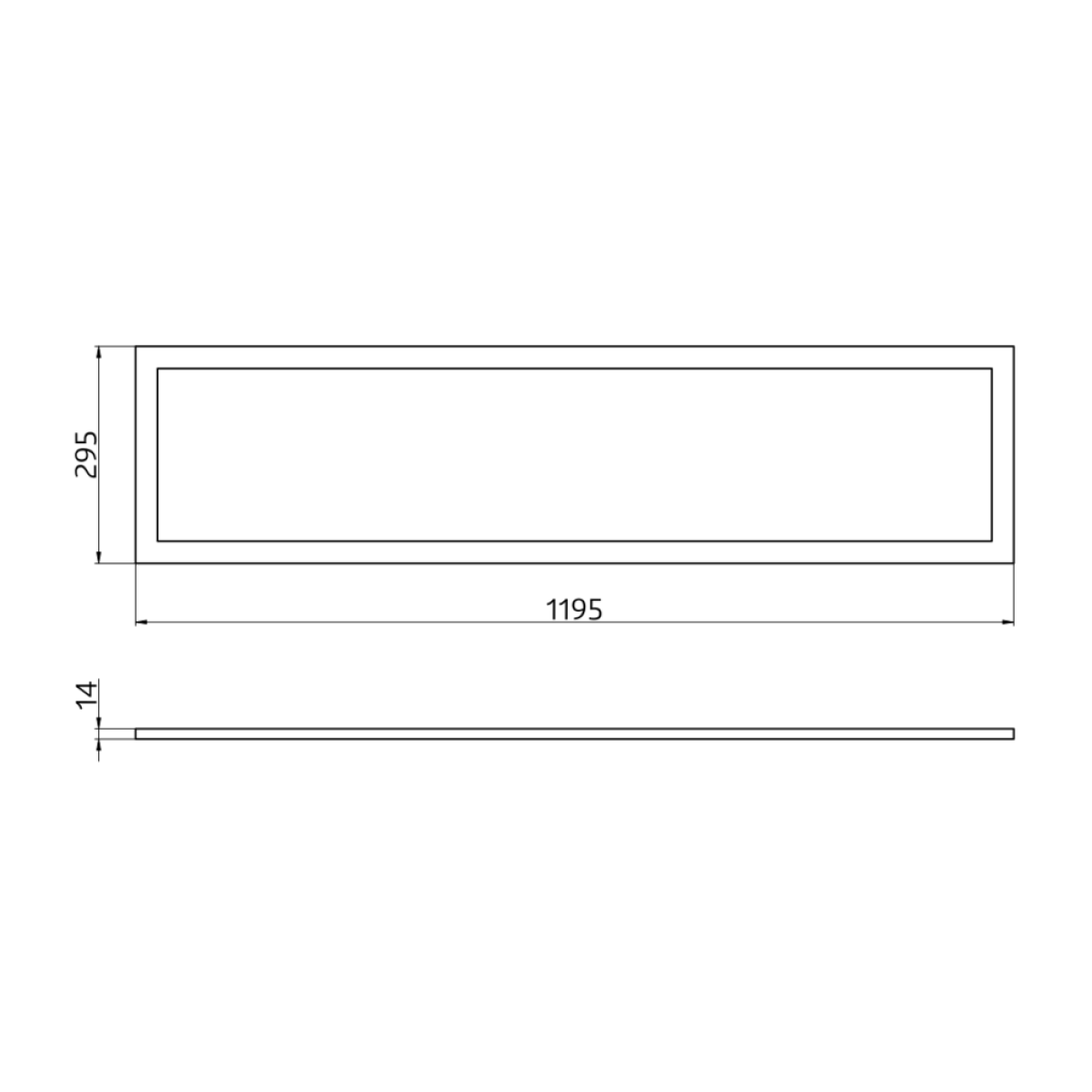

Largura
1195.0
Reflector
-
Lamp holder
-
Secção transversal do condutor
1.5
Connection type
-
Housing colour
White
Voltage type
AC
Suitable for lamp power
-
Type of grid
-
Type of control gear
-
Índice de restituição de cor CRI
80-89
Diâmetro
-
Número de polos
-
Comprimento
295.0
Alturaprofundidade
14.0
Housing material
Aluminium
Lamp type
LED not exchangeable
Direct-indirect proportion separately controllable
-
Suitable for light line configuration
-
Suitable for emergency lighting
No
Light outlet
Direct/indirect
Light distribution
-
Material cover
Plastic, opal
Pendant length
-
Impact strength
-
Nominal voltage
200
240
Fonte de alimentação de emergência integrada
-
Degree of protection IP
IP20
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
-
Adequado para número de lâmpadas
-
With control gear
Yes
With suspension
Yes
Suitable for workplace according to EN 12464-1
-
Nominal current
-
Colour temperature
2700.0
6500.0
Potência máx. do sistema
70
EF009349
-
Colour of light
White
Constant light output CLO
-
IFTTT support available
-
Type of wiring
-
Vida útil nominal L70B50 a 25 C
-
EF011871
60000
Colour consistency McAdam ellipse
-
Degree of protection NEMA
-
Filament test according to IEC 60695-2-11
-
EF012150
-
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming potentiometer integrated
No
EF012157
No
Regulação LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off trailing edge
No
Dimming phase cut-on leading edge
No
Dimming programmable
No
Dimming RF
No
Regulação por redução da onda sinusoidal
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
EF012169
No
Light distributor
Diffuser lens/optic/panel
Rendimento da luminária
93.0
Dimming DSI
No
EF012487
-
EF012488
-
EF012489
-
EF012490
-
Fator de brilho unificado UGR
-
Operation by Bluetooth
Compatible with Apple HomeKit
-
Compatible with Google Assistant
-
Compatible with Amazon Alexa
-
Número max. de luminárias por disjuntor C16
Número max. de luminárias por disjuntor B16
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 75 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 75 000 h, temperatura 25 C tq
-
Dimming DALI-2
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Colour of light adjustable
-
Luminous flux adjustable
-
Beam angle adjustable
-
Exchangeable control gear
-
Energy efficiency class of the light source according to EU regulation 20192015
Fator de potência
0.91
Brands
B.E.G.
