Mini detetor de presença, sem fonte de alimentação adicional, adequado para locais de elevada humidade, Um canal para comandar a iluminação, Possibilidade de comando manual através de botão de pressão, Operação simples com controle remoto (necessário), Versão de dispositivo mestre, A área de deteção pode ser expandida recorrendo a dispositivos escravos, Montagem com aro de bloqueio (incluído) em luminárias ou com molas de fixação para tetos falsos, Valores pré-definidos de fábrica: 10 min. e 500 lux
Motion and Presence Detectors

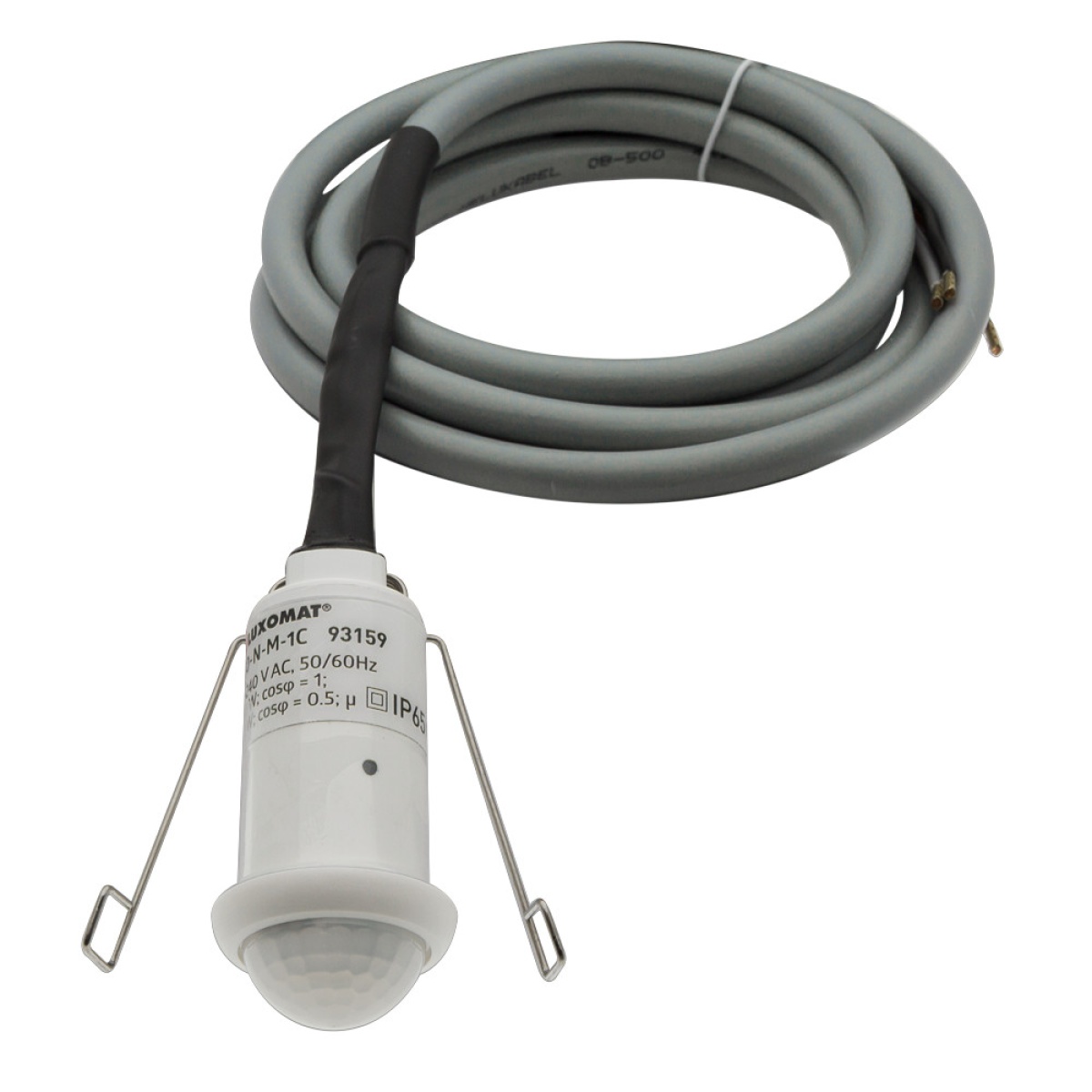

BEG 93159 PICO-N-M-1C-FC Detetor de presença
Nortécnica Ref:
28BE93159
EAN:
4007529931590
Description
Technical Information
Attributes
Nominal voltage
240
Mounting method
Other
Colour
White
Width
-
Model
Presence detector
Halogen free
Yes
Height
60.0
Depth
-
Connection type
-
Surface protection
-
Creep-under protection
Yes
Voltage type
AC
Switch-on delay
0
Switch-off delay
0
Built-in depth
-
Frequency
50
60
With remote control
No
Diameter
33.0
Built-in width
-
Built-in diameter
-
Staircase light controller
Yes
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Other
Max. reach frontally
6
Max. reach sideways
5
Max. switching power
2300
EF001731
-25
50
Max. starting current
-
Material
Plastic
Response value sensitivity adjustable
Yes
Dim function with dimmer basic element
No
Response value luminosity
10
2000
Suitable for C-load
No
Diameter reach on floor
10
Remote operation
No
HVAC-control
No
Constant light control
-
Substation input
Yes
RAL-number similar
9010.0
With signal unit
No
Control current
1
Teach-function for response value luminosity
No
Networkable
No
Forced switch off
No
Scan angle
-
Built-in length
-
Impact strength
IK04
Degree of protection IP
IP65
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
-
Min. switch-on time
15
Max. duty cycle
30
EF006644
No
Response value luminosity adjustable
Yes
Optimum mounting height
2.5
Swivel range sensor, horizontal
-
Swivel range sensor, vertical
-
Number of switching zones
78.0
With DALI interface
No
IFTTT support available
No
Forced switch on
-
Min. starting current
-
Min. depth of built-in installation box
-
Max. presence range
12.0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
300.0
Sensor type
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
B.E.G.
Long Description
Mini detetor de presença, sem fonte de alimentação adicional, adequado para locais de elevada humidade, Um canal para comandar a iluminação, Possibilidade de comando manual através de botão de pressão, Operação simples com controle remoto (necessário), Versão de dispositivo mestre, A área de deteção pode ser expandida recorrendo a dispositivos escravos, Montagem com aro de bloqueio (incluído) em luminárias ou com molas de fixação para tetos falsos, Valores pré-definidos de fábrica: 10 min. e 500 lux
