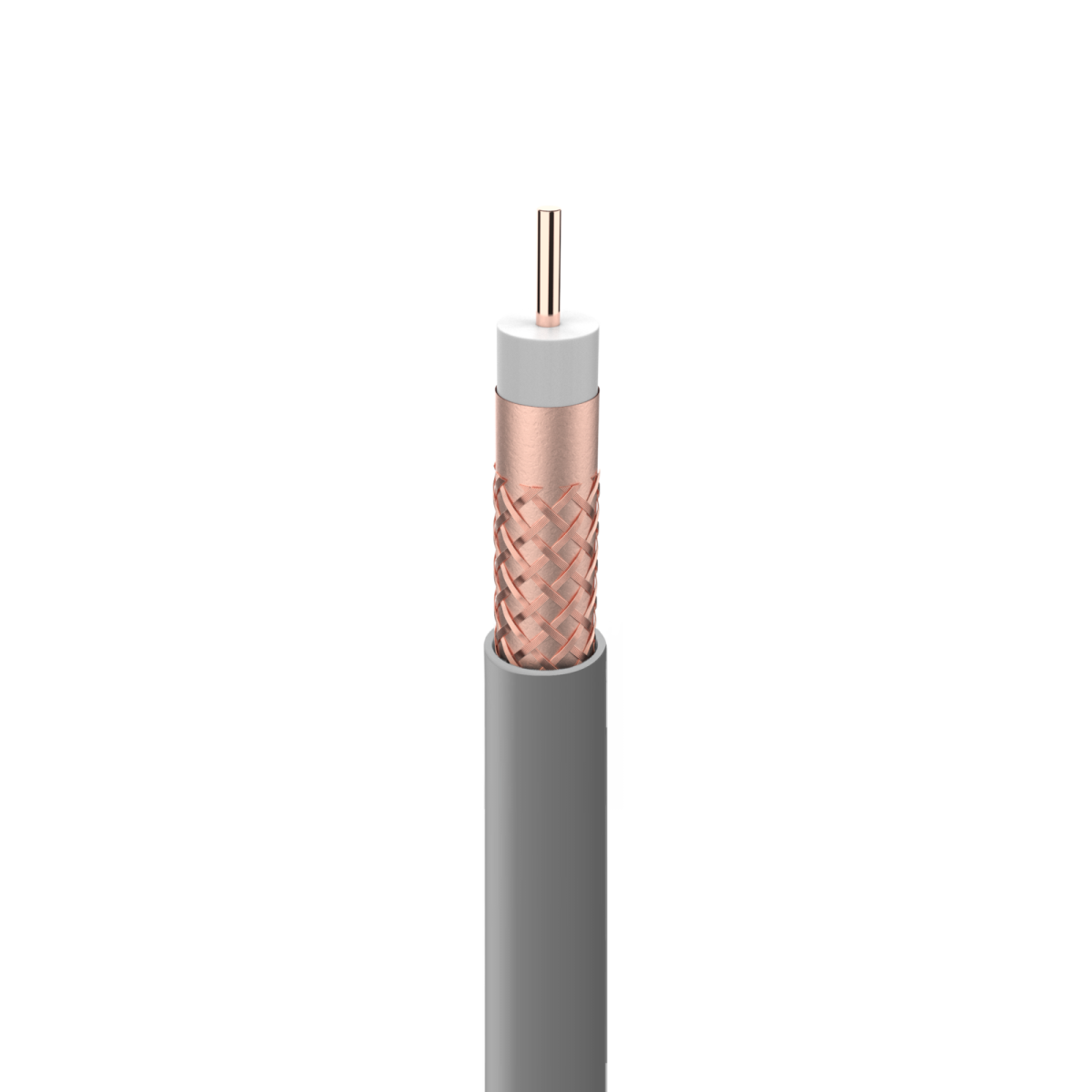

7 RtC 12'' underground coaxial cable Dca Euroclass, A Class shielded
Coaxial Cable
7 RtC 12'' underground coaxial cable Dca Euroclass, A Class shielded
Manufacturer Ref:
214001
Nortécnica Ref:
26214001
EAN:
8424450214831
Description
Technical Information
Attributes
EF000024
Yes
Dielectric
Polyethylene, foamed (foam PE)
Weight
-
EF001024
Yes
Colour outer sheath
Grey
Material outer sheath
Other
Type of outer conductor
Foil + braiding
Inner conductor material
Copper
Characteristic impedance
75
Diameter inner conductor
2.7
Diameter outer conductor
0.12
Outer conductor material
Copper
Inner conductor category
Class 1 = solid
Permitted cable outer temperature during assemblinghandling
-25
70
Permitted cable outer temperature after assembling without vibration
-25
70
Suitable for underground installation
Yes
Outer diameter approximate
15
EF009769
Yes
Inner conductor surface
Bare
Outer conductor surface
Bare
Reaction-to-fire according to EN 13501-6 Class
Dca
Reaction-to-fire according to EN 13501-6 Smoke production
s2
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
d2
Reaction-to-fire according to EN 13501-6 Acidity
a1
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
75
Number of screen layers
2
Specification material outer sheath
Other
Brands
Televes
