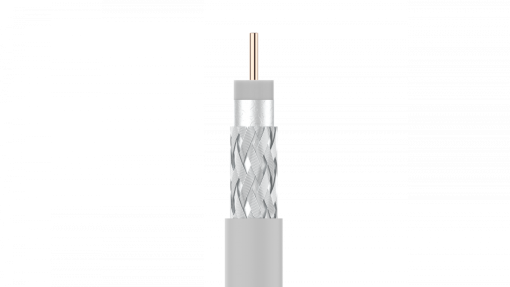

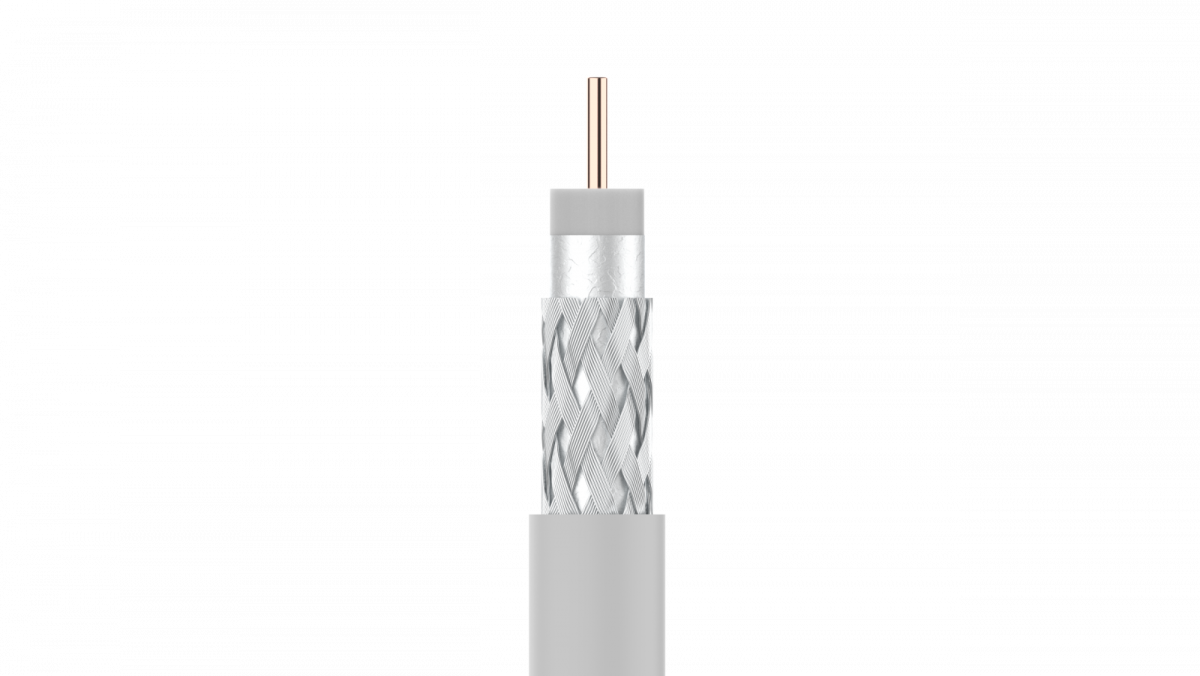

CXT 19 VAtC coaxial cable Eca Euroclass, A Class shielded
Coaxial Cable
CXT 19 VAtC coaxial cable Eca Euroclass, A Class shielded
Manufacturer Ref:
212801
Nortécnica Ref:
26212801
EAN:
8424450137659
Description
Technical Information
Attributes
EF000024
No
Dielectric
Polyethylene, foamed (foam PE)
Weight
-
EF001024
Yes
Colour outer sheath
White
Material outer sheath
Polyvinyl chloride (PVC)
Type of outer conductor
Foil + braiding
Inner conductor material
Copper
Characteristic impedance
75
Diameter inner conductor
1
Diameter outer conductor
0.12
Outer conductor material
Aluminium
Inner conductor category
Class 1 = solid
Permitted cable outer temperature during assemblinghandling
-30
70
Permitted cable outer temperature after assembling without vibration
-30
70
Suitable for underground installation
No
Outer diameter approximate
6.5
EF009769
No
Inner conductor surface
Bare
Outer conductor surface
Bare
Reaction-to-fire according to EN 13501-6 Class
Eca
Reaction-to-fire according to EN 13501-6 Smoke production
-
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
-
Reaction-to-fire according to EN 13501-6 Acidity
-
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
32.5
Number of screen layers
2
Specification material outer sheath
Other
Brands
Televes
