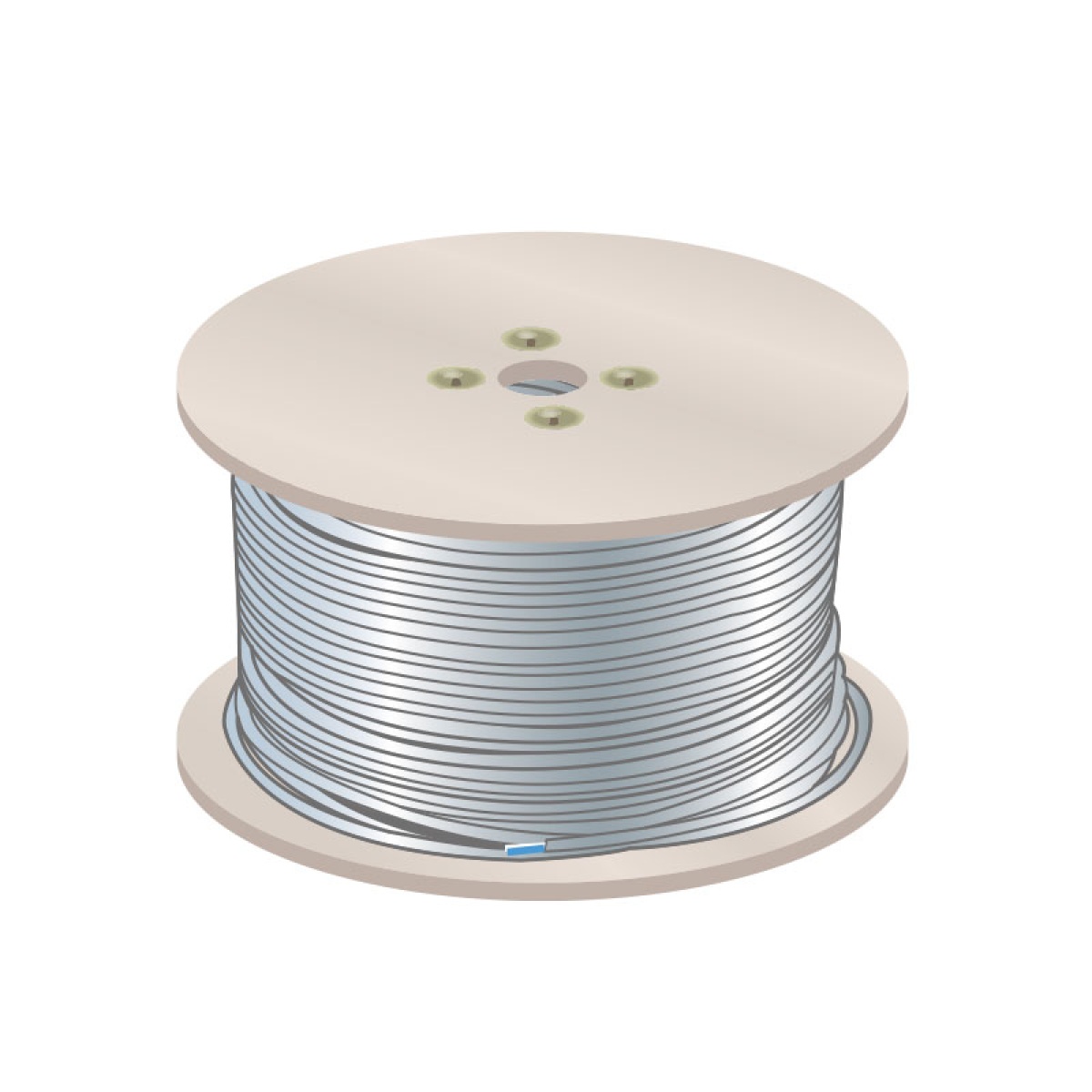

Cabo BUS SCS - 500m em carretel
Data and Communication Cable (Copper)
Cabo BUS SCS - 500m em carretel
Manufacturer Ref:
049275
Nortécnica Ref:
EAN:
3414971328006
Description
Technical Information
Attributes
EF000024
No
Nominal cross section conductor
0.56
Material core insulation
Other
Core identification
Colour
Cable type
-
Weight
-
Drain wire
-
Nominal voltage U
-
Stranding element
Pairs
Colour outer sheath
White
Category
None
Diameter conductor
7.3
Conductor material
-
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Characteristic impedance
-
Conductor category
Class 5 = flexible
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
-15
70
Permitted cable outer temperature after assembling without vibration
-15
70
Number of stranding elements
1
Protective sheath
None
Number of cores
2
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
Cable width approximate
-
Cable height approximate
-
Low smoke according to EN IEC 61034-2
Yes
Stranding
Bundle
Outer diameter approximate
7.3
With rodent protection
-
NVP value
-
Oil resistant according to EN IEC 60811-404
No
Conductor surface
Bare
Longitudinal water blocking cable
No
Radial water blocking cable
No
Reaction-to-fire according to EN 13501-6 Class
Cca
Reaction-to-fire according to EN 13501-6 Smoke production
s1b
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
d1
Reaction-to-fire according to EN 13501-6 Acidity
a1
AWG size
20
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
-
Specification core insulation
Other
Specification material outer sheath
Polyethylene (PE)
Material armouring
-
Cable geometry
-
Core identification according to HD 308 S2
-
Suitable as telephone cable
-
Suitable as computer data cable
-
Suitable as signalling cable
-
Certified for shipboard application
-
Max. tensile strength during installation
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
-
Flame retardant according to IEC 60332-3-22 Cat A
-
Flame retardant according to IEC 60332-3-23 Cat B
-
Flame retardant according to IEC 60332-3-24 Cat C
-
Flame retardant according to IEC 60332-3-25 Cat D
-
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
-
Circuit integrity according to IEC 60331-23
-
Number of sheath layers
-
With rip cord
-
Suitable for use as security alarm cable
-
Duplex
-
Circuit integrity according to DIN 4102-12
-
Compatible with Grade2TV according to XP-C 90-483
-
Compatible with Grade3TV according to XP-C 90-483
-
Cable type according to BS 4737-3.30
-
Rip cord colour according to BS 4737-3.30
-
Compliant with BT British Telecom specification
-
Brands
Legrand
