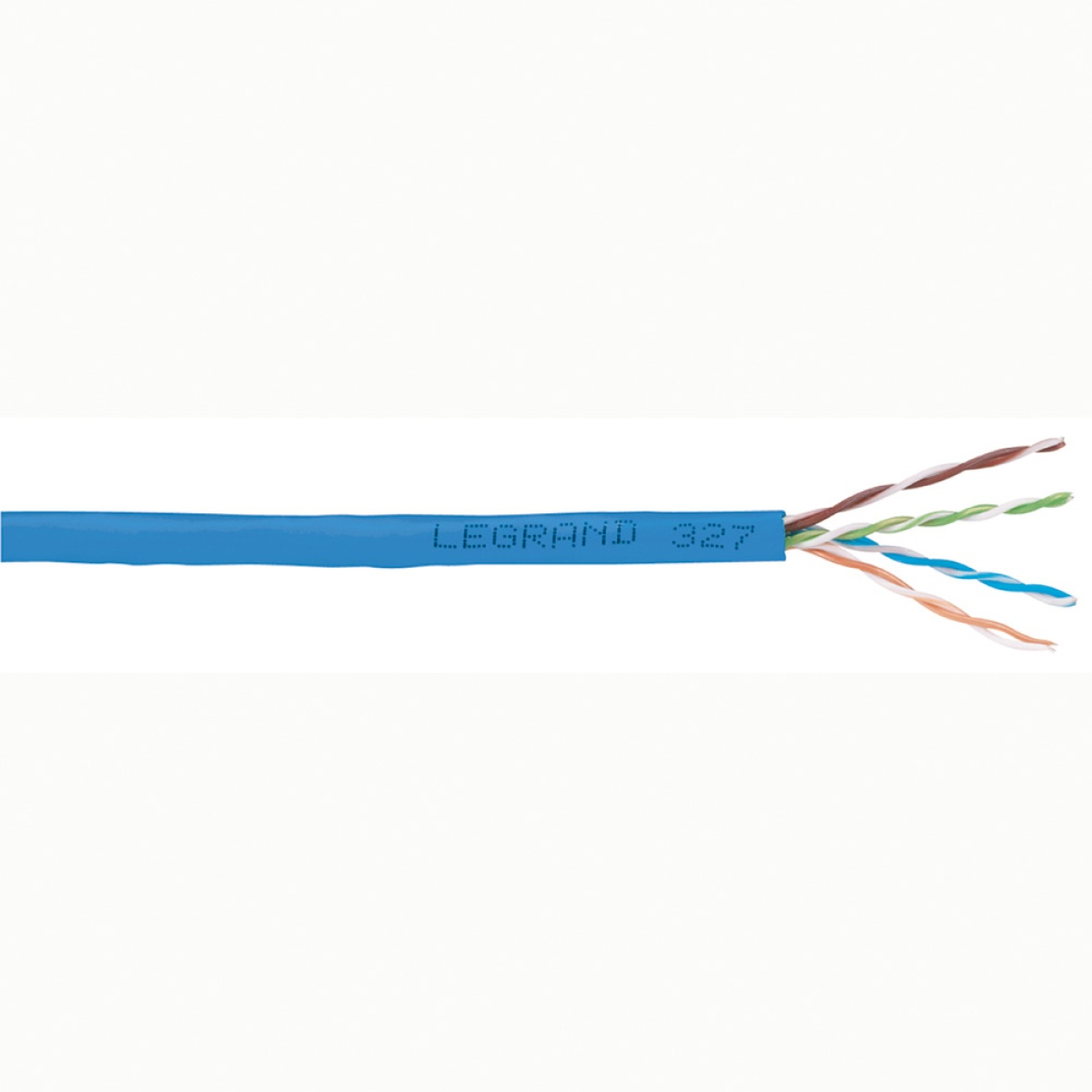

Cabo cat. 6 FUTP 4 pares LSZH - 500 m
Data and Communication Cable (Copper)
Cabo cat. 6 FUTP 4 pares LSZH - 500 m
Manufacturer Ref:
032756
Nortécnica Ref:
03032756
EAN:
3245060327569
Description
Technical Information
Attributes
EF000024
No
Nominal cross section conductor
0.25
Material core insulation
Other
Core identification
Colour
Cable type
F/UTP
Weight
47
Drain wire
No
Nominal voltage U
-
Stranding element
Pairs
Colour outer sheath
Blue
Category
6
Diameter conductor
0.56
Conductor material
Copper
Screen over stranding element
None
Screen over stranding
Foil
Material outer sheath
Other
Characteristic impedance
100
Conductor category
Class 1 = solid
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
0
50
Permitted cable outer temperature after assembling without vibration
-20
60
Number of stranding elements
4
Protective sheath
None
Number of cores
8
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
Cable width approximate
7.2
Cable height approximate
7.2
Low smoke according to EN IEC 61034-2
Yes
Stranding
Bundle
Outer diameter approximate
7.1
With rodent protection
-
NVP value
66
Oil resistant according to EN IEC 60811-404
No
Conductor surface
Bare
Longitudinal water blocking cable
No
Radial water blocking cable
Yes
Reaction-to-fire according to EN 13501-6 Class
Dca
Reaction-to-fire according to EN 13501-6 Smoke production
s2
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
d2
Reaction-to-fire according to EN 13501-6 Acidity
a1
AWG size
23
Min. permitted bending radius, moving application with forced guidance
57
Min. permitted bending radius, moving applicationfree movement
60
Min. permitted bending radius, stationary applicationpermanent installation
28.5
Specification core insulation
Polyethylene (PE)
Specification material outer sheath
Polyethylene (PE)
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
No
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
No
Certified for shipboard application
No
Max. tensile strength during installation
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
Other
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
No
Flame retardant according to IEC 60332-3-22 Cat A
No
Flame retardant according to IEC 60332-3-23 Cat B
No
Flame retardant according to IEC 60332-3-24 Cat C
No
Flame retardant according to IEC 60332-3-25 Cat D
No
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Number of sheath layers
-
With rip cord
No
Suitable for use as security alarm cable
No
Duplex
No
Circuit integrity according to DIN 4102-12
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Cable type according to BS 4737-3.30
-
Rip cord colour according to BS 4737-3.30
-
Compliant with BT British Telecom specification
-
Brands
Legrand
