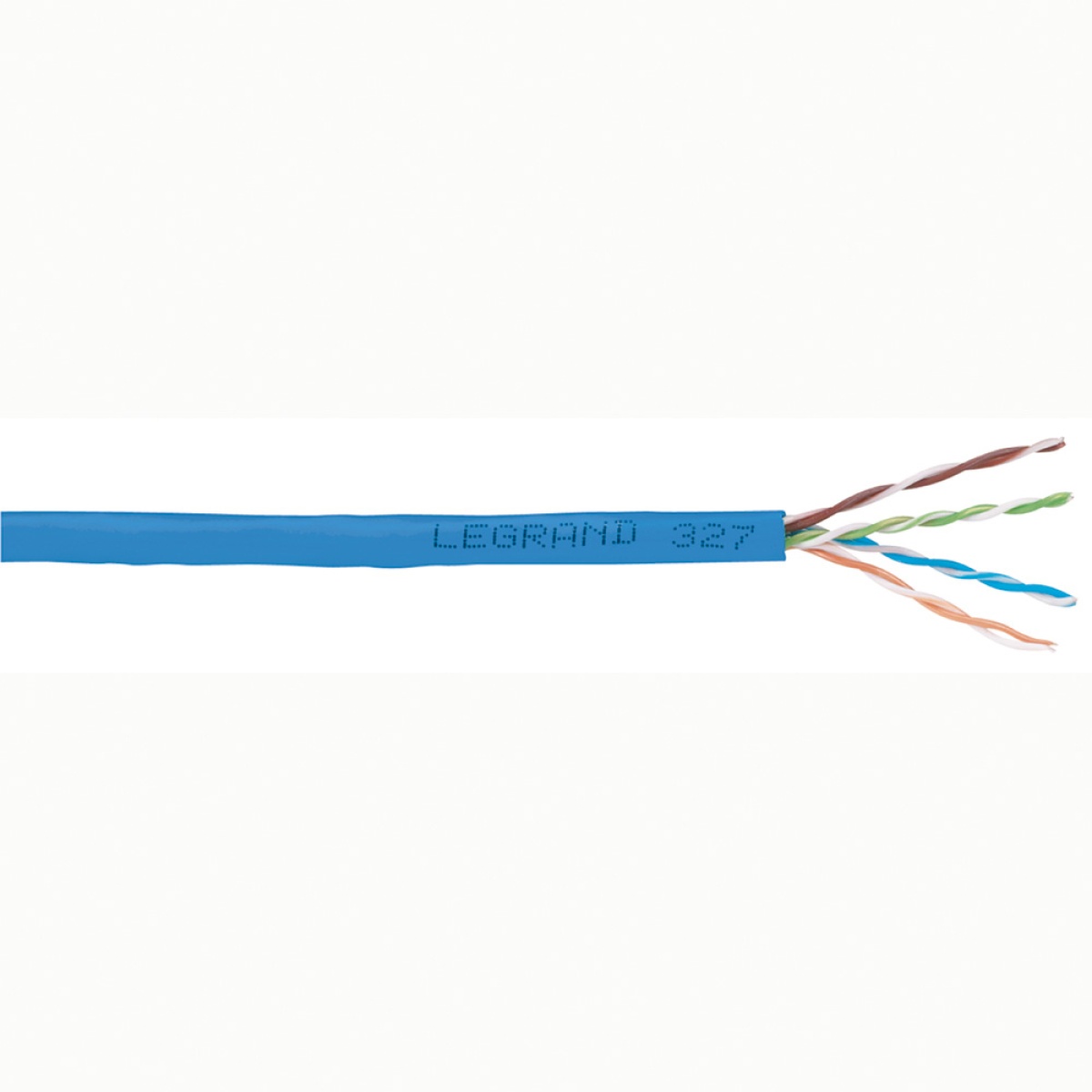

Cabo cat. 6 UUTP 4 pares LSZH - 305 m
Data and Communication Cable (Copper)
Cabo cat. 6 UUTP 4 pares LSZH - 305 m
Manufacturer Ref:
032754
Nortécnica Ref:
03032754
EAN:
3245060327545
Description
Technical Information
Attributes
EF000024
No
Secção nominal do condutor
0.25
Material core insulation
Other
Core identification
Colour
Cable type
U/UTP
Peso
43
Flame retardant
-
Drain wire
No
Integridade do circuito
-
Tensão nominal U
-
Stranding element
Pairs
Colour outer sheath
Blue
Category
6
Diâmetro do condutor
0.56
Conductor material
Copper
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Impedância caraterística
100
Conductor category
Class 1 = solid
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
0
50
Permitted cable outer temperature after assembling without vibration
-20
60
Número de elementos de fiação
4
Protective sheath
None
Número de núcleos
8
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
EF003794
-
Largura aproximada do cabo
5.8
Altura aproximada do cabo
5.8
Low smoke according to EN IEC 61034-2
Yes
Stranding
Bundle
Diâmetro externo aprox.
6.2
With rodent protection
-
EF008027
-
Valor NVP
66
EF009769
-
Oil resistant according to EN IEC 60811-404
No
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
No
Radial water blocking cable
Yes
Reactiontofire according to EN 135016 Class
Dca
Reactiontofire according to EN 135016 Smoke production
s2
Reactiontofire according to EN 135016 Flaming dropletsparticles
d2
Reactiontofire according to EN 135016 Acidity
a1
AWG size
23
Raio mín. de curvatura permitido, aplicação móvel com orientação forçada
50
Raio mín. de curvatura permitido, aplicação móvelmovimento livre
25
Raio mín. de curvatura permitido, aplicação estáticainstalação permanente
-
Specification core insulation
Polyethylene (PE)
Specification material outer sheath
Polyethylene (PE)
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
No
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
No
Certified for shipboard application
No
Tensão máxima de instalação
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
Other
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
No
Flame retardant according to IEC 60332-3-22 Cat A
No
Flame retardant according to IEC 60332-3-23 Cat B
No
Flame retardant according to IEC 60332-3-24 Cat C
No
Flame retardant according to IEC 60332-3-25 Cat D
No
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Número de camadas de bainhas
-
With rip cord
No
Suitable for use as security alarm cable
No
Duplex
No
Circuit integrity according to DIN 4102-12
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Cable type according to BS 4737-3.30
-
Rip cord colour according to BS 4737-3.30
-
Compliant with BT British Telecom specification
-
Brands
Legrand
