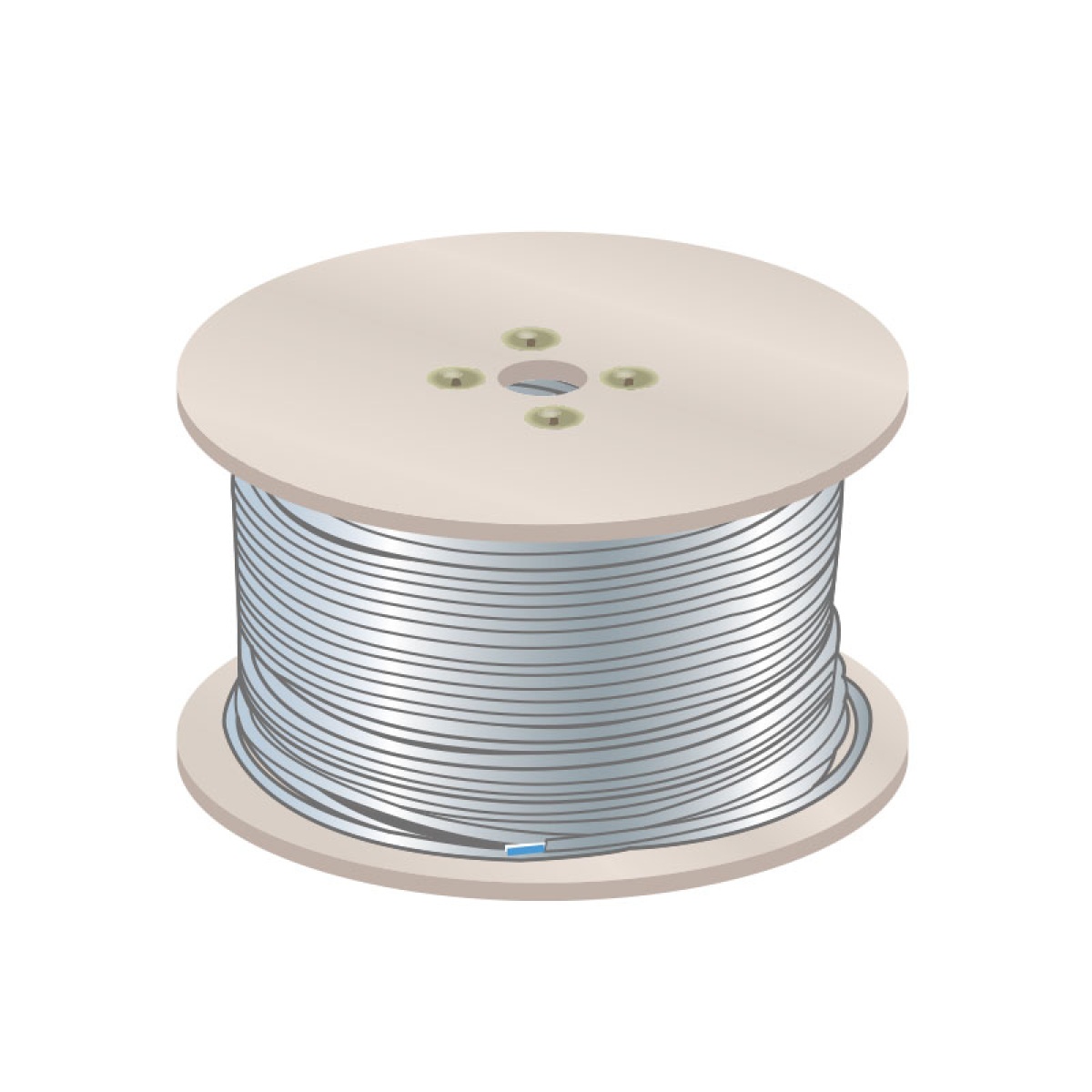

CABO LIVRE HALOGEN
Data and Communication Cable (Copper)
CABO LIVRE HALOGEN
Manufacturer Ref:
049272
Nortécnica Ref:
EAN:
3414971327986
Description
Technical Information
Attributes
EF000024
No
Secção nominal do condutor
0.56
Material core insulation
Other
Core identification
Colour
Cable type
-
Peso
-
Drain wire
-
Tensão nominal U
-
Stranding element
Pairs
Colour outer sheath
White
Category
None
Diâmetro do condutor
7.3
Conductor material
-
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Impedância caraterística
-
Conductor category
Class 5 = flexible
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
-15
70
Permitted cable outer temperature after assembling without vibration
-15
70
Número de elementos de fiação
1
Protective sheath
None
Número de núcleos
2
Suitable for underground installation
No
Halogen free according to EN IEC 60754-2
Yes
Largura aproximada do cabo
-
Altura aproximada do cabo
-
Low smoke according to EN IEC 61034-2
Yes
Stranding
Bundle
Diâmetro externo aprox.
7.3
With rodent protection
-
Valor NVP
-
Oil resistant according to EN IEC 60811-404
No
Conductor surface
Bare
Longitudinal water blocking cable
No
Radial water blocking cable
No
Reactiontofire according to EN 135016 Class
Cca
Reactiontofire according to EN 135016 Smoke production
s1b
Reactiontofire according to EN 135016 Flaming dropletsparticles
d1
Reactiontofire according to EN 135016 Acidity
a1
AWG size
20
Raio mín. de curvatura permitido, aplicação móvel com orientação forçada
-
Raio mín. de curvatura permitido, aplicação móvelmovimento livre
-
Raio mín. de curvatura permitido, aplicação estáticainstalação permanente
-
Specification core insulation
Other
Specification material outer sheath
Polyethylene (PE)
Material armouring
-
Cable geometry
-
Core identification according to HD 308 S2
-
Suitable as telephone cable
-
Suitable as computer data cable
-
Suitable as signalling cable
-
Certified for shipboard application
-
Tensão máxima de instalação
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 Cat A FR
-
Flame retardant according to IEC 60332-3-22 Cat A
-
Flame retardant according to IEC 60332-3-23 Cat B
-
Flame retardant according to IEC 60332-3-24 Cat C
-
Flame retardant according to IEC 60332-3-25 Cat D
-
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
-
Circuit integrity according to IEC 60331-23
-
Número de camadas de bainhas
-
With rip cord
-
Suitable for use as security alarm cable
-
Duplex
-
Circuit integrity according to DIN 4102-12
-
Compatible with Grade2TV according to XP-C 90-483
-
Compatible with Grade3TV according to XP-C 90-483
-
Cable type according to BS 4737-3.30
-
Rip cord colour according to BS 4737-3.30
-
Compliant with BT British Telecom specification
-
Brands
Legrand
