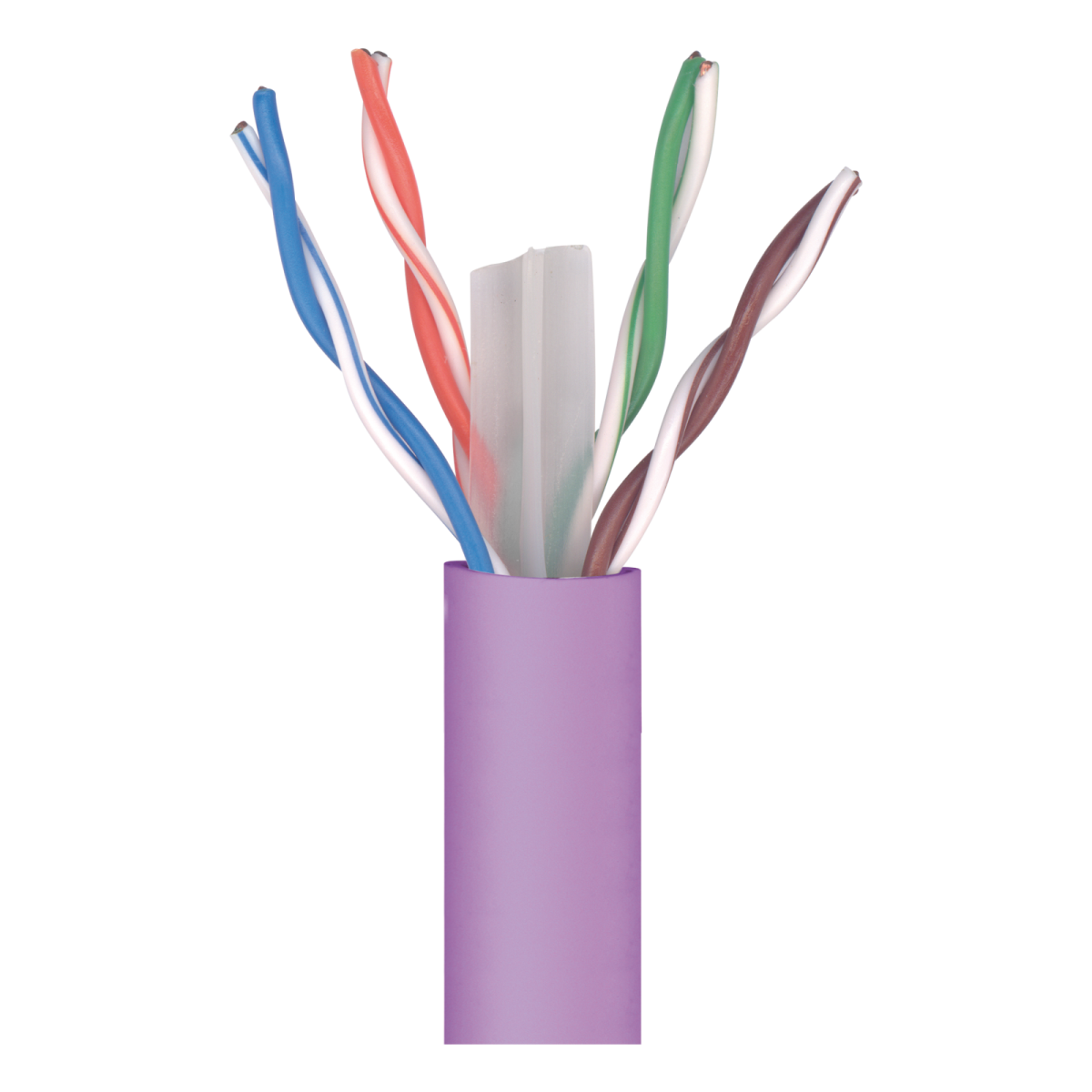

DK6000 data cable UUTP Cat 6 Dca LSFH 23AWG
Data and Communication Cable (Copper)
DK6000 data cable UUTP Cat 6 Dca LSFH 23AWG
Manufacturer Ref:
2123
Nortécnica Ref:
262123
EAN:
8424450140789
Description
Technical Information
Attributes
EF000024
No
Secção nominal do condutor
-
Material core insulation
-
Core identification
Colour
Peso
-
Flame retardant
EV009948
Integridade do circuito
-
Stranding element
Pairs
Colour outer sheath
Purple
Category
6
Diâmetro do condutor
0.55
Conductor material
Copper
Screen over stranding element
None
Screen over stranding
None
Material outer sheath
Other
Conductor category
Class 1 = solid
Armouringreinforcement
-
Permitted cable outer temperature during assemblinghandling
-25
70
Permitted cable outer temperature after assembling without vibration
-25
70
Número de elementos de fiação
4
Protective sheath
-
Número de núcleos
8
Suitable for underground installation
-
Halogen free according to EN IEC 60754-2
Yes
EF003794
-
Low smoke according to EN IEC 61034-2
Yes
Stranding
-
Diâmetro externo aprox.
-
EF008027
Yes
Valor NVP
72
EF009769
Yes
Oil resistant according to EN IEC 60811-404
-
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
-
Radial water blocking cable
-
Reactiontofire according to EN 135016 Class
Dca
Reactiontofire according to EN 135016 Smoke production
s2
Reactiontofire according to EN 135016 Flaming dropletsparticles
d2
Reactiontofire according to EN 135016 Acidity
a1
AWG size
23
Raio mín. de curvatura permitido, aplicação móvel com orientação forçada
-
Raio mín. de curvatura permitido, aplicação móvelmovimento livre
-
Raio mín. de curvatura permitido, aplicação estáticainstalação permanente
-
Specification core insulation
Polyethylene (PE)
Specification material outer sheath
-
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
-
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
-
Certified for shipboard application
-
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Compatible with Grade2TV according to XP-C 90-483
-
Compatible with Grade3TV according to XP-C 90-483
-
